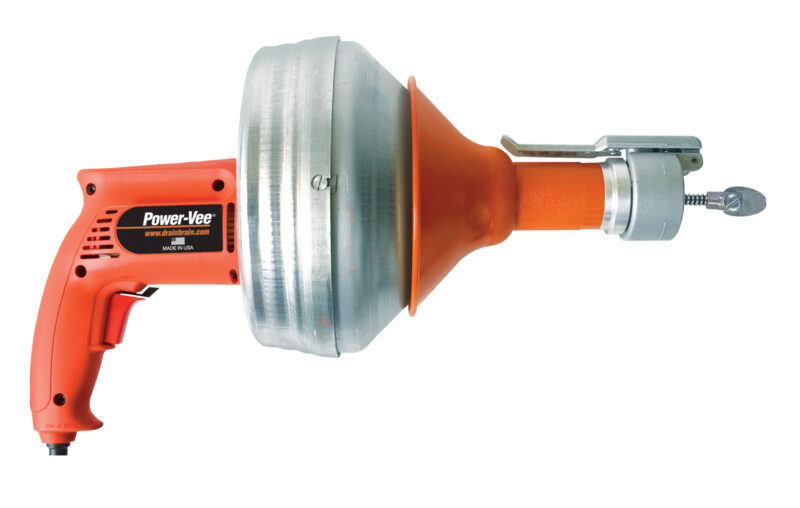

Power-Vee^®

Automatic Feed - Faster and Easier

Clearing clogged sink, tub and laundry drains is easier with the Power-Vee drain cleaning machine with automatic feed. We’ve miniaturized our big machine power cable feed and put it on the Super-Vee to give you feeding speed and convenience you haven’t seen before in a hand-held power drain cleaner.

It’s a real labor-saver in tight or awkward places. It’s like having an extra hand. To feed the cable just start the Power-Vee and squeeze the feed lever; to retract it, reverse the motor and squeeze the lever. The feed handles 1/4″, 5/16″ and 3/8″ cables. No adjustment, disassembly, or additional parts required.

Quick Change Cable Cartridges make it easy to switch to different diameter drain cables. You just loosen three screws, pull the front of the drum off and load another cartridge. Changing takes less than a minute and turns what could be a messy job into a clean one. The machine holds 50 ft. of 1/4” or 5/16”, or 35 ft. of 3/8” Flexicore cables.

The Power-Vee also comes with the new Band-It™ splashguard to minimize excess water spray from the spinning drum.

Our Dyna-Thrust™ bearing system helps carry the weight of the drum, significantly reducing wear on the motor shaft bearing and extending the life of the tool. Also adding to the Power-Vee’s durability is the heavy-gauge stamped aluminum drum. Of course the cables are Flexicore® – with an integral wire rope center. Nobody makes cables like General.

Looking for Product Resources?

Instructions Literature Parts & Diagrams Video

Features

For sinks, tubs and laundry drains
Power cable feed drives and retracts cables at up to 16 feet per minute.
Feed handles 1/4″, 5/16″ and 3/8″ cables. No adjustment or parts required.
Quick-change cartridge makes switching cables clean and easy.
Unique Dyna-Thrust™ bearing system for longer tool life.

Band-It™ splashguard minimizes excess water spray from the spinning drum.
Holds 50 ft. of 1/4″ or 5/16″, or 35 ft. of 3/8″ Flexicore® cable.
Flexicore wire rope center cables have unequalled strength yet the right amount of flexibility.
Built Here. Backed Here.

Automatic Feed and Cartridge Refill Cables

To switch to a different diameter cable (or even connect two 3/8” cables together), you just loosen three screws, pull the front of the drum off the cable, and load another cartridge. Changing takes less than a minute and turns what could be a messy job into a clean one. The tough plastic cartridges are so inexpensive, you’ll probably want to store all of your cables in them.

Flexicore^® Cable

Heavy gauge wire is coiled around 49 strand wire rope and then heat treated. This cable has unequalled strength and the right amount of flexibility. It’s so tough, it has a one year warranty against defect or breakage.

Flexicore^®Patent Nos. 2,244,735 and 2,849,870

Learn More

Options

Down Head Fitting

All-purpose Down Head Fitting. Can be used with all standard HECS cutters.

Catalog #: DHF

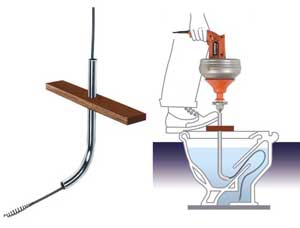

Closet Auger Attachment

Closet Auger Attachment Guides 1/4″ or 5/16″ cable into bowl.

Catalog #: CAA

Carrying Case

Carrying Case for Super-Vee, Power-Vee and Handylectric

Catalog #: MCC

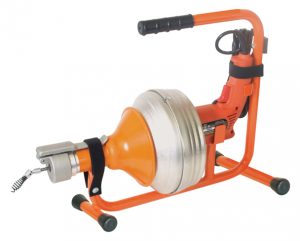

Handy-Stand^™

The rugged Handy-Stand turns General’s popular and reliable hand-held drain cleaners into practical countertop or floor machines. Ergonomically balanced for maximum stability, the lightweight portable Handy-Stand fits the Super-Vee^®, Power-Vee^®, and Handylectric^®, All three models are ideal for unclogging sinks, tubs, and laundry drains.

The convenient Handy-Stand makes it easier for you to carry your hand-held machine to and from the job site. The lift handle doubles as a spare cartridge holder and protects your machine from damage. On the job, the Handy-Stand can be positioned either horizontally or vertically for maximum flexibility.

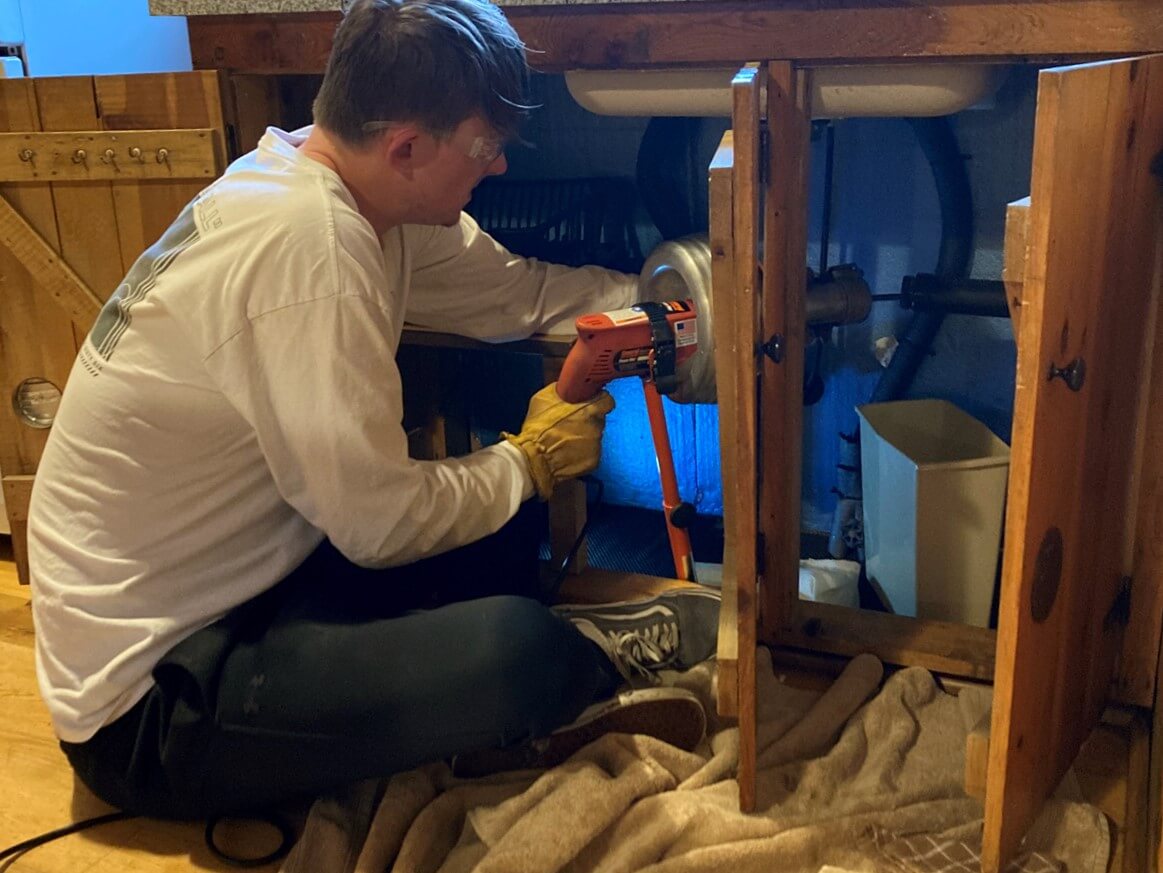

Uni-Stand^™

Save your arms and make drain cleaning easier with General’s new Uni-Stand! It securely supports your hand-held drain cleaner when you’re working in tight spaces like under sinks and kitchen cabinets. Just slide the adjustable clamp around the motor housing – and lock it into place for safe, solid support. Adjust the length of the Uni-Stand leg to the height desired. Then rock your machine back and forth as you feed the cable into the line.

Uni-Stand snuggly fits General’s popular Super-Vee^®, Power-Vee^®, and Handylectric^® hand-held drain cleaners. All three are ideal for unclogging small diameter lines in sinks, tubs, and laundry drains. Uni-Stand works with many competitive machines, too!

Snake-Oil Classic^™

Snake-Oil Classic^™ preserves and protects sewer cables against rust and corrosion. It’s better than common lubricants because its special rust inhibitor cuts through moisture and replaces it with a rust-resistant coating. You’ll significantly extend the life of your cables and sewer machine, including the drum, bearings and power cable feed rollers. Snake Oil Classic also includes a deodorizer to give equipment a fresh, clean smell. Available in quarts or gallons.

Snake-Oil Classic^™ SDS – Material Safety Data Sheet

ClogChopper^®

Rip through tough stoppages with the unique ClogChopper^® multi-function cutting tools. Six self-sharpening blades dig into encrusted debris and root masses, easily grinding up stoppages, scale, and crystallized urine, without risking pipe damage.

The spherical design maneuvers around tight bends and traps, thoroughly and safely cleaning metal, plastic, and clay pipes. As it spins it also self-sharpens as it scrapes along the pipe walls. It’s excellent for clearing stacks, downspouts, mains, as well as for drain lining jobs.

Model DRZ-PH™

JM-1450

Cutter Sets

Cutters Set

Arrow Head Starting Drill

Catalog #AH

Starting Drill (Gets water flowing)

Boring Gimlet

Catalog #BG

For removing loose objects

Down Head Boring Drill

Catalog #DHBG

For removing loose objects
(Goes down waste, not up stack)

Flexible Spring Arrow Head Cutter Starting Drill

Catalog #FAH

(For sharp turns and small lines)

1-1/4″ Side Cutter Blade (2-piece set)

Catalog #1-1/4 SCB

For cutting and scraping

Models

BOLD indicates best-selling units.

Power-Vee Units – Complete and ready to Operate

Catalog #	Item #	Description	Weight
PV-A-WC	101030	Power-Vee with carrying case, 25HE1-DH (25 ft. x 1/4″), 25HE2 (25 ft. x 3/8″) cables, HECS cutter set and cartridges.	33 lbs
PV-B-WC	101050	Power-Vee with carrying case, 25HE1-DH (25 ft. x 1/4″), 35HE2 (35 ft. x 3/8″) cables, HECS cutter set and cartridges.	36 lbs
PV-C-WC	101070	Power-Vee with carrying case, 50HE1-DH (50 ft. x 1/4″), 35HE2 (35 ft. x 3/8″) cables, HECS cutter set and cartridges.	39 lbs
PV-D	101080	Power-Vee with 25HE1-A-DH (25 ft. x 5/16″) cable.	16 lbs
PV-D-WC	101090	Power-Vee with carrying case and 25HE1-A-DH (25 ft. x 5/16″) cable.	27 lbs
PV-F	101120	Power-Vee with 25HE1-DH (25 ft. x 1/4″) cable.	15 lbs
PV-F-WC	101130	Power-Vee with carrying case and 25HE1-DH (25 ft. x 1/4″) cable.	26 lbs
HS-PV-D	101930	Power-Vee with Handy-Stand and 25HE1-A-DH (25 ft. x 5/16″) cable.	35.5 lbs
HS-PV-F	133030	Power-Vee with Handy-Stand and 25HE1-DH (25 ft. x 1/4″) cable.	33 lbs

Cutter Set

Catalog #	Item #	Description	Weight
HECS	130010	Handylectric Cutter Set (Includes Arrow head, Flexible Arrow Head, 1-1/4″ Side Cutter Blade, Boring Gimlet, & Down Head Boring Gimlet)	.5 lbs

Replacement Cables

Catalog #	Item #	Description	Weight
25HE1	120010	Flexicore Cable, 1/4″ x 25 ft. with EL Basin Head	4 lbs
50HE1	120020	Flexicore Cable, 1/4″ x 50 ft. with EL Basin Head	8 lbs
25HE1-DH	120030	Flexicore Cable, 1/4″ x 25 ft. with Down Head	5 lbs
50HE1-DH	120040	Flexicore Cable, 1/4″ x 50 ft. with Down Head	9 lbs
25HE1-DDH	120050	Flexicore Cable, 1/4″ x 25 ft. with Double Down Head	5 lbs
50HE1-DDH	120060	Flexicore Cable, 1/4″ x 50 ft. with Double Down Head	9 lbs
25HE1A	120070	Flexicore Cable, 5/16″ x 25 ft. with EL Basin Head	6 lbs
50HE1A	120080	Flexicore Cable, 5/16″ x 50 ft. with EL Basin Head	12 lbs
25HE1-A-DH	120090	Flexicore Cable, 5/16″ x 25 ft. with Down Head	6 lbs
50HE1-A-DH	120100	Flexicore Cable, 5/16″ x 50 ft. with Down Head	12 lbs
25HE1-AC	120110	Flexicore Cable, 5/16″ x 25 ft. with Female Connector	6 lbs
50HE1-AC	120130	Flexicore Cable, 5/16″ x 50 ft. with Female Connector	12 lbs
25HE2	120160	Flexicore Cable, 3/8″ x 25 ft. with Female Connector	7 lbs
35HE2	120170	Flexicore Cable, 3/8″ x 35 ft. with Female Connector	10 lbs

Parts & Accessories

Catalog #	Item #	Description	Weight
BNDT	140840	Band-It™ Splashguard	–
MCC	133010	Carrying Case	9 lbs
HST	133030	Handy-Stand	6 lbs
UNS	133050	Uni-Stand	1.5 lbs
CAA	133020	Closet Auger Attachment	1 lbs
PV-703-2	141992	Set of Feed Roller Assemblies for Power-Vee	–
PV-31-3	136090	Trigger Switch for Skil #6355-GWS	–
1CG	128800	1″ ClogChopper for use with 3/8″ Flexicore cables	1 lbs
1-1/2CG	128810	1-1/2″ ClogChopper for use with 3/8″ Flexicore cable	1 lbs
2CG	128820	2” ClogChopper	1 lbs
SOQ	440120	1 Quart Snake-Oil Classic	2 lbs
SOG	440150	1 Gallon Snake-Oil Classic	7.5 lbs

Specifications

Motor:
All ball-bearing, double-insulated, reversible motor with variable speed control; 0 – 500 rpm.

Drum:
Heavy gauge stamped aluminum with inner drum to prevent cable tangling.

Capacity:
50 ft. of 1/4″ or 5/16″ cable; 35 ft. of 3/8″ cable. All cables are left hand wound and reinforced with a wire rope center.

Cutter Set:
Arrow Head, Boring Gimlet, Down Head Boring Gimlet, 1-1/4″ Side Cutter Blade, Flexible Arrow Head Cutter.

Cable Cartridges:
Light weight, impact resistant plastic.

Power Feed:
Feeds 3/8″ cable at 16 feet per minute.
