The toughest tools down the line.™

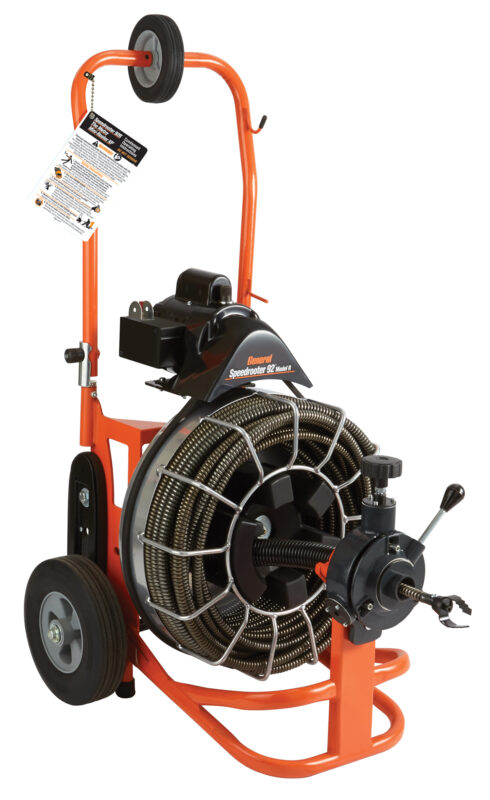

Speedrooter 92R® – Rental

With Automatic Feed

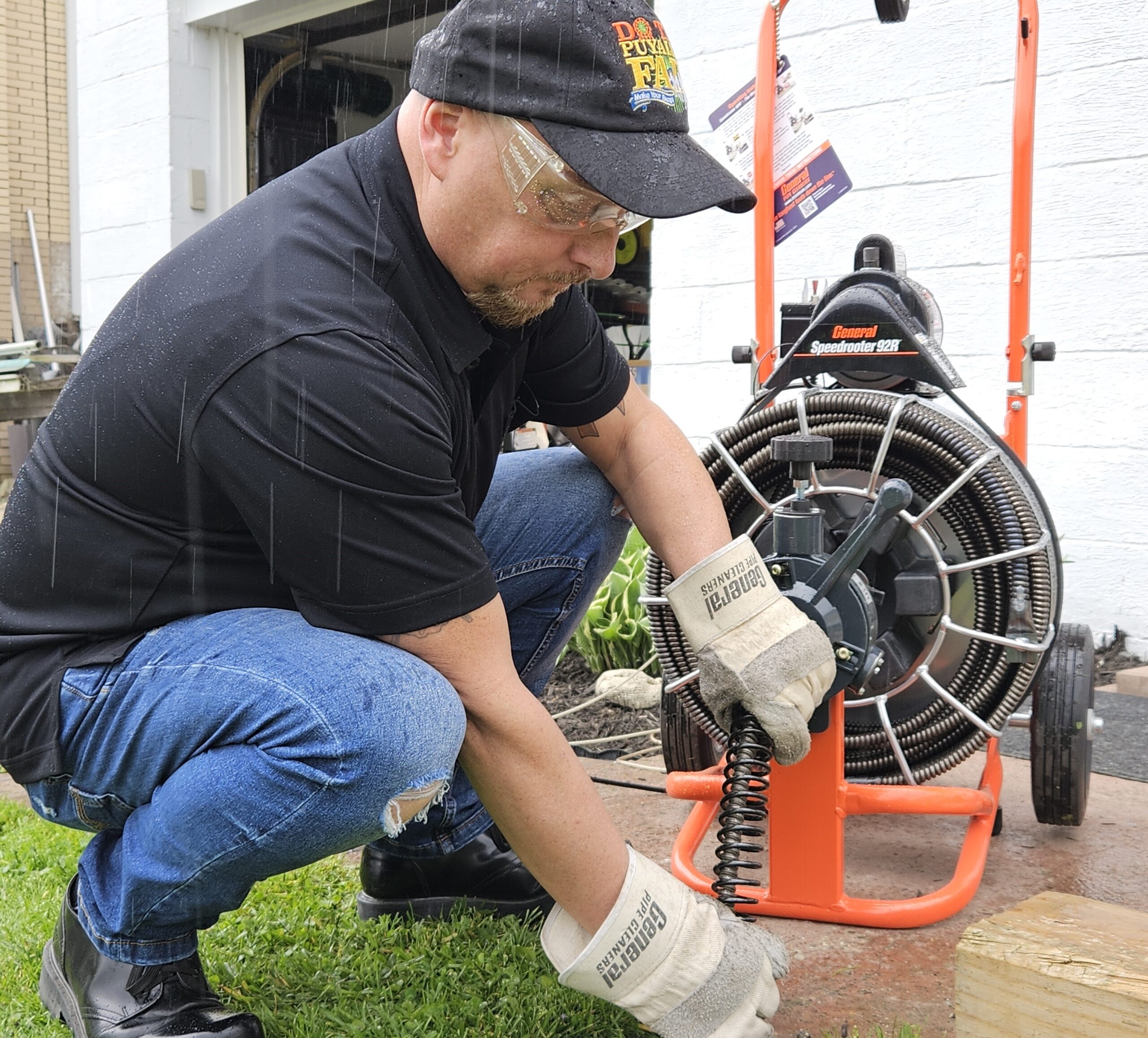

The Speedrooter 92R with power cable feed makes the job of drain cleaning easier, faster and cleaner for your rental customers. Instead of wrestling with a manual snake in and out of the line, the power cable feed drives the cable into the line at up to 20 feet per minute. Put the feed in reverse and it retracts the cable easily too. Some cables weigh up to 100 lbs. so this is a real labor savor.

The power cable feed and guide tube combination allows the cable to feed smoothly into the line while keeping your customer’s hands clean and away from the spinning cable.

The Speedrooter drain cleaning machine is job tested tough. Built for rental abuse, the frame is braced at key stress points. And General’s exclusive Flexicore® wire rope center cable is that’s so tough it carries a one year warranty. The Speedrooter can really take a beating.

Looking for Product Resources?

Features

  • Clears tree roots and tough stoppages in 3″ to 10″ drains.
  • Open cage holds 100 ft. of 3/4″ or 5/8″ Flexicore®
  • Open cage lets you see cable condition after each rental.
  • Variable speed Power Cable Feed easily drives and retrieves cable at up to 20 ft/min.
  • Guide tube reduces cable drag and keeps hands off of rotating cable.
  • Features stair climbers, 10″ heavy-duty ball bearing wheels, truck loading wheel, and tool box.
  • 1/3 hp motor with momentary contact reverse switch.
  • Folding handle makes the machine more compact when loading it into a vehicle.
  • Built Here. Backed Here.

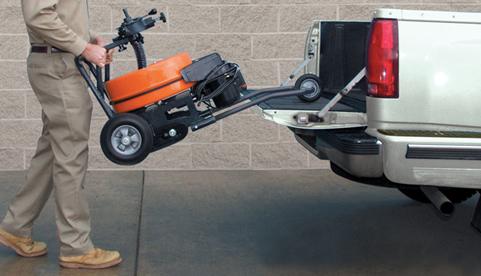

Truck Loading

One person easily loads the Speedrooter 92 onto a truck. The swept-back handle and loading wheel give you the needed leverage.

Portability, Convenience and Safety

Equipped with 10″ heavy-duty wheels, stair climbers, tool box and ground fault circuit interpreter.

V-belt Stair Climbers

V-belt stair climbers like the ones used to move heavy furniture and appliances let you take the Speedrooter 92R up a flight of stairs yourself.

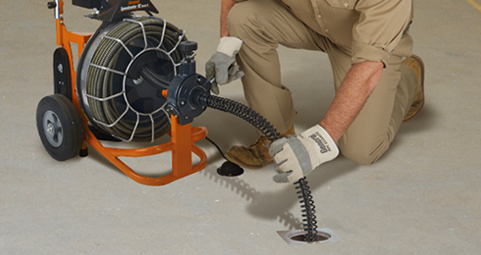

Guide Tube

Greatly increases the efficiency of power cable feed by reducing cable whipping and drag. Keeps your hands off of the spinning cable. Tube is 30” long. Five foot extensions are made of rigid conduit with a flexible spring end.

Reverse Switch

A momentary contact reverse switch protects the cable by preventing the operator from running the machine in reverse for more than a few seconds at a time.

Flexicore® Cable

Heavy gauge wire is coiled around 49 strand wire rope and then heat treated. This cable has unequalled strength and the right amount of flexibility. It’s so tough, it has a one year warranty against defect or breakage.

Options

Snake-Oil Classic

A great way to extend the life of drain cleaning tools & equipment

Snake-Oil Classic preserves and protects sewer cables against rust and corrosion. It’s better than common lubricants because its special rust inhibitor cuts through moisture and replaces it with a rust-resistant coating. You’ll significantly extend the life of your cables and sewer machine, including the drum, bearings and power cable feed rollers. Snake Oil Classic also includes a deodorizer to give equipment a fresh, clean smell. Available in quarts or gallons.

Snake-Oil Classic SDS – Material Safety Data Sheet

Quick-Fix

General Pipe Cleaners’ Quick-Fix let’s you quickly repair broken drain snakes in the field. The unique Quick-Fix let’s you continue working and finish the job without having to go back to your shop to repair or replace a broken cable. The Quick-Fix is available in 1/2”, 9/16”, 5/8”, and 3/4” sizes with female or male connectors.

The specially designed spring with a pre-welded female connecter is easy to attach in the field. Prepare your broken snake by cutting off the damaged or kinked end of the cable with bolt cutters or a hack saw. Then simply thread the Quick-Fix over the broken snake. No welder is required! All you need are vice-grips or a pair of pliers. Once it’s on, the Quick-Fix holds on so tightly that it simply cannot be removed, even if you wanted to.

ClogChopper®

Rip through tough stoppages with the unique ClogChopper® multi-function cutting tools. Six self-sharpening blades dig into encrusted debris and root masses, easily grinding up stoppages, scale, and crystallized urine, without risking pipe damage.

The spherical design maneuvers around tight bends and traps, thoroughly and safely cleaning metal, plastic, and clay pipes. As it spins it also self-sharpens as it scrapes along the pipe walls. It’s excellent for clearing stacks, downspouts, mains, as well as for drain lining jobs.

Related Products

Easy Rooter® – Rental

Gen-Eye X-POD Plus®

Cutter Set

Spear Head

Catalog #SHD

Starting Drill (Gets water flowing)

2″ U-Cutter

Catalog #2UC

For cutting and scraping

3″ Heavy Duty Side Cutter

Catalog #3HDSC

For cutting and scraping

3″ Heavy Duty Saw Blade

Catalog #3HDB

For roots and other stoppages

Large Retrieving Tool

Catalog #RTR-2

For removing loose objects and broken cables

BOLD indicates best-selling units.

Speedrooter 92R Units for the Rental Industry – Complete and ready to Operate

Catalog # Item # Description Weight
P-S92-C-O 108630 Speedrooter 92R with 100EM5 (100 ft. x 3/4”) Cable, Power Cable Feed, Guide Tube, and SRCS-R Cutter Set 242 lbs
P-S92-E-O 108640 Speedrooter 92R with 100EM4 (100 ft. x 5/8”) Cable, Power Cable Feed, Guide Tube, and SRCS-R Cutter Set 220 lbs

Cutter Set

Catalog # Item # Description Weight
SRCS-R 130080 Senior Rental Cutter Set (Includes Spear Head, 2″ U-Cutter, 3″ Heavy-Duty Side Cutter, 3″ Heavy Duty Saw Blade, Large Retieving Tool) 2 lbs

Replacement Cables

Catalog # Item # Description Weight
25EM4 122010 Flexicore Cable, 5/8″ x 25 ft. with Male & Female Connectors 20 lbs
50EM4 122030 Flexicore Cable, 5/8″ x 50 ft. with Male & Female Connectors 41 lbs
75EM4 122030 Flexicore Cable, 5/8″ x 75 ft. with Male & Female Connectors 61 lbs
100EM4 122040 Flexicore Cable, 5/8″ x 100 ft. with Male & Female Connectors 80 lbs
25EM5 122050 Flexicore Cable, 3/4″ x 25 ft. with Male & Female Connectors 25 lbs
50EM5 122060 Flexicore Cable, 3/4″ x 50 ft. with Male & Female Connectors 51 lbs
75EM5 122070 Flexicore Cable, 3/4″ x 75 ft. with Male & Female Connectors 74 lbs
100EM5 122080 Flexicore Cable, 3/4″ x 100 ft. with Male & Female Connectors 101 lbs

Parts & Accessories

Catalog # Item # Description Weight
S92-450-R 170620 Large Cage for 5/8″ & 3/4″ Cables 25 lbs
S92-7000 170940 Speedrooter Power Cable Feed & Guide Tube 13 lbs
S92-GT 156006 Guide Tube for Speedrooter 5 lbs
GTE 146160 Guide Tube Extension 3 lbs
S92-605-B 136070 Foot Pedal with Hose
S92-605-E 136080 Power Switch Diaphragm
S92-605-G-R 136210 Momentary Contact Reverse Switch
GFI-20 136000 Ground Fault Circuit Interrupter with 20 ft. cord 2 lbs
LG 130410 Leather Gloves 1 lb
PO-703 136110 Set of feed rollers (3) for Power Cable Feed
2CG 128820 2” ClogChopper 1 lb
2-1/2CG 128830 2-1/2” ClogChopper 1 lb
3CG 128880 3” ClogChopper 2 lbs
4CG 128890 4” ClogChopper 3 lbs
5/8QF 130860 5/8” Quick-Fix 1 lb
3/4QF 130870 3/4” Quick-Fix 1 lb
SOQ 440120 1 Quart Snake-Oil Classic 2 lbs
SOG 440150 1 Gallon Snake-Oil Classic 7.5 lbs

Weight:
115 lbs. (52 kg) without cable

Dimensions:
26” deep, 22” wide, 41” high (66 cm x 56 cm 104 cm)

Drum:
Drum holds 100 ft x 3/4” or 5/8” cable (30 m x 19 mm or 17 mm).

Drum Removal:
Loosen two knobs, remove ringbolt, and lift off.

Motor:
1/3 hp heavy duty, capacitor start, thermal overload protection, Forward/Off/Momentary Contact Reverse Switch.

Foot Switch:
Pneumatic, with no electrical contact between pedal and motor.

Power Cable Feed:
Drives and retracts at variable speeds of up to 20 ft. per minute.

Cable Guide Tube:
Keeps operators hands clean and off spinning cable. 5 ft. extensions available.

Wheels:
10” Heavy-duty wheels with roller bearings.

Stair Climbers:
Heavy-duty V-belts running on nylon rollers.

Passive Wheel Brake:
Keeps machine in place on the job or in the truck.

Folding Handle:
Tall enough to make it easy to move to the job, yet quickly folds to take less room in vehicle.

Truck Loading Wheel:
Enables one person to lift machine onto bed of truck.

Tool Box:
Attached to rear of machine. Holds all cutters.

Leather Gloves:
With double-reinforced palm for hand protection when guiding cable.

Cables:
Left wound Flexicore® wire rope center 3/4” diameter for 4” to 10” lines and 3” lines without sharp bends; 5/8” diameter for 3” to 6” lines.

Cutters:
SRCS-R Cutter Set for 5/8” and 3/4” cables
SHD Spear Head
2UC 2” U-Cutter
3HDSC 3” Heavy Duty Side Cutter
3HDB 3” Heavy Duty Saw Blade
RTR-2 Large Retrieving Tool

Instructional Video included.
