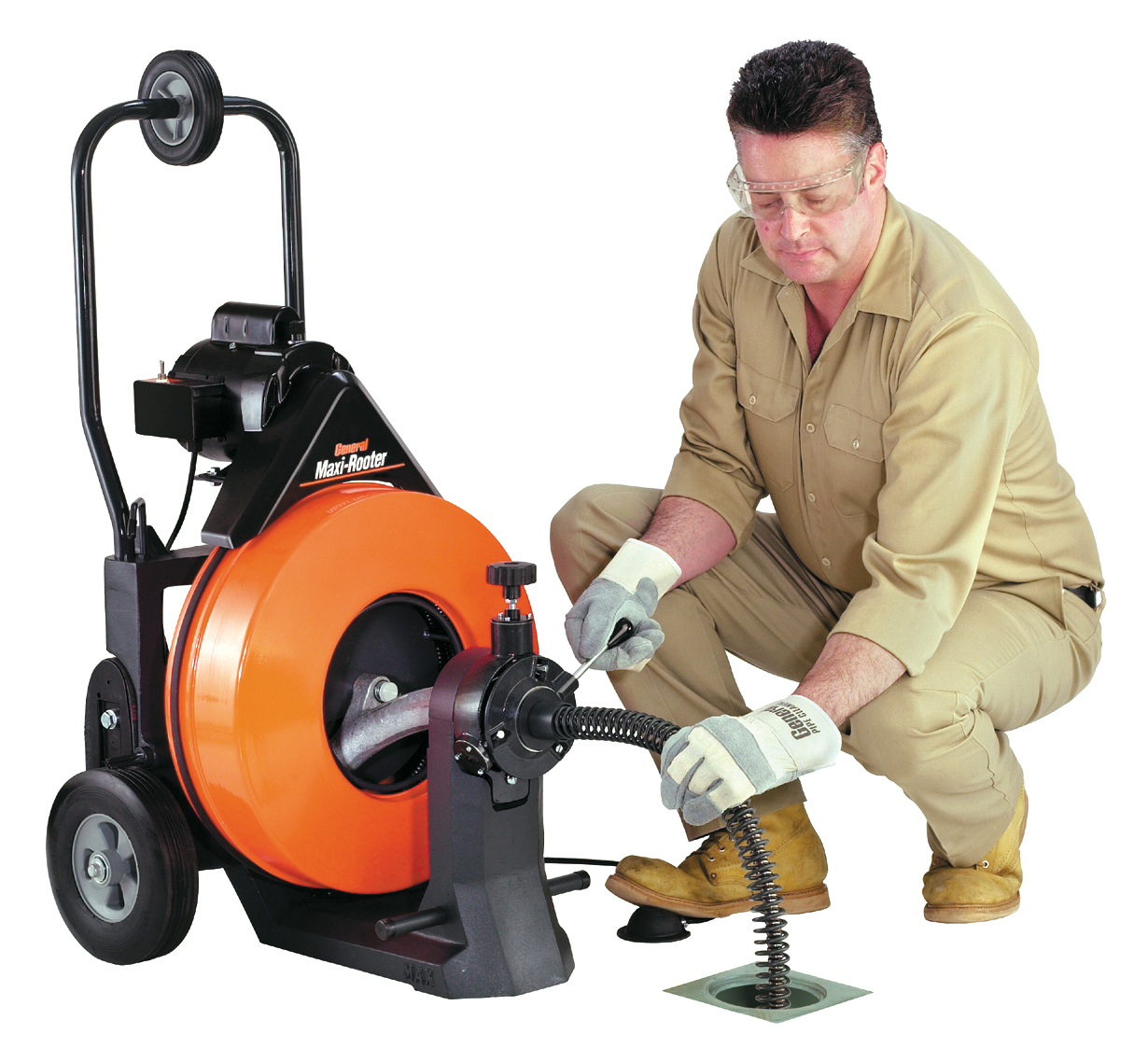

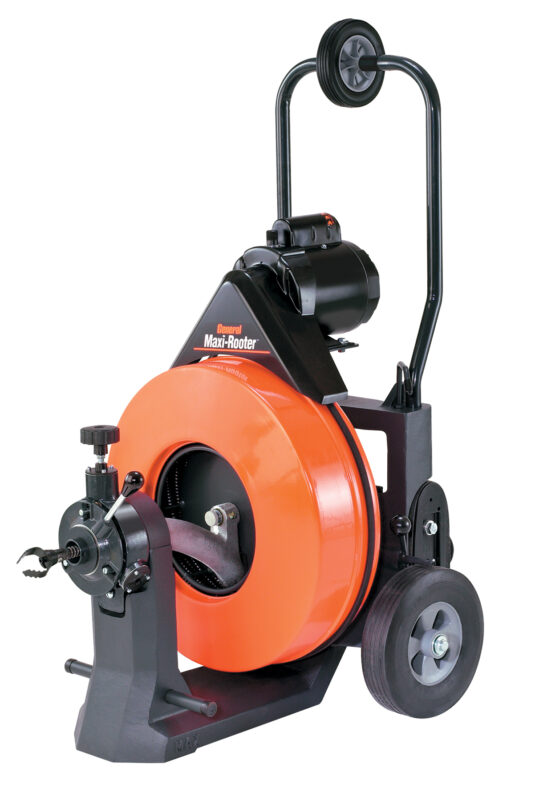

Maxi-Rooter^®

Root Cutting Power — Big Capacity

Look at the portability that goes with that power and capacity. The Maxi-Rooter rolls on 10″ ball bearing semi- pneumatic wheels and has V-belt stair climbers for easier transport up and down stairs.

A truck loading wheel mounted on the handle is almost like having another person helping you when you lift the machine into a truck. In addition, we’ve made it easy for you to remove the drum if you should want to transport the Maxi-Rooter in two parts.

Another important help to you is a see-through inner drum cage so you can tell how much cable is in the drum. For electrical safety, the foot pedal is air actuated, eliminating electrical contact between pedal and motor. Equally important, a ground fault circuit interrupter senses current leakage and will shut down the machine before an operator suffers an electric shock.

Looking for Product Resources?

Instructions Literature Parts & Diagrams

Features

Clears roots and heavy stoppages in 3” to 10” lines.
Holds 125 ft. of 3/4″ and 150 ft. of 5/8″ Flexicore®
Inner drum cage prevents cable tangling.
Variable speed Power Cable Feed drives or retrieves cable at up to 20 ft./min.
Rides on 10″ heavy duty ball bearing semi-pneumatic tires.

Includes stair climbers, truck loading wheel, and built-in tool box.
Powerful 3/4 hp motor drive cable up to 200 ft. down the line.
Flexicore wire rope center cables have unequalled strength yet the right amount of flexibility.
Built Here. Backed Here.

Power Cable Feed

Maxi-Rooter’s power cable feed not only drives the cable into the line but has the pulling power to retract it, even on long, tough runs. Without reversing the cable rotation, you instantly can alter feeding speed to match the resistance in the line. Chew into stoppages as slowly as one inch per minute and retract the cable as quickly as twenty feet per minute.

Portability

The Maxi-Rooter has a surprisingly slim 23″ profile that lets you work in some very tight spots. You can get the machine through just about any door you’re likely to run into with room to spare.

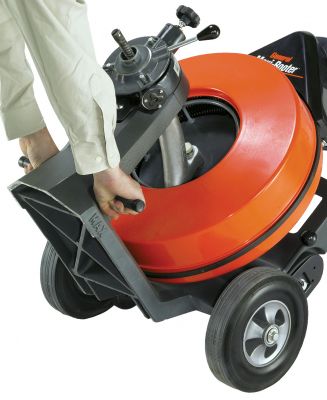

Lift Handles

For easy truck loading, tip the Maxi-Rooter on its loading wheel, then lift and slide into truck using the lift handle on front leg of machine.

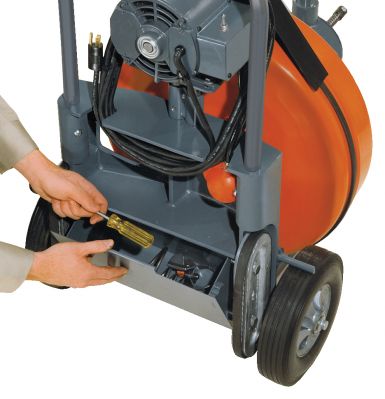

Convenient Tool Box

A tool box large enough to hold a set of cutting heads and some tools built into the back of the Maxi-Rooter.

Flexicore^® Cable

Heavy gauge wire is coiled around 49 strand wire rope and then heat treated. This cable has unequalled strength and the right amount of flexibility. It’s so tough, it has a one year warranty against defect or breakage.

Learn More

Options

Snake-Oil Classic^™

A great way to extend the life of drain cleaning tools & equipment

Snake-Oil Classic^™ preserves and protects sewer cables against rust and corrosion. It’s better than common lubricants because its special rust inhibitor cuts through moisture and replaces it with a rust-resistant coating. You’ll significantly extend the life of your cables and sewer machine, including the drum, bearings and power cable feed rollers. Snake Oil Classic also includes a deodorizer to give equipment a fresh, clean smell. Available in quarts or gallons.

Snake-Oil Classic^™ SDS – Material Safety Data Sheet

Quick-Fix^™

General Pipe Cleaners’ Quick-Fix^™ let’s you quickly repair broken drain snakes in the field. The unique Quick-Fix let’s you continue working and finish the job without having to go back to your shop to repair or replace a broken cable. The Quick-Fix is available in 1/2”, 9/16”, 5/8”, and 3/4” sizes with female or male connectors.

The pre-welded spring connector attaches easily in the field. Cut off the damaged cable end, thread the Quick-Fix on, and secure it with pliers or vice-grips—no welding needed! Once attached, it grips so tightly it won’t come off.

ClogChopper^®

Rip through tough stoppages with the unique ClogChopper^® multi-function cutting tools. Six self-sharpening blades dig into encrusted debris and root masses, easily grinding up stoppages, scale, and crystallized urine, without risking pipe damage.

The spherical design maneuvers around tight bends and traps, thoroughly and safely cleaning metal, plastic, and clay pipes. As it spins it also self-sharpens as it scrapes along the pipe walls. It’s excellent for clearing stacks, downspouts, mains, as well as for drain lining jobs.

Speedrooter XL®

Flexi-Rooter®

Cutter Sets

Cutter Set

Spear Head Starting Drill

Catalog #SHD

Starting Drill (gets water flowing)

3″ & 4″ Side Cutter Blades

Catalog #3SCB/4SCB

For cutting and scraping

2″ U-Cutter

Catalog #2UC

For cutting and sawing

3″ Heavy Duty Saw Blade

Catalog #3HDB

For roots and other stoppages

4″ Rotary Saw Blades

Catalog #4RSB

For roots and other stoppages

Large Retrieving Tool

Catalog #RTR-2

For removing loose objects and broken cables

26″ Flexible Leader

Catalog #LE-3

Helps cable get around tight bends and traps

Models

BOLD indicates best-selling units.

Maxi-Rooter Units – Complete and Ready to Operate

Catalog #	Item #	Description	Weight
P-MX-A	106160	Maxi-Rooter with 100EM5 (100 ft. x 3/4”) Cable, Power Cable Feed, Guide Tube, and SRCS Cutter Set	268 lbs
P-MX-B	106170	Maxi-Rooter with 100EM4 (100 ft. x 5/8”) Cable, Power Cable Feed, Guide Tube, and SRCS Cutter Set	243 lbs
P-MX-D	106190	Maxi-Rooter with 100EM5 (100 ft. x 3/4”) and 25EM5 (25 x 3/4″) Cable, Power Cable Feed, Guide Tube, and SRCS Cutter Set	293 lbs
P-MX-E	106200	Maxi-Rooter with 100EM4 (100 ft. x 5/8”) and 50EM4 (50 ft. x 5/8”) Cable, Power Cable Feed, Guide Tube, and SRCS Cutter Set	288 lbs

Parts & Accessories

Catalog #	Item #	Description	Weight
MX-401	175400	Maxi-Rooter Drum	30 lbs
PO-MX	175600	Maxi-Rooter Power Cable Feed & Guide Tube	7 lbs
MX-GT	154630	Guide Tube for Maxi-Rooter (Cannot be used without Power Cable Feed)	5 lbs
GTE	146160	Guide Tube Extension	2 lbs
MX-605-B	136070	Foot Pedal with Hose	–
MX-605-E	136080	Power Switch Diaphragm	–
MX-605-G	136130	Reverse Switch	–
GFI-20	136000	Ground Fault Circuit Interrupter with 20 ft. cord	2 lbs
LG	130410	Leather Gloves	1 lb
PO-703	136110	Set of feed rollers (3) for Power Cable Feed	–
2CG	128820	2” ClogChopper	1 lb
2-1/2CG	128830	2-1/2” ClogChopper	1 lb
3CG	128880	3” ClogChopper	2 lbs
4CG	128890	4” ClogChopper	3 lbs
5/8QF	130860	5/8” Quick-Fix	1 lb
3/4QF	130870	3/4” Quick-Fix	1 lb
SOQ	440120	1 Quart Snake-Oil Classic	2 lbs
SOG	440150	1 Gallon Snake-Oil Classic	7.5 lbs

Specifications

Weight:
146 lbs. (67kg) without cable.

Dimensions:
27″ deep; 23″ wide; 42″ high (68 cm x 58 cm x 107 cm).

Drum:
Capacity of 129 ft. (39m) of 3/4″ or 154 ft. (46m) of 5/8″ cable.
Includes 4 ft. of drum connecting cable.

Motor:
3/4 hp heavy duty with capacitor start and forward-off-reverse switch;
20 ft. power cord with molded plug (3 wire 16 gauge) and ground fault circuit interrupter.

Load Speed:
160 rpm.

Wheels:
10” semi-pneumatic heavy duty with ball bearings.

Wheel Brake:
Locks machine in place on the job.

Foot Switch:
Pneumatic with no electrical contact between pedal and motor.

Power Cable Feed:
Variable speed feed drives and retracts cable at 0-20 ft. per minute.

Leather Gloves:
With double-reinforced palm for hand protection when guiding cables.

Cutter Set:
26″ Flexible Leader, Spear Head, 2″ U-Cutter, 3″ Side Cutter Blade, 4″ Side Cutter Blade, 3″ Heavy Duty Saw Blade, 4″ Rotary Saw Blade, and Large Retrieving Tool.

Cables:
3/4″ diameter for 4-10″ lines and 3″ lines without sharp bends. 5/8″ diameter for 3-6″ lines.

Cable Guide Tube:
Adds safety when you can’t get machine close to drain opening. 5 ft. extension attaches to cable guide tube.

Truck Loading Wheel:
Makes it easier to lift machine onto bed of truck.

Tool Box:
Can hold a full cutter set, except for leader.

Stair Climbers:
V-Belts running on nylon rollers.
