The toughest tools down the line.™

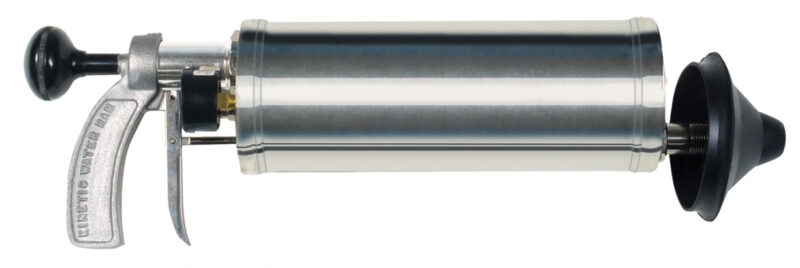

Kinetic Water Ram®

Clear Clogged Drains Fast

Don’t be fooled by imitations! Over 50 years of technical advancements make the rugged, all-metal Kinetic Water Ram® the choice for quickly clearing clogged drains. Just pump it up, insert in drain – and snap the trigger. It’s that fast.

Lightweight and economical, the futuristic Kinetic Water Ram generates a shock wave that instantly pulverizes stoppages in 1-1/4” to 4” lines – yet won’t harm pipes. Quickly clear clogged sinks, toilets and tubs of grease, hair, sediment and debris.

Environmentally friendly, the compact, portable drain cleaning tool is cleaner than snakes – and safer than chemicals. It requires no electrical power or CO2 gas.

The Kinetic Water Ram uses a burst of compressed air that drives a shock wave (kinetic energy) through water to break up the stoppage. The shock wave bypasses vents and stacks to break-up clogs. You get instant impact with no pressure build-up. The built-in pump and
pressure gauge lets you choose the right amount of force for each job.

The Kinetic Water Ram is particularly useful when the stoppage is on the far side of a drum trap or series of tight bends, since the shock wave can travel around bends without losing its force.

The sleek and easy-to-handle Kinetic Water Ram is made of durable plated metal components. The unit comes in a sturdy carrying case with molded compartments for the drain cleaning tool and accessories.

Kinetic Water Ram - Drain Cleaning Tool

Looking for Product Resources?

Features

  • Clear clogged sinks, tubs and toilets with kinetic energy.
  • Pump it up, put in drain, and snap the trigger. It’s that quick.
  • Shock wave breaks up stoppage without harming pipes.
  • Effective clearing lines with tight bends.
  • Ideal for clearing drum traps and narrow lines in trailer homes.
  • All-metal unit includes built-in pump and pressure gauge.
  • Environmentally friendly, requires no electrical power or CO2 gas.
  • Lighter weight and cleaner than cable drain cleaners.
  • Over 50 years of technical advancements.
  • Built Here. Backed Here.

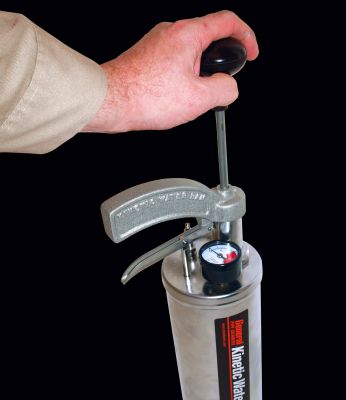

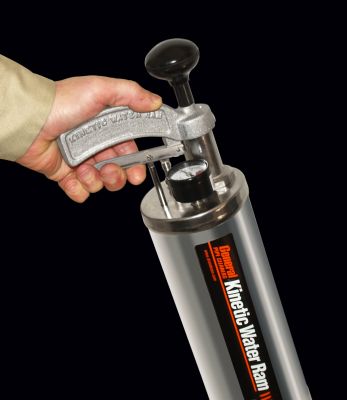

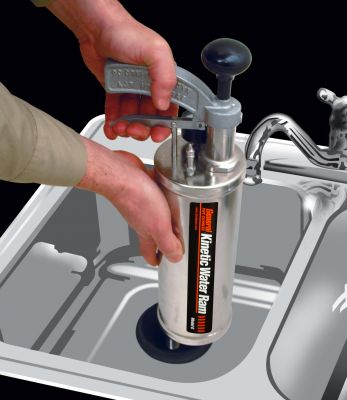

Pump Up. Insert in Drain. Snap Trigger.

The Kinetic Water Ram uses a burst of compressed air, which strikes the column of water in a clogged pipe. The resulting shock wave, called Kinetic Energy, hits the stoppage at a speed of approximately 4,700 feet per second, quickly clearing the blockage and flushing waste particles away.

This slow motion video shows an example of how the principal of kinetic energy is applied. The instant impact protects pipes and joints because there is no build-up of pressure in the plumbing system.

Kinetic Water Ram - Clears clogged drains fast

Standard Accessories

  • Set of Five Tapered Rubber Plugs
  • Caulking Hose
  • 4″ Tapered Rubber Cone

Options

Optional Accessories

  • Toilet Attachment
  • Carrying Case
  • 6″ Tapered Rubber Cone
  • 1-1/2″, 2″ 3″ and 4″ Expansion Plugs
  • Universal Faucet Adapter
  • Water Supply Hose
  • Check Valve

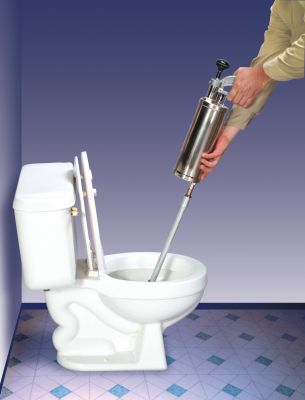

Ram Toilet Attachment

An optional toilet attachment screws onto the front of the Ram and enables you to position the cone in the bowl to get a tighter seal. As a result, you can strike the blockage with greater impact without causing splash back.

Catalog #: KR-CA

Related Products

Power-Vee®

BOLD indicates best-selling units.

Kinetic Water Ram Units – Complete and Ready to Operate

Catalog  # Item # Description Weight
KR-A 115010 Kinetic Water Ram, complete with 4″ rubber cone, five rubber plugs, and caulking hose 11 lbs
KR-A-WC 115020 Same as KR-A, plus carrying case 20 lbs
KR-C-WC 115040 Same as KR-A, plus KR-CA closet attachment and carrying case 21 lbs
KR-D-WC 115050 Same as KR-C, Less caulking hose, plus 6″ rubber cone, four expansion plugs, check valve, extension hose, water supply hose, universal faucet adapter, carrying case 27 lbs

Parts & Accessories

Catalog # Item # Description Weight
KR-CC 142000 Carrying case 10 lbs
KRRK 143496 Ram Repair Kit
KR-CA 142010 Toilet Attachment 1 lb
G-30 143300 Pressure Gauge 0.5 lbs
G-43-4 143430 4″ Cone 0.5 lbs
G-43-6 143440 6″ Cone 0.5 lbs

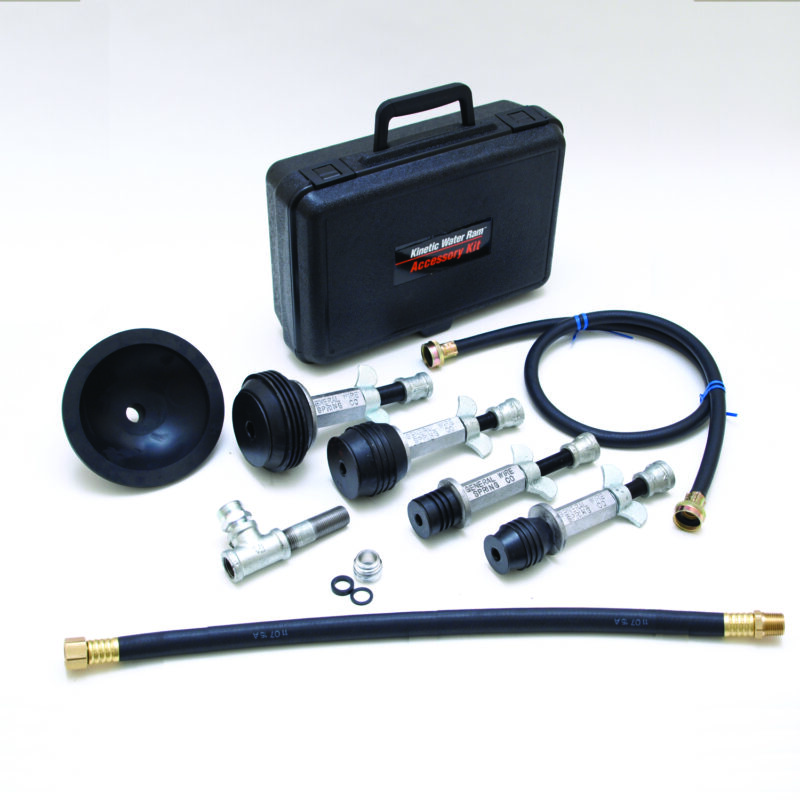

KR-ACC 115070 Ram Accessory Kit 9 lbs
G-CVK 143560 Check Valve Assembly 1 lb
G-44 143450 Caulking Hose
G-45 143460 Water Supply Hose
G-46 143470 Faucet Adapter
G-48 143490 Set of 5 tappered rubber plugs
G-52 142700 22″ Extension Hose
 1-1/2 EX 142020 1-1/2″ Expansion Plug 0.5 lbs
2EX 142030 2″ Expansion Plug 0.5 lbs
3EX 142040 3″ Expansion Plug 0.5 lbs
4EX 142050 4″ Expansion Plug 0.5 lbs
  • 16 gauge plated steel cylinder tested for up to 600 lbs, pressure.
  • 100 lbs. gearless pressure gauge provides pinpoint pressure control.
  • Built-in air compressor easily pumps up to desired pressure.
  • Flexible cone seals drains ranging from 1-1/4″ to 4″diameter.
  • Equipped with Schraeder valve for use with external air compressor when clearing difficult stoppages.
  • Standard fittings include caulking hose, 4″ tapered rubber cone and five tapered rubber plugs for sealing openings from 1-1/4″ through 4″.
  • Optional accessories include: carrying case, toilet attachment, 6″ tapered rubber cone,
    1-1/2″, 2″, 3″ and 4″ expansion plugs, universal faucet adapter, water supply hose, and check valve.
BOLD indicates best-selling units.

Kinetic Water Ram Units – Complete and Ready to Operate

Catalog  # Item # Description Weight
KR-A 115010 Kinetic Water Ram, complete with 4″ rubber cone, five rubber plugs, and caulking hose 11 lbs
KR-A-WC 115020 Same as KR-A, plus carrying case 20 lbs
KR-C-WC 115040 Same as KR-A, plus KR-CA closet attachment and carrying case 21 lbs
KR-D-WC 115050 Same as KR-C, Less caulking hose, plus 6″ rubber cone, four expansion plugs, check valve, extension hose, water supply hose, universal faucet adapter, carrying case 27 lbs

Parts & Accessories

Catalog # Item # Description Weight
KR-CC 142000 Carrying case 10 lbs
KRRK 143496 Ram Repair Kit
KR-CA 142010 Toilet Attachment 1 lb
G-30 143300 Pressure Gauge 0.5 lbs
G-43-4 143430 4″ Cone 0.5 lbs
G-43-6 143440 6″ Cone 0.5 lbs
KR-ACC 115070 Ram Accessory Kit 9 lbs
G-CVK 143560 Check Valve Assembly 1 lb
G-44 143450 Caulking Hose
G-45 143460 Water Supply Hose
G-46 143470 Faucet Adapter
G-48 143490 Set of 5 tappered rubber plugs
G-52 142700 22″ Extension Hose
 1-1/2 EX 142020 1-1/2″ Expansion Plug 0.5 lbs
2EX 142030 2″ Expansion Plug 0.5 lbs
3EX 142040 3″ Expansion Plug 0.5 lbs
4EX 142050 4″ Expansion Plug 0.5 lbs
  • 16 gauge plated steel cylinder tested for up to 600 lbs, pressure.
  • 100 lbs. gearless pressure gauge provides pinpoint pressure control.
  • Built-in air compressor easily pumps up to desired pressure.
  • Flexible cone seals drains ranging from 1-1/4″ to 4″diameter.
  • Equipped with Schraeder valve for use with external air compressor when clearing difficult stoppages.
  • Standard fittings include caulking hose, 4″ tapered rubber cone and five tapered rubber plugs for sealing openings from 1-1/4″ through 4″.
  • Optional accessories include: carrying case, toilet attachment, 6″ tapered rubber cone,
    1-1/2″, 2″, 3″ and 4″ expansion plugs, universal faucet adapter, water supply hose, and check valve.
