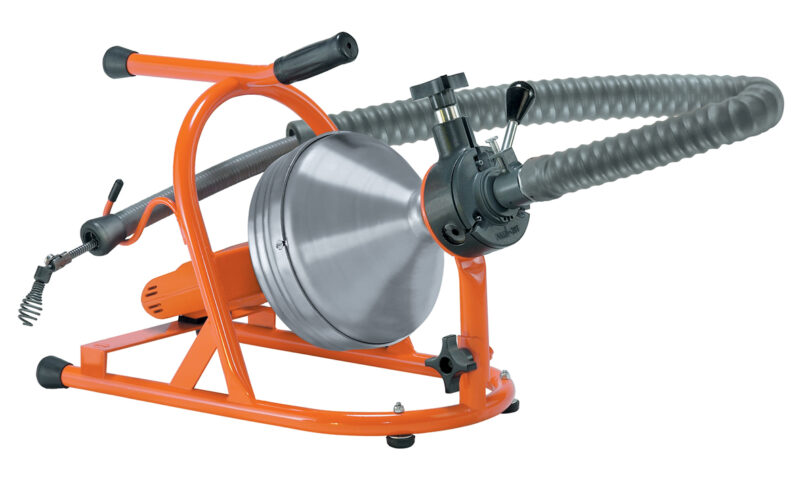

Drain-Rooter PH^™

The Clean Machine

Clear clogged sinks, tubs and laundry drains with less effort. Equipped with a variable speed power cable feed and variable speed motor, the Drain-Rooter PH makes drain cleaning jobs cleaner and easier.

The Drain-Rooter PH feeds and retrieves the cable at up to 16 feet per minute. A four-foot guide hose eliminates cable whipping, dirty fixtures and messy floors. And the drum speed can be varied by changing the pressure on the foot pedal, making it easier to thread the boring head through sink strainers or crossbars.The Drain-Rooter PH is a real labor-saver on long jobs or when working in a cramped area where the weight of the machine could get burdensome.

The Drain-Rooter PH also comes with the new Band-It™ splashguard to minimize excess water spray from the spinning drum.

The Drain-Rooter PH is a real labor-saver on long jobs or when working in a cramped area where the weight of the machine could get burdensome. The Drain-Rooter PH can be operated in both horizontal and vertical positions to get closer to the drain opening.

Quick Change Cable Cartridges make it easy to switch to a different diameter cable. You just loosen three screws, pull the front of the drum off and load another cartridge. Changing takes less than a minute and turns what could be a messy job into a clean one. The drain cleaning machine holds 50 ft. of 1/4” or 5/16”, or 35 ft. of 3/8” Flexicore®cables.

Looking for Product Resources?

Instructions Literature Parts & Diagrams Video

Features

Clears clogged sinks, tubs, and laundry drains in 1-1/4” to 3” lines.
Variable speed power cable feed drives and retrieves cable at up to 16 ft. per minute.
Four-foot guide tube keeps hands and job site clean.
Pneumatic foot pedal controls motor speed.

Band-It™ splashguard minimizes excess water spray from the spinning drum.
Quick-change cartridge makes switching cables clean and easy.
Holds 50 ft. of 1/4″ or 5/16″, or 35 ft. of 3/8″ Flexicore cable.
Flexicore wire rope center cables have unequaled strength yet the right amount of flexibility.
Built Here. Backed Here.

Cartridge Refill

To switch to a different diameter cable (or even connect two 3/8″ cables together), you just loosen three screws, pull the front of the drum off the cable, and load another cartridge. Changing takes less than a minute and turns what could be a messy job into a clean one – another way the Drain-Rooter PH is a clean machine.

Foot Pedal

The drum speed can be varied by changing pressure on the foot pedal.

Flexicore^® Cable

Heavy gauge wire is coiled around 49 strand wire rope and then heat treated. This cable has unequalled strength and the right amount of flexibility. It’s so tough, it has a one year warranty against defect or breakage.

Learn More

Options

Snake-Oil Classic^™

A great way to extend the life of drain cleaning tools & equipment

Snake-Oil Classic^™ preserves and protects sewer cables against rust and corrosion. It’s better than common lubricants because its special rust inhibitor cuts through moisture and replaces it with a rust-resistant coating. You’ll significantly extend the life of your cables and sewer machine, including the drum, bearings and power cable feed rollers. Snake Oil Classic also includes a deodorizer to give equipment a fresh, clean smell. Available in quarts or gallons.

Snake-Oil Classic^™ SDS – Material Safety Data Sheet

ClogChopper^®

Rip through tough stoppages with the unique ClogChopper^® multi-function cutting tools. Six self-sharpening blades dig into encrusted debris and root masses, easily grinding up stoppages, scale, and crystallized urine, without risking pipe damage.

The spherical design maneuvers around tight bends and traps, thoroughly and safely cleaning metal, plastic, and clay pipes. As it spins it also self-sharpens as it scrapes along the pipe walls. It’s excellent for clearing stacks, downspouts, mains, as well as for drain lining jobs.

Model DRZ-PH™

Cutter Sets

Arrow Head Starting Drill

Catalog #AH

Starting Drill (Gets water flowing)

Boring Gimlet

Catalog #BG

For removing loose objects

Down Head Boring Drill

Catalog #DHBG

For removing loose objects
(Goes down waste, not up stack)

Flexible Spring Arrow Head Cutter Starting Drill

Catalog #FAH

(For sharp turns and small lines)

1-1/4″ Side Cutter Blade (2-piece set)

Catalog #1-1/4 SCB

For cutting and scraping

Models

BOLD indicates best-selling units.

DRAIN ROOTER PH UNITS – COMPLETE AND READY TO OPERATE

Catalog #	Item #	Description	Weight
PH-DR-B	105230	Drain Rooter PH with 50HE1-AC (50 ft. x 5/16″ cable, and HECS cutter set.	40 lbs

CUTTER SET

Item #	Item #	Description	Weight
HECS	130010	Hanylectric Cutter Set (Includes Arrow head, Flexible Arrow Head, 1-1/4″ Side Cutter Blade, Boring Gimlet, & Down Head Boring Gimlet)	.5 lbs

REPLACEMENT CABLES

Catalog #	Item #	Description	Weight
25HE1	120010	Flexicore Cable, 1/4″ x 25 ft. with EL Basin Head	4 lbs
50HE1	120020	Flexicore Cable, 1/4″ x 50 ft. with EL Basin Head	8 lbs
25HE1-DH	120030	Flexicore Cable, 1/4″ x 25 ft. with Down Head	5 lbs
50HE1-DH	120040	Flexicore Cable, 1/4″ x 50 ft. with Down Head	9 lbs
25HE1-DDH	120050	Flexicore Cable, 1/4″ x 25 ft. with Double Down Head	5 lbs
50HE1-DDH	120060	Flexicore Cable, 1/4″ x 50 ft. with Double Down Head	9 lbs
25HE1A	120070	Flexicore Cable, 5/16″ x 25 ft. with EL Basin Head	6 lbs
50HE1A	120080	Flexicore Cable, 5/16″ x 50 ft. with EL Basin Head	12 lbs
25HE1-A-DH	120090	Flexicore Cable, 5/16″ x 25 ft. with Down Head	6 lbs
50HE1-A-DH	120100	Flexicore Cable, 5/16″ x 50 ft. with Down Head	12 lbs
25HE1-AC	120110	Flexicore Cable, 5/16″ x 25 ft. with Female Connector	6 lbs
50HE1-AC	120130	Flexicore Cable, 5/16″ x 50 ft. with Female Connector	12 lbs
25HE2	120160	Flexicore Cable, 3/8″ x 25 ft. with Female Connector	7 lbs
35HE2	120170	Flexicore Cable, 3/8″ x 35 ft. with Female Connector	10 lbs

PARTS & ACCESSORIES

Catalog #	Item #	Description	Weight
BNDT	140840	Band-It™ Splashguard	–
PH-7200	157425	Set of Feed Roller Assemblies for Power Cable Feed	0.5 lbs
DR-31-3	136090	Trigger Switch for Skil #6355-GWS	0 lbs
1CG	128800	1” ClogChopper	1 lbs
1-1/2CG	128810	1-1/2” ClogChopper	1 lbs
2CG	128820	2” ClogChopper	1 lbs
SOQ	440120	1 Quart Snake-Oil Classic	2 lbs
SOG	440150	1 Gallon Snake-Oil Classic	7.5 lbs

Specifications

Weight:
Weight: 22 lbs. (10 kg) (without cable)

Dimensions:
22” deep x 13-1/2” wide x 15” high (without hose) (56 cm x 34 cm x 38 cm)

Drum:
Heavy gauge stamped aluminum with inner drum to prevent cable tangling.

Capacity:
50 ft. of 1/4″ or 5/16″ cable; 35 ft. of 3/8″ cable.
All cables are left hand wound and reinforced with a wire rope center.

Power Cable Feed:
Drives 1/4″, 5/16″ and 3/8″ cables.

Cutter Set:
Arrow Head, Boring Gimlet, Down Head Boring Gimlet, 1-1/4″ Side Cutter Blade,
Flexible Arrow Head Cutter

Motor:
All ball-bearing, double insulated, reversible motor with speed control;
0-400 rpm, 230 and 240 volts available.

Foot Pedal:
Pneumatic foot pedal controls variable speed motor. Leaves operator’s hands free to control cable.
