A 690 cc engine with electric start powers the 2500 psi, 12 gpm pump with Vibra-pulse® through a V-belt reducer. Two hose reels – an electric rewind jet hose reel with 400 ft. x 1/2” capacity featuring a variable speed controller, and a supply hose reel carrying 150 ft. x 3/4” hose – are mounted at the rear of the unit next to the pressure gauge and output valve. Engine controls, including an hour meter, are mounted within easy reach in the lockable toolbox with slide action doors just below the reels.
Perfect for Big Lines and Remote Jobs Without Water
The JM-2512 Typhoon is mounted on a heavy duty trailer rated for 3500 lbs. per axle with bearing buddies, and rides on 15” radial tires with modular wheels. A splash guard at the front protects the pump and engine from road debris. The body is protected by a durable powder-coated epoxy finish for added weather protection.
Remote control panel protected inside locked toolbox.
Standard Safety Features
- Electric brakes
- Safety strobe light
- Three safety cones with holder
- Rear fold down stabilizer jacks

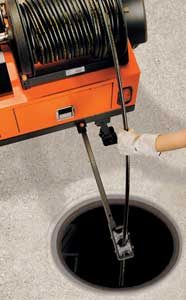

- Retractable guide arm
- Anti-freeze system protects the unit from freeze damage.
- Complete with spray wand and trigger.
High Performance Nozzles
General’s High Performance Nozzles for the Typhoon trailer jet incorporate patented fluid mechanics that significantly increases the thrust, pulling power, and cleaning power of the nozzles without needing to increase the water flow or pressure. Other nozzles simply let the water churn around inside until it finds its way out the nearest orifice. High Performance Nozzles are custom machined to redirect the water through highly efficient inner surface channels directed toward each orifice. The nozzles have replaceable threaded inserts at each orifice, so when the nozzle wears, you only have to replace the inserts, not the whole nozzle. A set of insets are a fraction of the cost of a replacement nozzle. See the Nozzle page for more information.
Jet Hose
Tough high pressure jetting hose comes in a variety of lengths and diameters. Use 1/2″ ID hose for main lines and long runs 4″ through 12″ in diameter at distances of up to 400 ft. Use the 3/8″ ID hose for clean outs, 4″ through 8″ floor drains, and septic lines at distances up to 300 ft.
Spray Wand
Get a spray wand and use your jet for high pressure washing and cleaning applications. Spray wands are made from durable components. The triggers have a light touch, yet can withstand rough usage. The wands are insulated and designed for use with a downstream soap injector. A variety of stainless steel nozzles are available. (Catalog # SWA-2512)
