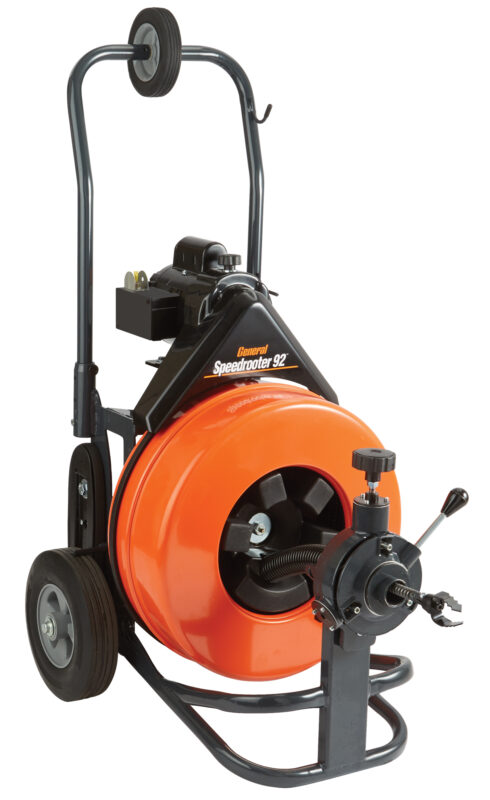

Speedrooter 92®

Features

Clears 3″ through 10″ drains up to 100 ft. down the line.
Drum holds 100 ft. of 3/4″ or 5/8″ Flexicore® cable.
Inner drum cage and Self-aligning Flexitube™ spring distributor tube reduces cable tangling.
Power Cable Feed drives and retrieves cable at up to 20 ft. per minute.
1/2 hp motor strong enough to drive cable 200 ft. down the line.

Features stair climbers, 10″ ball bearing tires, truck loading wheel and tool box.
Adjustable height handle can be 3″ taller or more compact.
Flexicore wire rope center cables have unequalled strength yet the right amount of flexibility.
Built Here. Backed Here.

Power Cable Feed

With the driving and pulling power for long, tough jobs, General’s Power Cable Feed easily handles 3/4″, 5/8″, and 9/16″ cables. To adjust to different cable sizes, simply turn the knob on top of the feed.

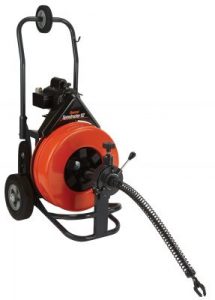

Guide Tube

Greatly increases the efficiency of power cable feed by reducing cable whipping and drag. Keeps your hands off of the spinning cable. Tube is 30” long. Five foot extensions are made of rigid conduit with a flexible spring end.

Portability, Convenience, and Safety

Equipped with 10″ heavy-duty wheels, stair climbers, tool box and ground fault circuit interrupter.

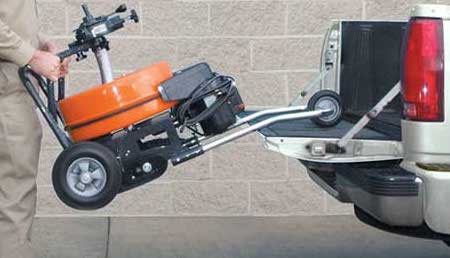

Truck Loading

One person easily loads the Speedrooter 92 onto a truck. The swept-back handle and loading wheel give you the needed leverage.

V-belt Stair Climbers

V-belt stair climbers like the ones used to move heavy furniture and appliances let you take the Speedrooter 92 up a flight of stairs yourself.

Flexicore^® Cable

Heavy gauge wire is coiled around 49 strand wire rope and then heat treated. This cable has unequalled strength and the right amount of flexibility. It’s so tough, it has a one year warranty against defect or breakage.

Learn More

Options

Snake-Oil Classic^™

A great way to extend the life of drain cleaning tools & equipment

Snake-Oil Classic^™ preserves and protects sewer cables against rust and corrosion. It’s better than common lubricants because its special rust inhibitor cuts through moisture and replaces it with a rust-resistant coating. You’ll significantly extend the life of your cables and sewer machine, including the drum, bearings and power cable feed rollers. Snake Oil Classic also includes a deodorizer to give equipment a fresh, clean smell. Available in quarts or gallons.

Snake-Oil Classic^™ SDS – Material Safety Data Sheet

Quick-Fix^™

General Pipe Cleaners’ Quick-Fix^™ let’s you quickly repair broken drain snakes in the field. The unique Quick-Fix let’s you continue working and finish the job without having to go back to your shop to repair or replace a broken cable. The Quick-Fix is available in 1/2”, 9/16”, 5/8”, and 3/4” sizes with female or male connectors.

The specially designed spring with a pre-welded female connecter is easy to attach in the field. Prepare your broken snake by cutting off the damaged or kinked end of the cable with bolt cutters or a hack saw. Then simply thread the Quick-Fix over the broken snake. No welder is required! All you need are vice-grips or a pair of pliers. Once it’s on, the Quick-Fix holds on so tightly that it simply cannot be removed, even if you wanted to.

ClogChopper^®

Rip through tough stoppages with the unique ClogChopper^® multi-function cutting tools. Six self-sharpening blades dig into encrusted debris and root masses, easily grinding up stoppages, scale, and crystallized urine, without risking pipe damage.

The spherical design maneuvers around tight bends and traps, thoroughly and safely cleaning metal, plastic, and clay pipes. As it spins it also self-sharpens as it scrapes along the pipe walls. It’s excellent for clearing stacks, downspouts, mains, as well as for drain lining jobs.

Related Products

Speedrooter XL®

Flexi-Rooter®

Cutter Sets

Cutter Set (Catalog #SRCS)

Spear Head Starting Drill

Catalog #SHD

Starting Drill (gets water flowing)

3″ & 4″ Side Cutter Blades

Catalog #3SCB/4SCB

For cutting and scraping

2″ U-Cutter

Catalog #2UC

For cutting and sawing

3″ Heavy Duty Saw Blade

Catalog #3HDB

For roots and other stoppages

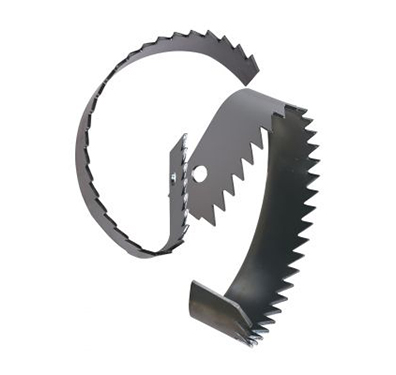

4″ Rotary Saw Blades

Catalog #4RSB

For roots and other stoppages

Large Retrieving Tool

Catalog #RTR-2

For removing loose objects and broken cables

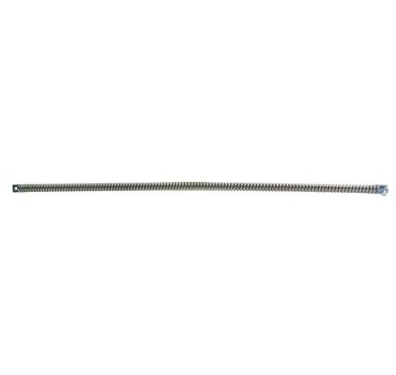

26″ Flexible Leader

Catalog #LE-3

Helps cable get around tight bends and traps

Models

BOLD indicates best-selling units.

Speedrooter 92 Units – Complete and ready to Operate

Catalog #	Item #	Description	Weight
P-S92-C	108680	Speedrooter 92 with 100EM5 (100 ft. x 3/4”) Cable, Power Cable Feed, Guide Tube, and SRCS Cutter Set	242 lbs
P-S92-E	108690	Speedrooter 92 with 100EM4 (100 ft. x 5/8”) Cable, Power Cable Feed, Guide Tube, and SRCS Cutter Set	220 lbs

Cutter Set

Catalog #	Item #	Description	Weight
SRCS	130040	Senior Cutter Set (Includes Spear Head, 3″ & 4″ Side Cutter Blades, 2″ U-Cutter, 3″ Heavy Duty Saw Blade, 4″ Rotary Saw Blade, Large Retieving Tool and 26″ Flexible Leader)	6.5 lbs

Replacement Cables

Catalog #	Item #	Description	Weight
25EM5	122050	Flexicore Cable, 3/4″ x 25 ft. with Male & Female Connectors	25 lbs
50EM5	122060	Flexicore Cable, 3/4″ x 50 ft. with Male & Female Connectors	51 lbs
75EM5	122070	Flexicore Cable, 3/4″ x 75 ft. with Male & Female Connectors	74 lbs
100EM5	122080	Flexicore Cable, 3/4″ x 100 ft. with Male & Female Connectors	101 lbs
25EM4	122010	Flexicore Cable, 5/8″ x 25 ft. with Male & Female Connectors	20 lbs
50EM4	122030	Flexicore Cable, 5/8″ x 50 ft. with Male & Female Connectors	41 lbs
75EM4	122030	Flexicore Cable, 5/8″ x 75 ft. with Male & Female Connectors	61 lbs
100EM4	122040	Flexicore Cable, 5/8″ x 100 ft. with Male & Female Connectors	80 lbs

Parts & Accessories

Catalog #	Item #	Description	Weight
S92-450	170610	Large Drum (18″) for 5/8″ & 3/4″ Cables	25 lbs
PO-S92	170940	Speedrooter Power Cable Feed & Guide Tube	6 lbs
S92-GT	156006	Guide Tube for Speedrooter	5 lbs
GTE	146160	Guide Tube Extension	2 lbs
S92-605-B	136070	Foot Pedal with Hose	–
S92-605-E	136080	Power Switch Diaphragm	–
S92-605-G	136130	Reverse Switch	–
GFI-20	136000	Ground Fault Circuit Interrupter with 20 ft. cord	2 lbs
LG	130410	Leather Gloves	1 lbs
PO-703	136110	Set of feed rollers (3) for Power Cable Feed	–
2CG	128820	2” ClogChopper	1 lbs
2-1/2CG	128830	2-1/2” ClogChopper	1 lbs
3CG	128880	3” ClogChopper	2 lbs
4CG	128890	4” ClogChopper	3 lbs
1/2QF	130855	1/2” Quick-Fix	1 lbs
9/16QF	130856	9/16” Quick-Fix	1 lbs
5/8QF	130860	5/8” Quick-Fix	1 lbs
3/4QF	130870	3/4” Quick-Fix	1 lbs
SOQ	440120	1 Quart Snake-Oil Classic	2 lbs
SOG	440150	1 Gallon Snake-Oil Classic	7.5 lbs

Specifications

Weight:
115 lbs. (52 kg) without cable

Dimensions:
26” deep, 22” wide, 41” high (66 cm x 56 cm 104 cm)

Drums:
Large drum holds 100 ft x 3/4” or 5/8” cable (30 m x 19 mm or 17 mm).

Drum Removal:
Loosen two knobs, remove ringbolt, and lift off.

Motor:
1/2 hp with capacitor, forward-off-reverse switch, 20 ft. power cord and ground fault circuit interrupter. (3/4 hp optional)

Foot Switch:
Pneumatic, with no electrical contact between pedal and motor.

Power Cable Feed:
Drives and retracts at variable speed of up to 20 ft. per minute.

Wheels:
10” semi-pneumatic heavy duty with ball bearings.

Stair Climbers:
Heavy-duty V-belts running on nylon rollers.

Wheel Brake:
Keeps machine in place on the job or in the truck.

Truck Loading Wheel:
Enables one person to lift machine onto bed of truck.

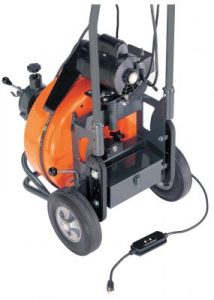

Tool Box:
Attached to rear of machine. Holds all cutters except Flexible leader.

Leather Gloves:
With double-reinforced palm for hand protection when guiding cable.

Cables:
Left wound Flexicore® wire rope center 3/4” diameter for 4” to 10” lines and 3” lines without sharp bends; 5/8” diameter for 3” to 6” lines; 9/16” diameter for 2” to 3” lines.

Cutters:
Cutter Set for 5/8” and 3/4” cables
3SCB, 4SCB 3” and 4” Side Cutters
3HDB 3” Heavy Duty Saw Blade
SHD Spear Head
2UC 2” U-Cutter
4RSB 4” Rotary Saw Blade
RTR-2 Large Retrieving Tool
LE-3 Flexible Leader, 26” long
