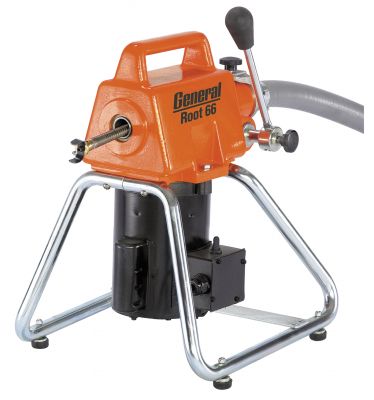

Root 66^®

Uses Sectional Cable for 1-1/4" - 4"

The Root 66 is a real advance in sectional cable machine design. No mid-range machine has its versatility and power.

Look at its versatility. You can drive 5/8″ cables for lines up to 3″ and 7/8″ cables for 4″ lines – and you can switch from one to the other in seconds, without touching the jaws, without an adapter, without tools. And for sink drain work, slip on a drum that holds smaller cables.

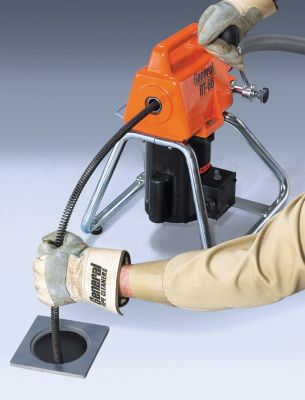

To operate, just feed a cable into the line and slide the back end into the machine. The excess cable goes into a guide tube. Turn on the sealed motor, press down on the handle, and the Root 66 starts spinning the cable at 400 rpm.

The cable stops rotating as soon as you lift the handle, so there’s no additional torque buildup. When using a drum for small drain work, the drum stops turning when you lift the handle to the neutral position.

Looking for Product Resources?

Instructions Literature Parts & Diagrams Video

Features

It’s three machines in one.
Clears 1-1/4″ through 4″ drain lines.
Drives both 5/8″ and 7/8″ sectional cables.
Change cables instantly–no tools or adapters required.

1/2 hp sealed motor.
Small drum holds 25 ft. of 5/16″ Flexicore cable to clear 1-1/4” to 2” lines.
Built Here. Backed Here.

Stability and Durability

The Root 66 has a wide four point base for greater stability. Its interlocking tubular construction also gives it excellent durability. To protect the gears from dirt and for easier cleaning, the machine has two internal plastic shields. A ground fault circuit interrupter is standard equipment.

Universal Jaws

Jaws handle both 7/8″ cables or 5/8″ cables. No adaptor required.

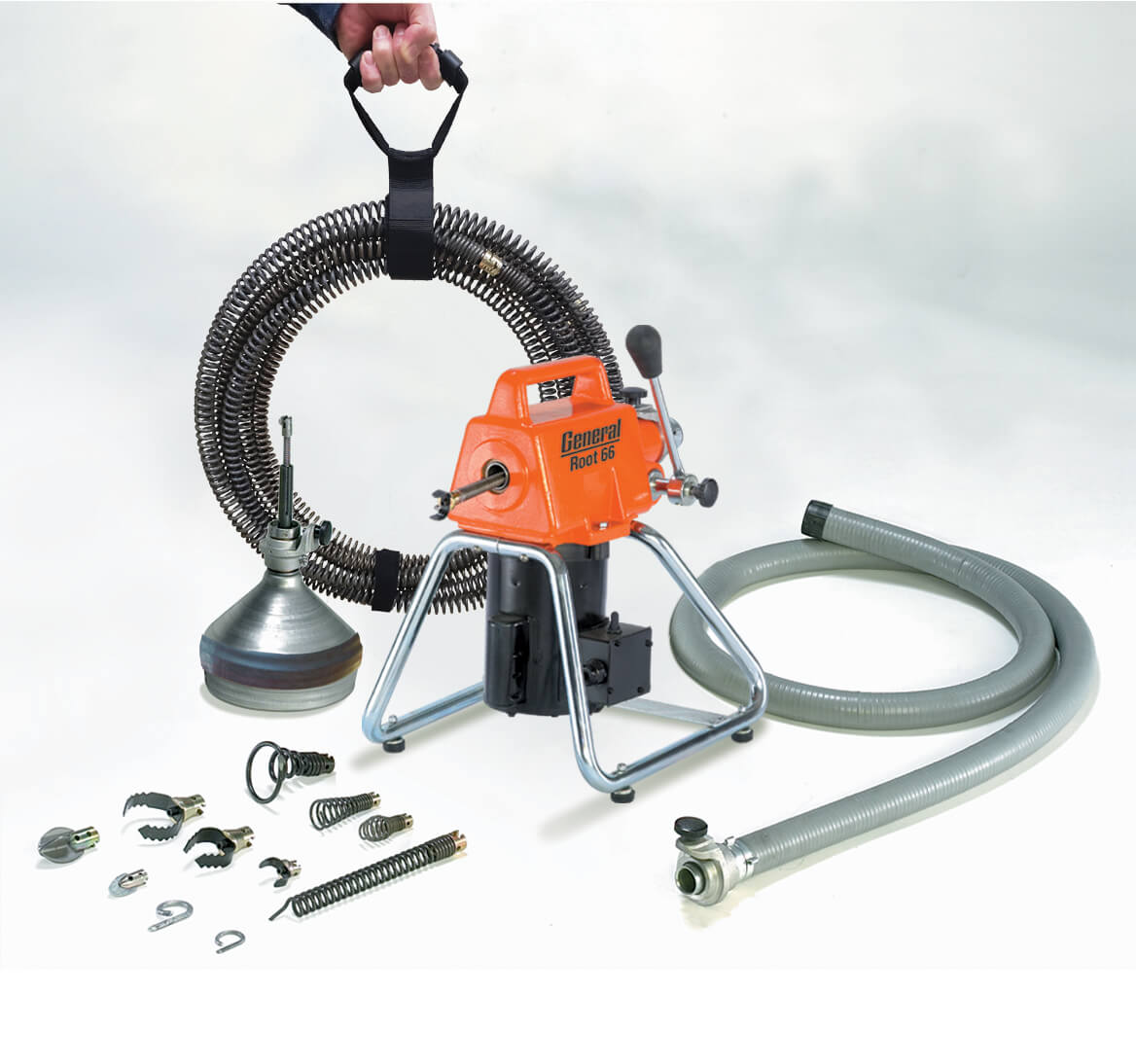

Root 66 Accessories

Includes cable carrier, drum for small drain work, a rear guide hose, and a toolbox.

Options

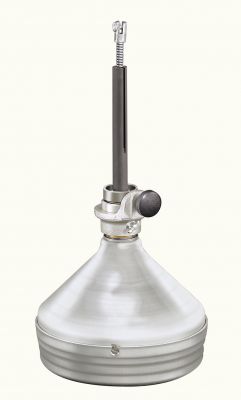

Optional Drum

For small drain work, get the optional drum. It slides easily onto the back of the machine to clear 1-1/4″ to 2″ drain lines. It holds 1/4″ or 5/16″ Flexicore^® cables up to 50 ft. long, or 3/8″ Flexicore^® cables up to 35 ft. long.

Cables

Standard cable sections for the I-95 and Root 66 are open-wound hollow cables with R-Connectors (Ridgid^®compatible).

The 5/8” cables are used to clear 2” and 3” lines up to 125 ft. long. They are available in 7-1/2 ft. sections. They snap together in a second and are taken apart quickly with a coupling key
Catalog #: 7.5R8
The 7/8” cables are used to clear 3” and 4” lines up to 150 ft. long. Standard sections are available in 15 ft. sections.
Catalog #: 15R10

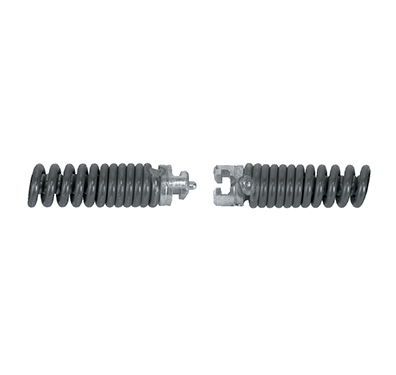

The 7/8” cables are also available as optional Proflex sectional cables that support an inner spring. It gives the cable greater strength to resit kinking and to transfer extra torque down the cable for additional cutting power.
Catalog #: 15R10-P
Smaller 5/16” Flexicore® cables can be used with an optional drum to clear clogged sink lines and other small 1-1/4” to 2” drain lines.
Catalog #: 25HE1-A

Force Multiplier Cables^™

New 5 foot sectional cables make sectional drain cleaning cleaner and easier in confined and hard-to-access areas like bathrooms, kitchens, basements, and even roofs.

The shorter 5 ft. cable length helps keep the machine under better control, reducing the risk of spraying walls, floors, carpets, and cabinets from exposed wet, spinning 15 ft. cables. The short design also fits perfectly on 6 ft. drop cloths without hanging over.

The 7/8” cables fit General’s Root 66^® and I-95^®.
Catalog #: 5R-10
The 1-1/4” cables are for the Rodrunner^®.
Catalog #: 5R-14

Force Multiplier’s R-connectors also fit other brands of machines, cables, and attachments. The open-wound hollow cables snap together in a second, and can be disconnected quickly and easily with a coupling key, further facilitating use in cramped quarters and on roofs.

Snake-Oil Classic^™

A great way to extend the life of drain cleaning tools & equipment

Snake-Oil Classic^™ preserves and protects sewer cables against rust and corrosion. It’s better than common lubricants because its special rust inhibitor cuts through moisture and replaces it with a rust-resistant coating. You’ll significantly extend the life of your cables and sewer machine, including the drum, bearings and power cable feed rollers. Snake Oil Classic also includes a deodorizer to give equipment a fresh, clean smell. Available in quarts or gallons.

Snake-Oil Classic^™ SDS – Material Safety Data Sheet

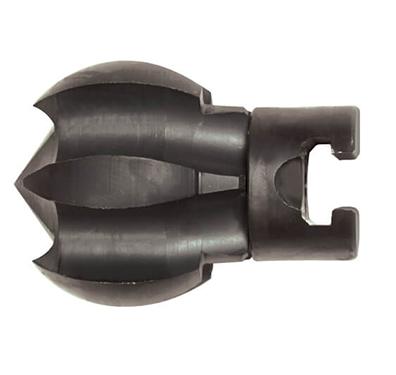

ClogChopper^®

Rip through tough stoppages with the unique ClogChopper^® multi-function cutting tools. Six self-sharpening blades dig into encrusted debris and root masses, easily grinding up stoppages, scale, and crystallized urine, without risking pipe damage.

The spherical design maneuvers around tight bends and traps, thoroughly and safely cleaning metal, plastic, and clay pipes. As it spins it also self-sharpens as it scrapes along the pipe walls. It’s excellent for clearing stacks, downspouts, mains, as well as for drain lining jobs.

General offers a variety of sizes, and connector options, including sectional G connectors, as well as other brands of machines, cables, and attachments.

Rodrunner®

Flexi-Rooter®

Cutter Sets

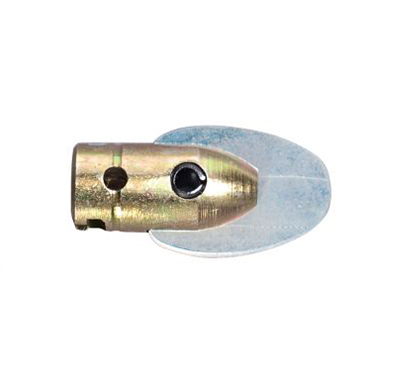

Arrow Head

Catalog #R-AH

Starting Drill (gets water flowing)

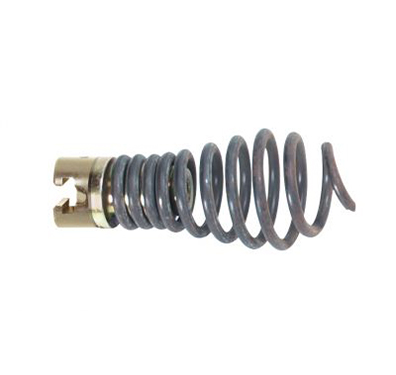

Boring Gimlet

Catalog #R-BG

For removing loose objects

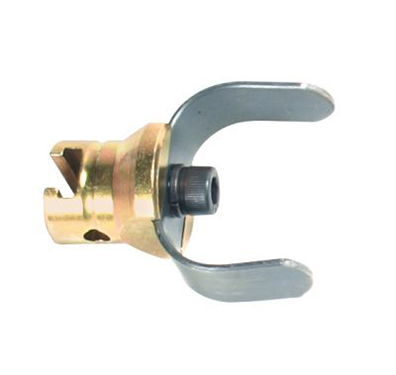

1-1/2″ U-Cutter

Catalog #R-1-1/2 UC

For cutting and scraping

Retrieving Tool

Catalog #R-RTR-1

For removing loose objects and broken cables

R-1-1/2CG

1-1/2″ ClogChopper

For 5/8″ sectional cables with “R” style connector

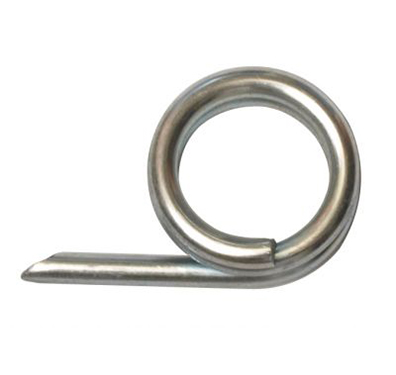

RCK-8

Coupling Key

To disconnect cables and cutters

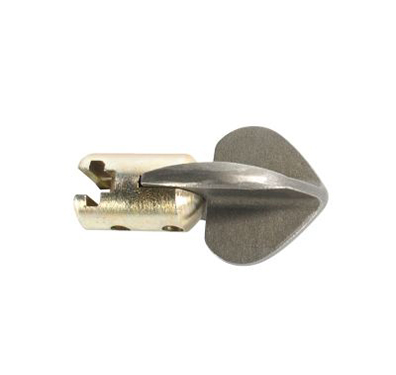

Spear Head

Catalog #R-SHD-10

Starting Drill (gets water flowing)

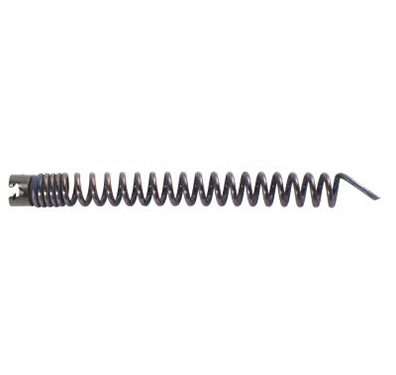

Hook Auger

Catalog# R-HA-10

For removing loose objects

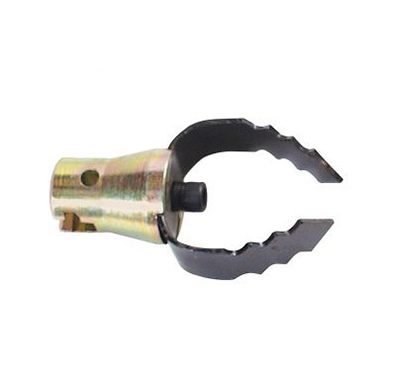

2″ & 3″ U-Cutter

Catalog #R-2UC-10/R-3UC-10

For cutting and scraping

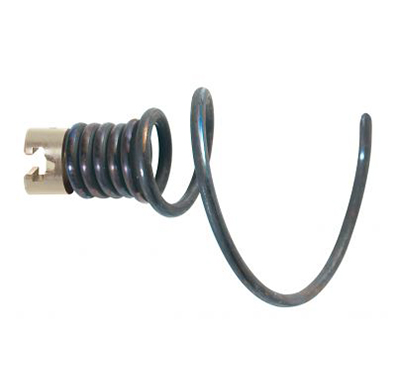

Retrieving Tool

Catalog #R-RTR-10

For removing loose objects and broken cables

2″ ClogChopper

Catalog #R-2CG-10

For 7/8″ sectional cables with “R” style connector

Coupling Key

Catalog #RCK-10

To disconnect cables and cutters

Models

BOLD indicates best-selling units.

Root 66 Units – Complete and Ready to Operate

Catalog #	Item #	Description	Weight
RT-66-A	116120	Root 66, plus SEVEN 7-1/2 ft. x 5/8″ sections (7.5R8), 66-RGH Rear Guide Hose, R-8CS cutter set, PLUS 1-1/2″ ClogChopper (R-1-1/2CG).	72 lbs
RT-66-C	116140	Root 66, plus SIX 15 ft. x 7/8″ sections (15R10), 66-RGH Rear Guide Hose, R-10CS cutter set, TB-66 tool box, PLUS 2″ ClogChopper (R-2CG-10).	122 lbs
RT-66-D	116150	Combines Units A and C.	143 lbs
RT-66-E	116160	Same as RT-66-D, plus small drum (66-25A) with 25 ft. x 5/16″ cable (25HE1-A) installed.	153 lbs

Cutter Set

Catalog #	Item #	Description	Weight
R-8CS	178010	Cutter Set for 5/8″ Sectional Cables (Includes R-BG, R-1-1/2UC, R-RTR-1, R-AH, R-CK-8)	4 lbs
R-10CS	178030	Cutter Set for 7/8″ Sectional Cables (Includes R-SHD-10, R-HA-10, R-2UC-10, R-3UC-10, R-RTR-10, R-CK-10)	4 lbs
R-1-1/2CG	128850	1-1/2″ ClogChopper for 5/8″ sectional cables with “R” style connector	–
R-2CG-10	128860	2″ ClogChopper for 7/8″ sectional cables with “R” style connector	–

Replacement Cables

Catalog #	Item #	Description	Weight
7.5R7	160860	5/8″ x 7-1/2′ Closed-Wound Section	4 lbs
7.5R8	160850	5/8″ x 7-1/2″ Open-Wound Section	3 lbs
15R10	160480	7/8″ x 15′ Open-Wound Section	8 lbs
15R10-P	160470	7/8″ x 15′ Proflex Section	11 lbs

Parts & Accessories

Catalog #	Item #	Description	Weight
66-35-O	178230	Drum Only (Holds up to 35′ x 3/8″ Cables)	9 lbs
66-RGH	178250	Rear Guide Hose for Root 66	5 lbs
SCC	178260	Small Cable Carrier for 5/8″ sectional cables	3 lbs
CC	160370	Large Cable Carrier for 7/8″ sectional cables	6 lbs
LG	130410	Leather Gloves	1 lb
R-1CG	128840	1″ ClogChopper for 5/8″ sectional cables with “R” style connector	1 lb
R-1-1/2CG	128850	1-1/2″ ClogChopper for 5/8″ sectional cables with “R” style connector	1 lb
R-2CG-10	128860	2″ ClogChopper for 7/8″ sectional cables with “R” style connector	1 lb
R-2-1/2CG-10	128870	2-1/2″ ClogChopper for 7/8″ sectional cables with “R” style connector	1 lb
R-3CG-10	128900	3″ ClogChopper for 7/8″ sectional cables with “R” style connector	1 lb
SOQ	440120	1 Quart Snake-Oil Classic	2 lbs
SOG	440150	1 Gallon Snake-Oil Classic	7.5 lbs

Specifications

Weight:
42 lbs. (19 kg)

Dimensions:
16″ deep; 14″ wide; 17″ high. (40 cm x 35 cm x 43 cm)

Motor:
Sealed 1/2 hp with forward – off – reverse switch, ten foot power cord and
ground fault circuit interrupter.

Drum:
(Optional) Holds 25 ft. of 5/16” cable for 1-1/2” to 2” lines, or 35 ft. x 3/8” cable for 2” to 3” lines.

Drip Guards:
Two shields to protect bearings and motor from dirt and moisture.

Clutch:
Pull down two position handle to spin cables at 400 RPM. Lift to stop.
Brake stops spinning drums instantly.

Cables:
7 1/2 ft. x 5/8″ (Cat #7.5R8) for 1-1/4 to 3″ lines up to 100 ft.
15 ft. x 7/8″ (Cat # 15R10) for 2 to 4″ lines up to 125 ft.
“T” slot couplings slide together to lock and uncouple.

Cutter set for 7/8″ cables:
Spear Head, 2″ U-Cutter, 3″ U-Cutter, Hook Auger and Retrieving Tool.

Cutter set for 5/8″ cables:
Arrow Head, Boring Gimlet, 1-1/2” U-Cutter and Retrieving Tool.

Jaws:
Drive both 5/8″ and 7/8″ cables without adjustment; also grip containers for smaller diameter cables.
Keyed for longer life and less slippage.

Leather Gloves:
Double palm, for hand protection when guiding cable.
