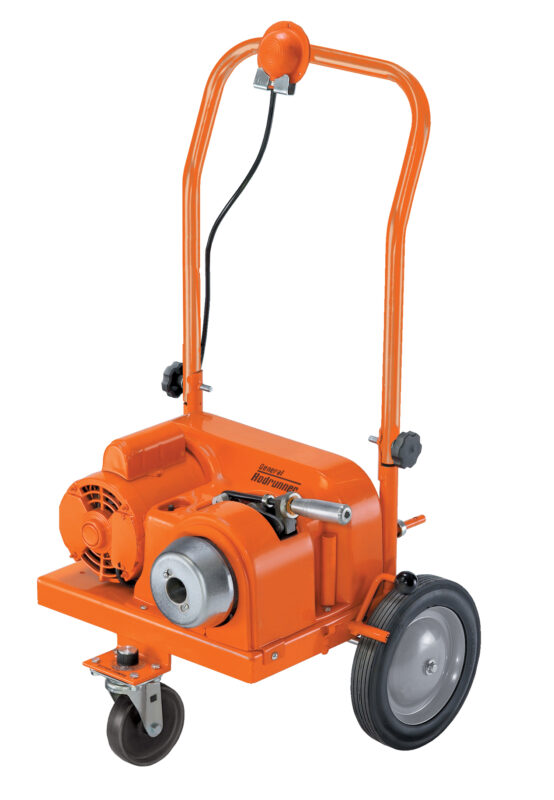

Rodrunner^®

Self-Feeds Reinforced Sectional Cables

The Rodrunner offers all the features that contractors like in a sectional sewer cleaner – light weight, high speed cable rotation, and short quick-coupling cables.

Two Way Operation

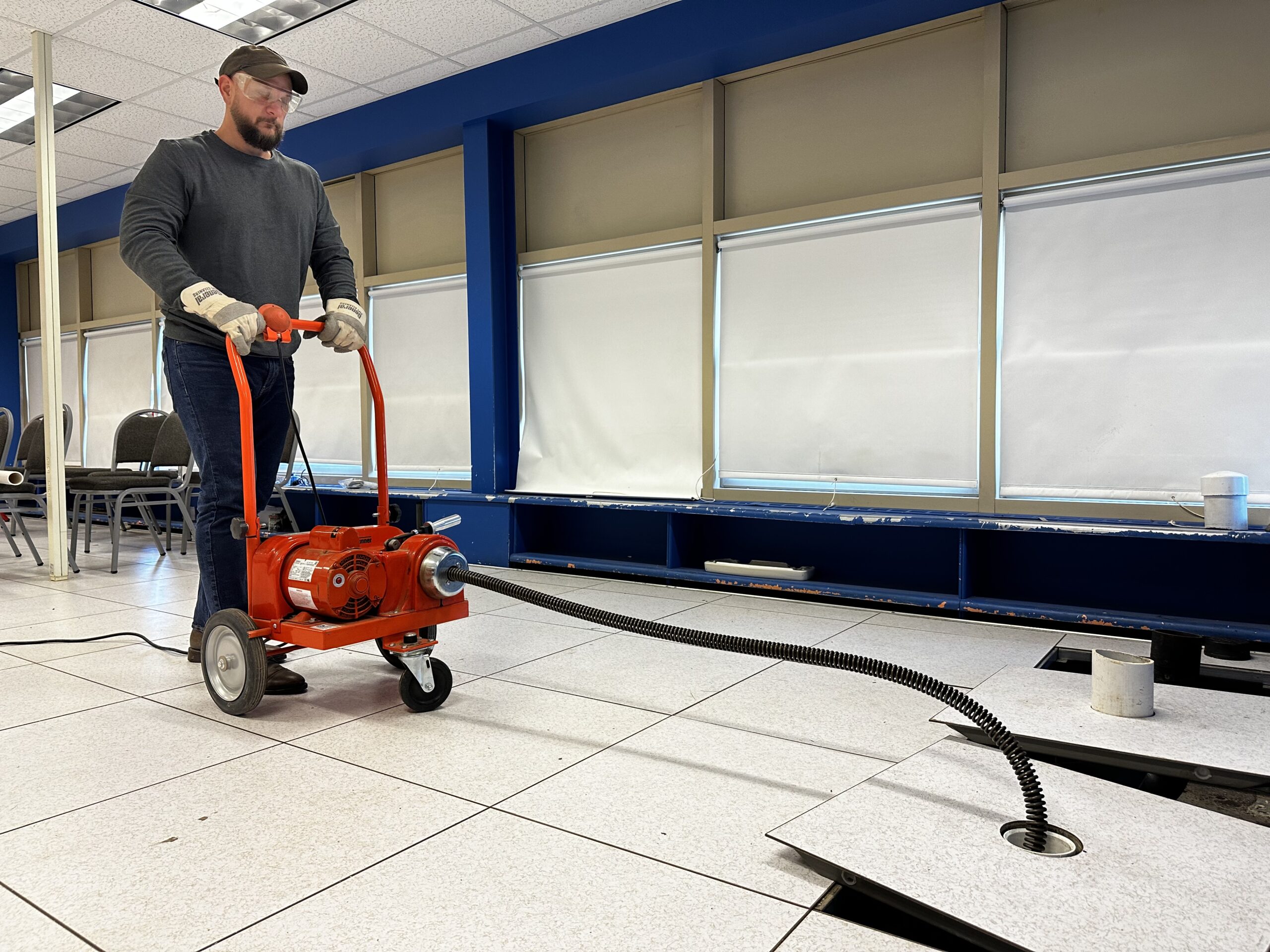

Most often, you set the Rodrunner up close to the drain opening. However, on easier jobs where you have some working room, you can run the machine “lawn-mower” fashion, standing behind the machine.

For close-up work, the wheel brake is set, the power switch is placed next to the machine to be used as a foot switch, and the cable guide hose is attached. Now, the Rodrunner is ready to handle the toughest stoppages in 3-10″ lines, as far as 200 feet away.

A heavy-duty 3/4 hp motor with capacitor and overload protection spins cable at 700 rpm, an ideal speed for self-feeding into the line while protecting the cable against sudden torque build-ups. For additional protection, the Rodrunner has an adjustable slip clutch, which is factory set at 18-20 ft. lbs.

An optional set of jaws (R-R10AD) enables the Rodrunner to drive 15 ft. x 7/8″ (15R10) cables to clear smaller lines.

Looking for Product Resources?

Instructions Literature Parts & Diagrams Video

Features

Self feeds 8, 10 and 15 foot sectional cables.
Pneumatic foot pedal frees both hands to control cable.
Can be used as “Close-up” or “Walk-behind” machine.
3/4 hp motor can drive sectional cables 200 ft. down the line.
A heavy-duty 3/4 hp motor spins cable at 700 rpm, an ideal speed for self-feeding into the line.

Safety slip clutch protects against sudden torque build-ups.
Features folding handle, 10″ tires, and cable counter.
Built Here. Backed Here

Two Way Chuck Handle

Locked down against cable, you have both hands free to hold the cable. This is a real help when pulling cable out of the line.

Pneumatic Power Switch

Power switch is located on handle for storage and use in “walk-in” operation. For close-up work, it’s removed from handle for use as a foot switch.

Cable Feeding Tool

It enables cable to get around tight bends and traps by taking advantage of open-wound design of cables. Note that operator controls machine by using power switch in foot pedal mode.

Folding Handle

Rodrunner weighs less than 100 lbs., so it’s easy to move to and from the job. Folding handle gives a low profile for more convenient storage on truck.

Options

Cables

Sectional cables for the Rodrunner snap together in a second and are taken apart quickly with a coupling wrench or coupling key. The open coils screw into the line making it easier to clear long lines with less effort. They are available in a variety of lengths and connectors for General and competitive brands. With the more recently developed “G” connector, no torque is put on the locking pin when running the machine in reverse, making it a more durable coupling.

Flexichain^™ Sections

Quick-coupling 1-1/4” Flexichain sectional cables work with General’s Model 88^™ or Rodrunner^®. The heavy-gauge, right-hand wound coil enables fast self-feeding, while the chain center ensures flexibility and prevents cable loss. Available in 10 ft. lengths with “G” Connector.

Proflex cables have the same 1-1/4” outer cable as the Flexichain cables, for use with the same machines. An inner spring enables the cable to better handle motor torque and has better “push” when working though tough stoppages. They are available in 8 or 10 ft. lengths. (Shown with “L” Connector)

Hollow Sections

Hollow 1-1/4” sections with T-Slot couplings are available in standard or heavy duty versions. They are available in 15 ft. lengths or the new 5 ft Force Multiplier. See below for more information. (Shown with “R” Connector)

Force Multiplier Cables^™

New 5 ft. sectional cables simplify drain cleaning in tight spaces like bathrooms, kitchens, basements, and roofs.

Their shorter length improves control, minimizes mess, and fits neatly on 6 ft. drop cloths

7/8” cables fit Root 66^® and I-95^®.
Catalog #: 5R-10
1-1/4” cables fit the Rodrunner^®.
Catalog #: 5R-14)

Force Multiplier cables feature R-connectors compatible with other brands, snapping together or apart quickly with a coupling key for easy use in tight spaces or on roofs.

Snake-Oil Classic^™

A great way to extend the life of drain cleaning tools & equipment

Snake-Oil Classic^™ preserves and protects sewer cables against rust and corrosion. It’s better than common lubricants because its special rust inhibitor cuts through moisture and replaces it with a rust-resistant coating. You’ll significantly extend the life of your cables and sewer machine, including the drum, bearings and power cable feed rollers. Snake Oil Classic also includes a deodorizer to give equipment a fresh, clean smell. Available in quarts or gallons.

Snake-Oil Classic^™ SDS – Material Safety Data Sheet

ClogChopper^®

Rip through tough stoppages with the unique ClogChopper^® multi-function cutting tools. Six self-sharpening blades dig into encrusted debris and root masses, easily grinding up stoppages, scale, and crystallized urine, without risking pipe damage.

The spherical design maneuvers around tight bends and traps, thoroughly and safely cleaning metal, plastic, and clay pipes. As it spins it also self-sharpens as it scrapes along the pipe walls. It’s excellent for clearing stacks, downspouts, mains, as well as for drain lining jobs.

General offers a variety of sizes, and connector options, including sectional G connectors, as well as other brands of machines, cables, and attachments.

Root 66®

Flexi-Rooter®

Cutter Sets

Spear Head

Catalog #G-SHD

Starting Drill (Gets water flowing)

Hook Auger

Catalog #G-HA

For removing loose objects and broken cables

2″ U-Cutter

Catalog #G-2UC

For cutting and scraping

3″ Heavy Duty Saw Blade

Catalog #G-3HDB

For roots and other stoppages

4″ Rotary Saw Blades

Catalog #G-4RSB

For roots and other stoppages

Retrieving Tool

Catalog #G-RTR-2

For removing loose objects and broken cables

Coupling Wrench

Catalog #G-CW

To disconnect cables and cutters

Models

BOLD indicates best-selling units.

Rodrunner Units – Complete and Ready to Operate

Catalog #	Item #	Description	Weight
RD-GP	109130	Rodrunner, plus ten 10GP Proflex sections with “G” connectors, and RDCS-G cutter set.	268 lbs
RD-LP	109150	Rodrunner, plus ten 10LP Proflex sections with “L” connectors, and RDCS-L cutter set.	268 lbs

Cutter Set

Catalog #	Item #	Description	Weight
RDCS-G	160040	Rodrunner Cutter Set with “G” Connectors (Includes G-SHD, G-HA, G-2UC, G-3HDSC, G-3HDB, G-3RSB, G-RTR-2, G-CW)	8 lbs
RDCS-L	161040	Rodrunner Cutter Set with “L” Connectors (Includes L-SHD, L-HA, L-2UC, L-3HDSC, L-3HDB, L-4RSB, L-RTR-2, L-CW)	8 lbs
RDCS-R	160560	Rodrunner Cutter Set with “R” Connectors (Includes R-SHD, R-HA, R-2UC, R-3HDSC, R-3HDB, R-4RSB, R-RTR-2, R-CK-11)	8 lbs

Replacement Cables

Catalog #	Item #	Description	Weight
10GF	160010	1-1/4″ x 10′ Flexichain with “G” Connectors	14 lbs
10GP	160030	1-1/4″ x 10′ Proflex with “G” Connectors	16 lbs
10LF	161010	1-1/4″ x 10′ Flexichain with “L” Connectors	14 lbs
10LP	161030	1-1/4″ x 10′ Proflex with “L” Connectors	16 lbs
15R10	160480	7/8″ x 15′ Open-Wound with “R” Connectors	8 lbs
15R10-P	160470	7/8″ x 15′ Proflex with “R” Connectors	11 lbs
15R11	160490	1-1/4″ x 15′ Left-Hand Open-Wound Hollow Standard Duty with “R” Connectors	14 lbs
15R14	160500	1-1/4″ x 15′ Left-Hand Open-Wound Hollow Heavy Duty with “R” Connectors	15 lbs

Parts & Accessories

Catalog #	Item #	Description	Weight
RGH	160350	Rear Guide Hose	5 lbs
CF	160340	Cable Feeding Tool	4 lbs
CC	160370	Cable Carrier	6 lbs
WCC	160380	Wheeled Cable Carrier	8 lbs
RD-234	162720	Chuck Jaws	–
RD-311-B	163385	Foot Pedal with Hose	–
RD-311-E	136080	Power Switch Diaphragm	–
RD-311-G	136130	Reverse Switch	–
GFI-20	136000	Ground Fault Circuit Interrupter with 20 ft. cord	2 lbs
LG	130410	Leather Gloves	1 lb
G-2CG	127900	ClogChopper 1-1/4″ Sections with G-Connector	1 lb
G-2-1/2CG	127910	ClogChopper 1-1/4″ Sections with G-Connector	1 lb
G-3CG	127920	ClogChopper 1-1/4″ Sections with G-Connector	2 lbs
G-4CG	127930	ClogChopper 1-1/4″ Sections with G-Connector	2.5 lbs
L-2CG	127940	ClogChopper 1-1/4″ Sections with L-Connector	1 lb
L-2-1/2CG	127950	ClogChopper 1-1/4″ Sections with L-Connector	1 lb
L-3CG	127960	ClogChopper 1-1/4″ Sections with L-Connector	2 lbs
L-4CG	127970	ClogChopper 1-1/4″ Sections with L-Connector	2.5 lbs
SOQ	440120	1 Quart Snake-Oil Classic	2 lbs
SOG	440150	1 Gallon Snake-Oil Classic	7.5 lbs

Specifications

Weight:
90 lbs. (41 kg)

Dimensions:
22″ wide x 19″ high with handle folded down.(56 cm x 48 cm)

Motor:
Heavy-duty 3/4 hp with capacitor and 20 ft. power cord rotates cables at 700 rpm. Equipped with ground fault circuit interrupter.

Wheels:
10″ rear wheels, 5″ caster wheel.

Wheel Brake:
Locks rear wheels in place or releases them in an instant.

Combination Hand or Foot Operated Power Switch:
Air activated for safety; no electrical connection between motor and switch;
can be used as hand or foot switch. Eleven foot air tube.

Twin V-Belts:
For better power transmission.

Safety Clutch:
An adjustable spring-loaded clutch is mounted at the rear of the cable drive shaft.
Accessible without removing machine housing.

Chuck Handle:
Clamps on cable or acts as “dead-man’s throttle.”

Rear Cable Guide Hose:
To limit cable whipping behind machine.

Folding Handle:
Reduces truck storage space.

Cutter Set with “G” Connectors:
Spear Head, Hook Auger, 2″ U-Cutter, 3″ Heavy Duty Side Cutter, 3″ Heavy Duty Saw Blade,
4″ Rotary Saw Blade, Large Retrieving Tool, Coupling Wrench.

Cutter Set with “L” Connectors:
Spear Head, Hook Auger, 2″ U-Cutter, 3″ Heavy Duty Side Cutter, 3″ Heavy Duty Saw Blade,
4″ Rotary Saw Blade, Large Retrieving Tool,Coupling Wrench.
