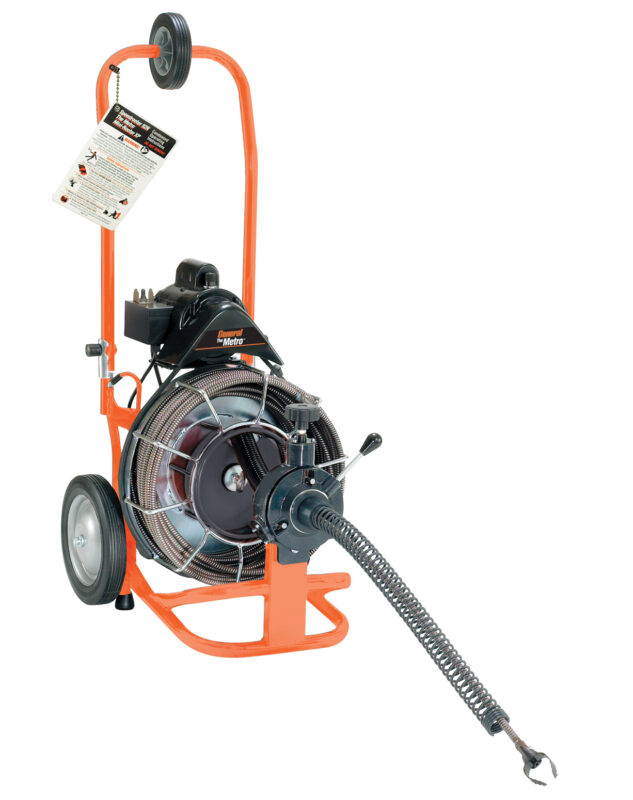

The Metro^® – Rental

A Tough Machine in a Compact, Lightweight Package

The variable speed power cable feed makes The Metro drain cleaning machine easier for your rental customers to use. The automatic feed drives the cable into the line at up to 20 feet per minute. Put the feed in reverse and it retracts the cable easily too.

The Power cable feed and guide tube combination allows the cable to feed smoothly into the line while keeping your customer’s hands clean and away from the spinning cable.

Built for rental abuse, the Metro’s heavy-duty reinforced frame takes rough handling in the field. The big 10” heavy-duty wheels and a truck loading wheel make it easier to transport the machine to and from the job. A cutter holder on the frame keeps all the cutters within easy reach. And the fold-down handle makes the machine more compact to take up less space in the truck.

With a capacity of up to 100 ft. of 9/16″ tough Flexicore® cable, the Metro drain cleaning machine clears 2″, 3” and most 4” lines up to 100 feet long.

Looking for Product Resources?

Instructions Literature Parts & Diagrams Video

Features

Built Here. Backed Here.

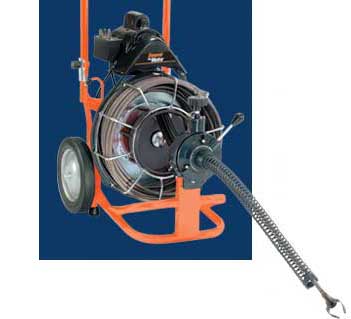

Power Cable Feed

The Metro’s power cable feed is real labor saver. It enables you to vary feeding speed in and out of the line and gives you better control when working tough stoppages

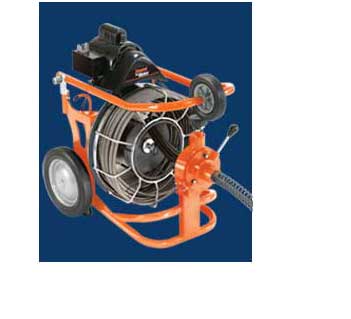

Folding Handle

The handle is tall enough to make it easy to move to the job, yet quickly folds to take less room in your truck.

Easily Transportable

Ten-inch heavy-duty semi-pneumatic wheels roll easily over rough terrain to and from the job. Truck loading wheel in the handle makes it easy for one person to lift the machine onto a truck bed.

Flexicore^® Cable

Heavy gauge wire is coiled around 49 strand wire rope and then heat treated. This cable has unequalled strength and the right amount of flexibility. It’s so tough, it has a one year warranty against defect or breakage.

Learn More

Reverse Switch

A momentary contact reverse switch protects the cable by preventing the operator from running the machine in reverse for more than a few seconds at a time.

Safety Slip Clutch

Reduces chance of cable tangling or injury to the operator. Allows V-belt to slip through pulley until torque is reduced.

Options

Snake-Oil Classic^™

A great way to extend the life of drain cleaning tools & equipment

Snake-Oil Classic^™ preserves and protects sewer cables against rust and corrosion. It’s better than common lubricants because its special rust inhibitor cuts through moisture and replaces it with a rust-resistant coating. You’ll significantly extend the life of your cables and sewer machine, including the drum, bearings and power cable feed rollers. Snake Oil Classic also includes a deodorizer to give equipment a fresh, clean smell. Available in quarts or gallons.

Snake-Oil Classic^™ SDS – Material Safety Data Sheet

Quick-Fix^™

General Pipe Cleaners’ Quick-Fix™ let’s you quickly repair broken drain snakes in the field. The unique Quick-Fix let’s you continue working and finish the job without having to go back to your shop to repair or replace a broken cable. The Quick-Fix is available in 1/2”, 9/16”, 5/8”, and 3/4” sizes with female or male connectors.

The specially designed spring with a pre-welded female connecter is easy to attach in the field. Prepare your broken snake by cutting off the damaged or kinked end of the cable with bolt cutters or a hack saw. Then simply thread the Quick-Fix over the broken snake. No welder is required! All you need are vice-grips or a pair of pliers. Once it’s on, the Quick-Fix holds on so tightly that it simply cannot be removed, even if you wanted to.

ClogChopper^®

Rip through tough stoppages with the unique ClogChopper^® multi-function cutting tools. Six self-sharpening blades dig into encrusted debris and root masses, easily grinding up stoppages, scale, and crystallized urine, without risking pipe damage.

The spherical design maneuvers around tight bends and traps, thoroughly and safely cleaning metal, plastic, and clay pipes. As it spins it also self-sharpens as it scrapes along the pipe walls. It’s excellent for clearing stacks, downspouts, mains, as well as for drain lining jobs.

Speedrooter 92R® – Rental

Gen-Eye X-POD Plus®

Cutter Sets

Arrow Head

Catalog #AH

Starting Drill (Gets water flowing)

1-1/2″ U-Cutter

Catalog #1-1/2 UC

For cutting and scraping

2″ U-Cutter

Catalog #2UC

For cutting and scraping

Small Retrieving Tool

Catalog #RTR-1

For removing loose objects and broken

Models

BOLD indicates best-selling units.

The Metro Units – Complete and Ready to Operate

Catalog #	Item #	Description	Weight
P-ME-B-O	103920	Metro with 75EM3A (75 ft. x 9/16”) Cable, Power Cable Feed, Guide Tube, and EJCS Cutter Set	118 lbs
P-ME-C-O	103930	Metro with 100EM3 (100 ft. x 9/16”) Cable, Power Cable Feed, Guide Tube, and EJCS Cutter Set	158 lbs

Cutter Set

Catalog #	Item #	Description	Weight
EJCS	130060	Cutter Set for 9/16″ Cables (Includes Arrow Head, 1-1/2″ U-Cutter, 2″ U-Cutter, and Small Retieving Tool)	1.5 lbs

Replacement Cables

Catalog #	Item #	Description	Weight
25EM3A	120940	Flexicore Cable, 9/16″ x 25 ft. with Male & Female Connectors	14 lbs
50EM3A	120950	Flexicore Cable, 9/16″ x 50 ft. with Male & Female Connectors	26 lbs
75EM3A	120960	Flexicore Cable, 9/16″ x 75 ft. with Male & Female Connectors	39 lbs
100EM3	121090	Flexicore Cable, 9/16″ x 100 ft. with Male & Female Connectors	51 lbs

Parts & Accessories

Catalog #	Item #	Description	Weight
PO-ME	166420	Metro Power Cable Feed & Guide Tube	6 lbs
ME-GT	174650	Guide Tube for Metro	5 lbs
GTE	146160	Guide Tube Extension	2 lbs
ME-610-B	136070	Foot Pedal with Hose	–
ME-610-E	136080	Power Switch Diaphragm	–
ME-610-G-R	136210	Momentary Contact Reverse Switch	–
GFI-20	136000	Ground Fault Circuit Interrupter with 20 ft. cord	2 lbs
LG	130410	Leather Gloves	1 lb
PO-703	136110	Set of feed rollers (3) for Power Cable Feed	–
1-1/2CG	128810	1-1/2” ClogChopper	1 lb
2CG	128820	2” ClogChopper	1 lb
1/2QF	130855	1/2” Quick-Fix	1 lb
9/16QF	130856	9/16” Quick-Fix	1 lb
SOQ	440120	1 Quart Snake-Oil Classic	2 lbs
SOG	440150	1 Gallon Snake-Oil Classic	7.5 lbs

Specifications

Weight:
92 lbs. (42 kg) without cable

Dimensions:
27” deep x 18-1/2” wide x 46” high–26” (66cm) high with handle folded down (68cm x 47cm x 117cm).

Drum Capacity:
100 ft. x 9/16” (30m x 12.7mm)

Drum Removal:
Remove two bolts and slide drum off shaft.

Motor:
1/3 hp with capacitor start, forward-off-reverse switch, 20 ft. power cord and ground fault circuit interrupter.

Foot Switch:
Pneumatic, with no electrical contact between pedal and motor.

Power Cable Feed:
Drives and retracts cable at variable speed without having to reverse motor rotation.

Wheels:
10” Heavy-duty semi-pneumatic with ball bearings

Wheel brake:
Passive wheel brake system holds the machine in place on the job and in the truck.

Folding handle:
Tall enough to make it easy to move to the job, yet quickly folds to take less room in vehicle.

Truck Loading Wheel:
Enables one person to lift machine into truck bed.

Cutter Holder:
Cutter Holder on the frame keeps all the cutters within easy reach.

Instructional Video included.
