Easy Rooter^® – Rental

Job Tested Tough

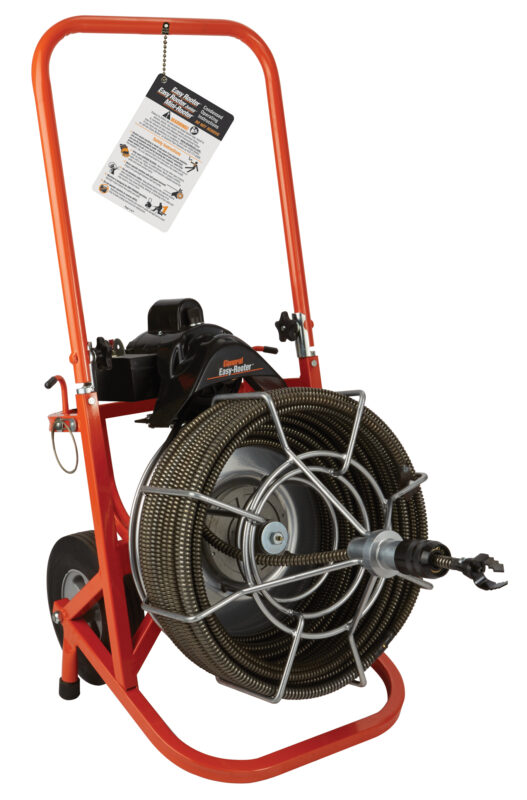

The Easy Rooter is a tough, easy-to-use sewer and drain cleaning machine. Built for rental abuse, it has a rugged powder coated steel frame with special “roll bars” to protect the motor and heavy-duty roller bearings in the cage for longer life and greater motor efficiency on long runs. The cage holds 100 feet of 3/4″ or 5/8″ Flexicore® cable to clear tree roots and other difficult obstructions in 3” to 10” drain lines up to 100 feet long.

The patented Quick-Grip™ chuck secures the cable during operation. With a just a quarter turn, the chuck tightens firmly on the cable to secure it while the Easy Rooter drives the cable into the line. It can be released just as quickly to pull more cable from the cage. It’s faster and easier to use than a thumb screw.

The Easy Rooter comes with a rugged cage cover to protect customers, surroundings, and equipment from dripping cables and water spray from the spinning cage. The durable, heavy-duty, poly canvas cover fits snuggly around the cage to keep your customers clean and dry, yet it can be easily removed for cable inspection or cleaning between rentals. Replacement cage covers are available separately (Cat # ER-CV).

Power is supplied by a 1/3 hp capacitor motor with thermal overload protection. A momentary contact reverse switch protects the cable by preventing the operator from running the machine in reverse for more than a few seconds at a time.

Standard safety features include an air actuated foot pedal, ground fault circuit interrupter, safety slip clutch, and instructional video in English, French, and Spanish.

Looking for Product Resources?

Instructions Literature Parts & Diagrams Video

Features

Clear tree roots and other difficult obstructions in 3” to 10” drain lines.
Cage holds 100 feet of 3/4″ or 5/8″ Flexicore cable.
Patented Quick-Grip™ chuck secures the cable during operation.
Rugged cage cover protects customers from water spray from the spinning cage.
Rugged powder coated steel frame.
Special “roll bars” to protect the motor.

Extra-long folding handle quickly locks in place.
Rolls smoothly on big 10″ ball bearing wheels.
1/3 hp capacitor motor with thermal overload protection.
Momentary contact reverse switch to protect the cable.
Safety features include: Air actuated foot pedal, ground fault circuit interrupter, and safety slip clutch.
Built Here. Backed Here.

Quick-Grip™ Chuck

A patented chuck secures the cable during operation. With just a quarter turn, the chuck tightens firmly on the cable. It’s faster and easier to use than a thumb screw.

Momentary Contact Reverse Switch

A momentary contact reverse switch protects the cable by preventing the operator from running the machine in reverse for more than a few seconds at a time.

Safety Slip Clutch

Reduces chance of cable tangling or injury to the operator. Allows V-belt to slip through pulley until torque is reduced

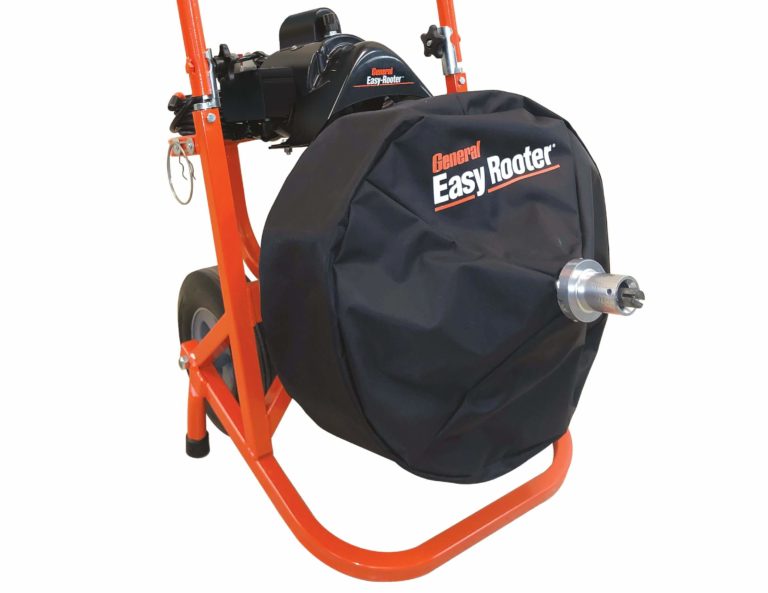

Cage Cover

A rugged cage cover protects users from water spray from the spinning cage. The durable, heavy-duty, poly canvas cover fits snuggly around the cage to keep your customers clean and dry, yet it can be easily removed for cable inspection or cleaning between rentals. Replacement cage covers are available separately (Cat # ER-CV).

Folding Handle

Handle folds down for more compact storage and to take less space in car trunk.

Flexicore^® Cable

Heavy gauge wire is coiled around 49 strand wire rope and then heat treated. This cable has unequalled strength and the right amount of flexibility. It’s so tough, it has a one year warranty against defect or breakage.

Learn More

Options

Snake-Oil Classic^™

A great way to extend the life of drain cleaning tools & equipment

Snake-Oil Classic^™ preserves and protects sewer cables against rust and corrosion. It’s better than common lubricants because its special rust inhibitor cuts through moisture and replaces it with a rust-resistant coating. You’ll significantly extend the life of your cables and sewer machine, including the drum, bearings and power cable feed rollers. Snake Oil Classic also includes a deodorizer to give equipment a fresh, clean smell. Available in quarts or gallons.

Snake-Oil Classic^™ SDS – Material Safety Data Sheet

Quick-Fix^™

General Pipe Cleaners’ Quick-Fix^™ let’s you quickly repair broken drain snakes in the field. The unique Quick-Fix let’s you continue working and finish the job without having to go back to your shop to repair or replace a broken cable. The Quick-Fix is available in 1/2”, 9/16”, 5/8”, and 3/4” sizes with female or male connectors.

The specially designed spring with a pre-welded female connecter is easy to attach in the field. Prepare your broken snake by cutting off the damaged or kinked end of the cable with bolt cutters or a hack saw. Then simply thread the Quick-Fix over the broken snake. No welder is required! All you need are vice-grips or a pair of pliers. Once it’s on, the Quick-Fix holds on so tightly that it simply cannot be removed, even if you wanted to.

ClogChopper^®

Rip through tough stoppages with the unique ClogChopper^® multi-function cutting tools. Six self-sharpening blades dig into encrusted debris and root masses, easily grinding up stoppages, scale, and crystallized urine, without risking pipe damage.

The spherical design maneuvers around tight bends and traps, thoroughly and safely cleaning metal, plastic, and clay pipes. As it spins it also self-sharpens as it scrapes along the pipe walls. It’s excellent for clearing stacks, downspouts, mains, as well as for drain lining jobs.

Speedrooter 92R® – Rental

JM-2900

Cutter Sets

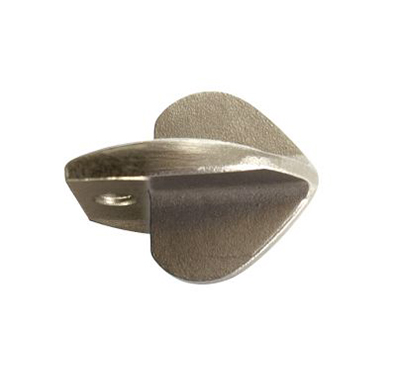

Spear Head

Catalog #SHD

Starting Drill (Gets water flowing)

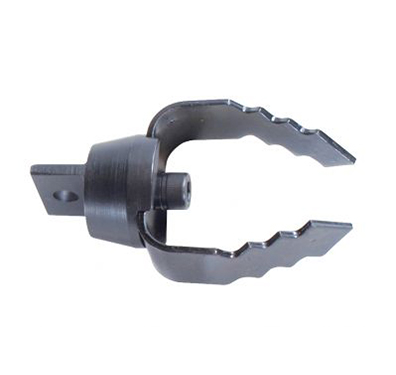

2″ U-Cutter

Catalog #2UC

For cutting and scraping

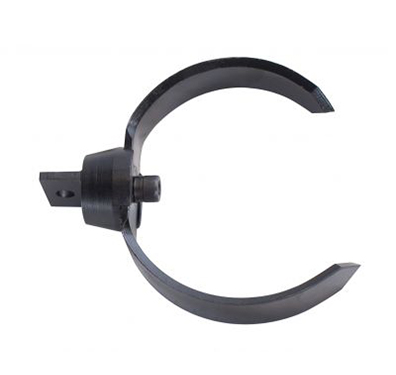

3″ Heavy Duty Side Cutter

Catalog #3HDSC

For cutting and scraping

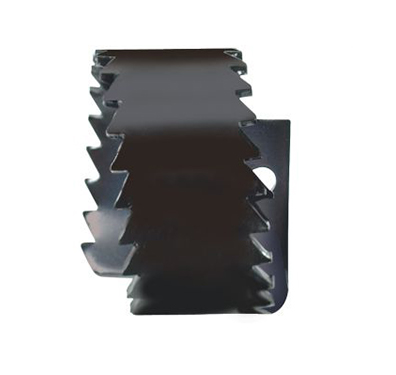

3″ Heavy Duty Saw Blade

Catalog #3HDB

For roots and other stoppages

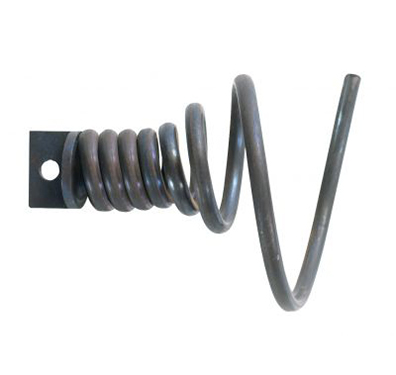

Large Retrieving Tool

Catalog #RTR-2

For removing loose objects and broken cables

Models

BOLD indicates best-selling units.

Easy Rooter – Complete and ready to operate

Catalog #	Item #	Description	Weight
ER-D	110240	Easy Rooter with 100EM5 (100′ x 3/4″) Flexicore Cable and SRCS-R Cutter Set.	199 lbs
ER-E	110250	Easy Rooter with 100EM4 (100′ x 5/8″) Flexicore Cable and SRCS-R Cutter Set.	177 lbs

Cutter Set

Catalog #	Item #	Description	Weight
SRCS-R	130080	Easy Rooter Cutter Set (Includes Spear Head, 2″ U-Cutter, 3″ Heavy-Duty Side Cutter, 3″ Heavy-Duty Saw Blade, Large Retrieving Tool)	2 lbs

Replacement Cables

Catalog #	Item #	Description	Weight
25EM4	122010	Flexicore Cable, 5/8″ x 25 ft. with Male & Female Connectors	20 lbs
50EM4	122020	Flexicore Cable, 5/8″ x 50 ft. with Male & Female Connectors	41 lbs
75EM4	122030	Flexicore Cable, 5/8″ x 75 ft. with Male & Female Connectors	61 lbs
100EM4	122040	Flexicore Cable, 5/8″ x 100 ft. with Male & Female Connectors	80 lbs
25EM5	122050	Flexicore Cable, 3/4″ x 25 ft. with Male & Female Connectors	25 lbs
50EM5	122060	Flexicore Cable, 3/4″ x 50 ft. with Male & Female Connectors	51 lbs
75EM5	122070	Flexicore Cable, 3/4″ x 75 ft. with Male & Female Connectors	74 lbs
100EM5	122080	Flexicore Cable, 3/4″ x 100 ft. with Male & Female Connectors	101 lbs

Parts & Accessories

Catalog #	Item #	Description	Weight
ER-303-1	166125	Quick-Grip Chuck for Easy Rooter	2 lbs
ER-CV	165056	Easy Rooter Cage Cover	–
GFI-20	136000	Ground Fault Circuit Interrupter with 20 ft. cord	2 lbs
LG	130410	Leather Gloves	1 lb
ER-207-B	136070	Foot Pedal with Hose	–
ER-207-E	136080	Power Switch Diaphragm	–
ER-207-G-R	136210	Reverse Switch	–
ER-204-1	136180	Slip Clutch	1 lb
2CG	128820	2” ClogChopper	1 lb
2-1/2CG	128830	2-1/2” ClogChopper	1 lb
3CG	128880	3” ClogChopper	2 lbs
4CG	128890	4” ClogChopper	3 lbs
5/8QF	130860	5/8” Quick-Fix	1 lb
3/4QF	130870	3/4” Quick-Fix	1 lb
SOQ	440120	1 Quart Snake-Oil Classic	2 lbs
SOG	440150	1 Gallon Snake-Oil Classic	7.5 lbs

Specifications

Weight:
80 lbs. without cable.(36 kg)

Cage:
100 ft. of 3/4″ or 5/8” capacity with heavy duty roller bearings

Motor:
1/3 hp heavy duty, capacitor start, thermal overload protection, Forward/Off/Momentary Contact Reverse Switch.

Safety Slip Clutch:
Protects cable and operator.

Foot Pedal:
Leaves operator‘s hands free to control cable. Uses air pressure, so there’s no electrical contact between pedal and motor.

Power Cord:
20 ft. 3-wire vinyl covered with molded plug. Equipped with ground fault circuit interrupter.

Wheels:
10″ Semi-pneumatic tires, with roller bearings.

Cables:
3/4″ for 4-10″ lines; 5/8″ for 3-6″ lines.

Cutter Set:
Spear Head, 2″ U-Cutter, 3″ Heavy-Duty Side Cutter, 3″ Heavy-Duty Saw Blade and Large Retriever.

Leather Gloves:
With double-reinforced palm, for hand protection when guiding cable.
