Flexicore® Cable
Heavy gauge wire is coiled around 49 strand wire rope and then heat treated. This cable has unequalled strength and the right amount of flexibility. It’s so tough, it has a one year warranty against defect or breakage.
Drain Cleaning Cables
1/4″ Diameter Cables
| Catalog # | Dimensions | Description |
| 25HE1 | 1/4″ x 25 ft. | Flexicore® with EL Basin Plug head |
| 50HE1 | 1/4″ x 50 ft. | Flexicore® with EL Basin Plug head |
| 25HE1-DH | 1/4″ x 25 ft. | Flexicore® with Down head |
| 50HE1-DH | 1/4″ x 50 ft. | Flexicore® with Down head |
| 25HE1-DDH | 1/4″ x 25 ft. | Flexicore® with Double Down Head |
| 50HE1-DDH | 1/4″ x 50 ft. | Flexicore® with Double Down Head |
5/16″ Diameter Cables
| Catalog # | Dimensions | Description |
| 25HE1A | 5/16″ x 25 ft. | Flexicore® with EL Basin Plug head |
| 50HE1A | 5/16″ x 50 ft. | Flexicore® with EL Basin Plug head |
| 25HE1A-DH | 5/16″ x 25 ft. | Flexicore® with Down head |
| 50HE1A-DH | 5/16″ x 50 ft. | Flexicore® with Down head |
| 25HE1AC | 5/16″ x 25 ft. | Flexicore® with Female Connector |
| 50HE1AC | 5/16″ x 50 ft. | Flexicore® with Female Connector |
3/8″ Diameter Cables for Super-Vee, Power-Vee, Handylectric, & Drain Rooter
| Catalog # | Dimensions | Description |
| 25HE2 | 3/8″ x 25 ft. | Flexicore® with Female Connector |
| 35HE2 | 3/8″ x 35 ft. | Flexicore® with Female Connector |
1/2″ Diameter Cables
| Catalog # | Dimensions | Description |
| 25EM3 | 1/2″ x 25 ft. | Flexicore® with Male & Female Connector |
| 50EM3 | 1/2″ x 50 ft. | Flexicore® with Male & Female Connector |
| 75EM3 | 1/2″ x 75 ft. | Flexicore® with Male & Female Connector |
| 100EM3 | 1/2″ x 100 ft. | Flexicore® with Male & Female Connector |
9/16″ Diameter Cables
| Catalog # | Dimensions | Description |
| 25EM3A | 9/16″ x 25 ft. | Flexicore® with Male & Female Connector |
| 50EM3A | 9/16″ x 50 ft. | Flexicore® with Male & Female Connector |
| 75EM3A | 9/16″ x 75 ft. | Flexicore® with Male & Female Connector |
| 100EM3A | 9/16″ x 100 ft. | Flexicore® with Male & Female Connector |
5/8″ Diameter Cables
| Catalog # | Dimensions | Description |
| 25EM4 | 5/8″ x 25 ft. | Flexicore® with Male & Female Connector |
| 50EM4 | 5/8″ x 50 ft. | Flexicore® with Male & Female Connector |
| 75EM4 | 5/8″ x 75 ft. | Flexicore® with Male & Female Connector |
| 100EM4 | 5/8″ x 100 ft. | Flexicore® with Male & Female Connector |
3/4″ Diameter Cables
| Catalog # | Dimensions | Description |
| 25EM5 | 3/4″ x 25 ft. | Flexicore® with Male & Female Connector |
| 50EM5 | 3/4″ x 50 ft. | Flexicore® with Male & Female Connector |
| 75EM5 | 3/4″ x 75 ft. | Flexicore® with Male & Female Connector |
| 100EM5 | 3/4″ x 100 ft. | Flexicore® with Male & Female Connector |
Sectional Drain Cleaning Cables with General® Connectors
Sections for I-95, Root 66, Model 88, Hot-Rodder and Rodrunner come in the all purpose Flexichain which has a chain center, a stiffer Proflex which has a spring center, and a hollow style. Proflex is also available with a heavier duty 5/8″ spring center. Choose from three coupling styles. They snap together in a second and are taken apart quickly with a spanner wrench or uncoupling key. With the more recently developed “G” connector, no torque is put on the locking pin when running in reverse, making it a durable coupling.
| Catalog # | Dimensions |
| 10GF | 1-1/4″ x 10 ft. Flexichain |
| 10GP | 1-1/4″ x 10 ft. Proflex |
Sectional Drain Cleaning Cables Compatible with Electric Eel® Connectors
| Catalog # | Dimensions |
| 4LPS | 1-1/4″ x 4 ft. 1/2″ Proflex/Extra Space |
| 8LF | 1-1/4″ x 8 ft. Flexichain |
| 8LP | 1-1/4″ x 8 ft. 1/2″ Proflex |
| 8LPS | 1-1/4″ x 8 ft. 1/2″ Proflex/Extra Space |
| 10LF | 1-1/4″ x 10 ft. Flexichain |
| 10LP | 1-1/4″ x 10 ft. 1/2″ Proflex |
| 10LHD | 1-1/4″ x 10 ft. 5/8″ Proflex |
| 6L78 | 7/8″ x 6 ft. 7/16″ Proflex |
Sectional Drain Cleaning Cables Compatible with Ridgid® Cables
| Catalog # | Dimensions |
| 7.5R-7 | 5/8″ x 7-1/2 ft. Close-Wound |
| 7.5R-8 | 5/8″ x 7-1/2 ft. Open-Wound |
| 5R-10 | 7/8″ x 5 ft. Open-Wound |
| 15R-10 | 7/8″ x 15 ft. Open-Wound |
| 15R-10-P | 7/8″ x 15 ft. Proflex |
| 15R-11 | 1-1/4″ x 15 ft. Standard Duty |
| 15R-14 | 1-1/4″ x 15 ft. Heavy Duty |
| 25R1-A | 5/16″ x 25 ft. Hollow |
Cutters
For 3/8″ Cables
| Cutter Name | Part # | Application | Photo |
| Arrow Head | AH | Starting Drill (Gets water flowing) |  |
| Flexible Arrow Head | FAH | Starting Drill (For sharp turns in small lines) |  |
| Boring Gimlet | BG | For removing loose objects |  |
| Downhead Boring Gimlet | DHBG | For removing loose objects (Goes down waste, not up stack) |  |
| Down Head Fitting | DHF | Converts standard cutter to downhead cutter |  |
| 1-1/4″ Side Cutter Blade | 1-1/4 SCB | For cutting and scraping |  |
| 1-1/2″ U-Cutter | 1-1/2 UC | For cutting and scraping |  |

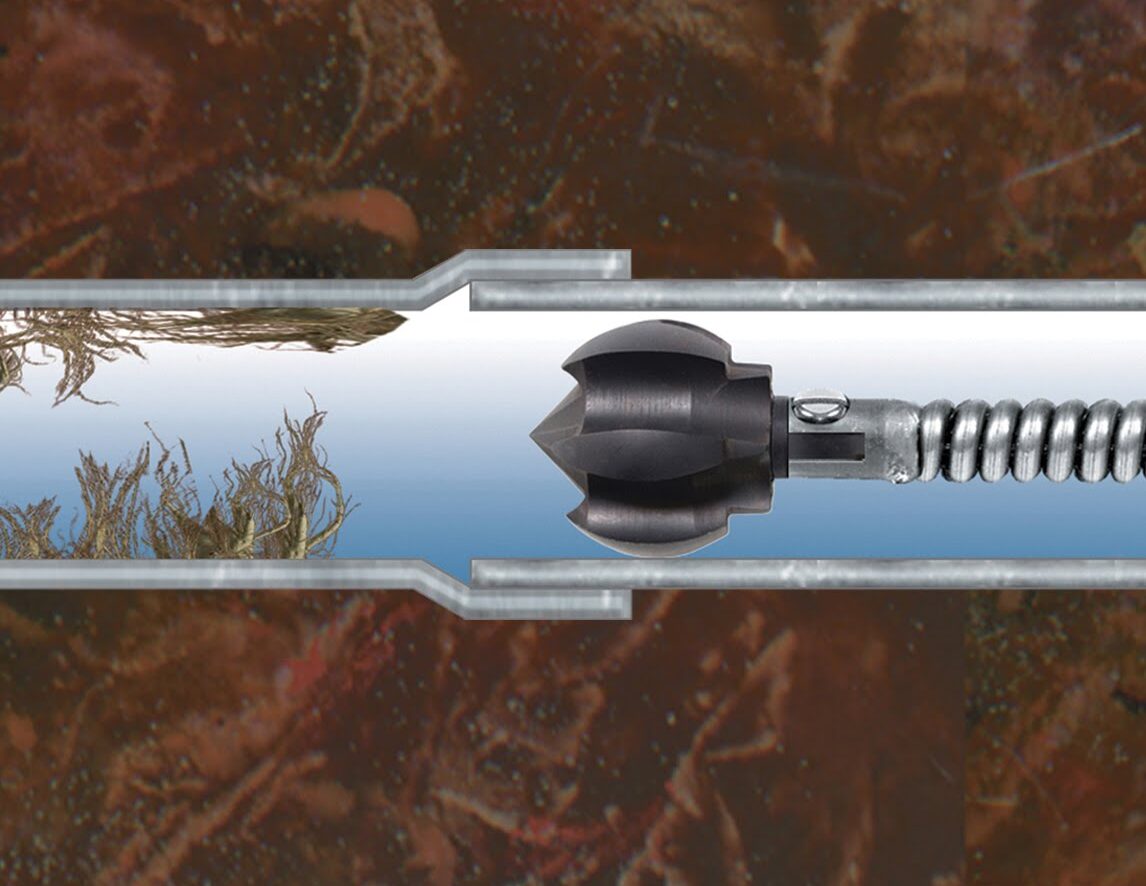

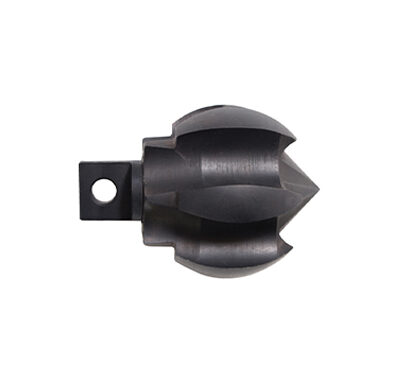

| ClogChopper ® | 1CG 1-1/2 CG |
Clears debris, scale, and crystallized urine. For 5/16″ and 3/8″ cable. |  |
| Small Retrieving Tool | RTR-1 | For removing loose objects and broken cables |  |
For 1/2″ and 9/16″ Cables
| Cutter Name | Part # | Application | Photo |
| Arrow Head | AH | Starting Drill (Gets water flowing) | |
| Boring Gimlet | BG | For removing loose objects | |
| Down Head Fitting | DHF | Converts standard cutter to downhead cutter | |
| 2″, 3″ & 4″ Side Cutter Blades | 2SCB 3SCB 4SCB |
For cutting and scraping |  |
| 1-1/2″ & 2″ U-Cutter | 1-1/2 UC 2UC |
For cutting and scraping |  |
| 3″ & 4″ Rotary Saw Blades | 3RSB 4RSB |
For cutting and scraping |  |
| ClogChopper ® | 2CG 2-1/2 CG |
Clears debris, scale, and crystallized urine. For 5/16″ and 3/8″ cable. | |
| Small Retrieving Tool | RTR-1 | For removing loose objects and broken cables | |
| 13″ Flexible Leader | LE-1 | Helps cable get around tight bends and traps |  |
For 5/8″ and 3/4″ Cables
| Cutter Name | Part # | Application | Photo |
| Spear Head | SHD | Starting Drill (Gets water flowing) |  |
| 2″, 3″ & 4″ Side Cutter Blades | 2SCB 3SCB 4SCB |
For cutting and scraping | |
| 2″, 3″, & 4″ U-Cutter | 2UC 3UC 4UC |
For cutting and scraping | |
| 3″ & 4″ Spider™ Double U-Cutter | 3DUC 4DUC |
For cutting and scraping going into and out of the pipe | |
| 3″ & 4″ Heavy Duty Side Cutter | 3HDSC 4HDSC |
For cutting and scraping |  |
| 3″ & 4″ Spider™ Double Heavy Duty Side Cutter | 3DHDSC 4DHDSC |
For cutting and scraping going into and out of the pipe |  |
| 3″ & 4″ Rotary Saw Blades | 3RSB 4RSB |
For roots and other stoppages | |
| 3″ & 4″ Heavy Duty Saw Blade | 3HDB 4HDB |
For roots and other stoppages |  |
| Self Adjusting 4″ to 6″ Side Cutter Blades | 4-6SAC | Can pass through 4″ pipe to reach and clean 6″ pipe. |  |
| Heavy Duty 3″ to 6″ Expansion Cutter | 3-6HDEC | Can pass through 3″ pipe to reach and clean 6″ pipe. Can be put through 4″ P-traps. |  |
| Root Ripper™ | RP-2 | Heavy spring screws into root mass, while front hook tears into stoppage. Passes through 4″ P-traps. |  |
| ClogChopper ® | 2CG 2-1/2CG 3CG 4CG |
Maneuverable cutter clears roots, debris and scale. Available with connector to match General or other brands. | |
| Large Retrieving Tool | RTR-2 | For removing loose objects and broken cables |  |
| 33″ Flexible Leader | LE-2 | Helps cable get around tight bends and traps |  |
| 26″ Flexible Leader | LE-3 | Helps cable get around tight bends and traps |  |
For 5/8″ Sectional Cables
| Cutter Name | Part # | Application | Photo |
| Arrow Head | R-AH | Starting Drill (Gets water flowing) |  |
| Boring Gimlet | R-BG | For removing loose objects |  |
| 1-1/2″ U-Cutter | R-1-1/2 UC | For cutting and scraping |  |
| Retrieving Tool | R-RTR-1 | For removing loose objects and broken cables | |
| Coupling Key | RCK-8 | To disconnect cables and cutters |  |
For 7/8″ Sectional Cables
| Cutter Name | Part # | Application | Photo |
| Hook Auger | R-HA-10 | For removing loose objects |  |
| Spear Head | R-SHD-10 | Starting Drill (Gets water flowing) |  |
| 2″ & 3″ U-Cutter | R-2UC-10 R-3UC-10 |
For cutting and scraping |  |
| Retrieving Tool | R-RTR-10 | For removing loose objects and broken cables |  |
| Coupling Key | RCK-10 | To disconnect cables and cutters | |
1-1/4″ Sectional Cable
| Cutter Name | Part # | Application | Photo |
| Spear Head | G-SHD | Starting Drill (Gets water flowing) |  |
| Spade Cutter | G-SC | Starting Drill (Gets water flowing) |  |
| Flex-Spear | G-FSH | Helps cable get around tight bends and traps |  |
| Hook Auger | G-HA | For removing loose objects and broken cables |  |
| Bulb Auger | G-BA | For removing loose objects |  |
| 2″ U-Cutter | G-2UC | For cutting and scraping |  |
| 3″ & 4″ Heavy Duty Side Cutter Blades | G-3HDSC G-4HDSC |
For cutting and scraping |  |
| 3″ & 4″ Rotary Saw Blades | G-3RSB G-4RSB |
For roots and other stoppages |  |
| 3″ & 4″ Heavy Duty Saw Blade | G-3HDB G-4HDB |
For roots and other stoppages |  |
| Root Ripper™ | G-RP-2 | Heavy spring screws into root mass, while front hook tears into stoppage. Passes through 4″ P-traps. | |
| ClogChopper ® | G-2CG G-2-1/2CG G-3CG G-4CG |
Maneuverable cutter clears roots, debris and scale. Available with connector to match General or other brands. |  |
| Retrieving Tool | G-RTR-2 | For removing loose objects and broken cables | |
| Cutter Adapter | G-CA L-CA R-CA S-CA |
Converts standard cutters to ‘G’, ‘L’, ‘R’, or ‘S’ connectors. |  |
| Coupling Wrench | CW | To disconnect ‘G’ and ‘L’ cables and cutters |  |
| Coupling Key | RCK-11 | Coupling Key for R Cables | |
Connectors
| Connector Name | Part # | Application | Photo |
| Female Connector – Cup Type | 5/16H-FC 3/8H-FC 1/2FC 5/8FC-O 3/4FC-O |
Sheath fits over cable for easier repairs. For 5/16″, 3/8″, 1/2″, 5/8″, and 3/4″ cables. |  |
| Male Connector – Cup Type | 3/8H-MC /2MC 5/8MC-O 3/4MC-O |
Sheath fits over cable for easier repairs. For 3/8″, 1/2″, 5/8″, and 3/4″ cables. |  |
| Female Connector – Butt-Weld | 5/8FC 3/4FC | Passes through automatic feeds. No need to adjust feed. For 5/8″ and 3/4″ cables. |  |
| Male Connector – Butt-Weld | 5/8MC 3/4MC |
Passes through automatic feeds. No need to adjust feed. For 5/8″ and 3/4″ cables. | |
| Quick-Fix with Female Connector | 1/2QF 9/16QF 5/8QF 3/4QF |
Just screw on tightly and it won’t come off. For 1/2″, 9/16″ 5/8″, and 3/4″ cables. |  |
| Quick-Fix with Male Connector | 1/2MQF 9/16MQF 5/8MQF |
Just screw on tightly and it won’t come off. For 1/2″, 9/16″, and 5/8″ cables. | |
| Repair Sleeve | 1/2RS 5/8RS 3/4RS |
For 1/2″, 5/8″ and 3/4″ cables. |  |
| Connecting Screws | 3/8CS 1/2CS 5/8CS 3/4CS |
For 5/16″, 3/8″, 1/2″, 5/8″ and 3/4″ cables. Sold in 5 packs. |
| Connector Name | Part # | Application | Photo |
| 1-1/4″ Male G Connector | G-5 | 1-1/4″ G Cables |  |
| 1-1/4″ Female G Conector | G-6 | 1-1/4″ G Cables | |
| 7/8″ Male L Connector | L-3 | 7/8″ L Cables |  |
| 7/8″ Female L Connector | L-4 | 7/8″ L Cables |  |
| 1-1/4″ Male L Connector | L-5 | 1-1/4″ L Cables | |
| 1-1/4″ Female L Connector | L-6 | 1-1/4″ L Cables | |
| 5/8″ Male R Connector | R-1 | 5/8″ R Cables | |
| 5/8″ Female R Connector | R-2 | 5/8″ R Cables |  |
| 7/8″ Male R Connector | R-3 | 7/8″ R Cables |  |
| 7/8″ Female R Connector | R-4 | 7/8″ R Cables |  |
| 1-1/4″ Male R Connector | R-5 | 1-1/4″ R Cables | |
| 1-1/4″ Female R Connector | R-6 | 1-1/4″ R Cables | |
| 10 ft. Outer Spring | 10G1 | For G or L Cables | |
| 8 ft. Outer Spring | 8G1 | For G or L Cables | |
| 10 ft. Inner Spring | 10P2 | For G or L Cables | |
| 8 ft. Inner Spring | 8P2 | For G or L Cables |
