Model DRZ-PH^™

Quick, Clean, Quiet

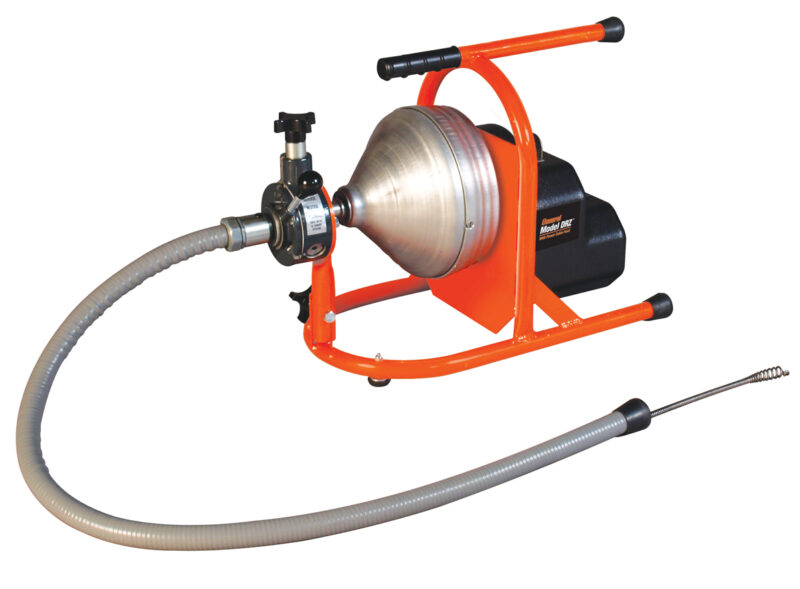

Looking for a cleaner way to clean drains? The Model DRZ-PH with automatic feed is the answer. Light and powerful for its size, this compact drain cleaning machine is ideal for clearing clogged sinks, tubs, and laundry drains in 1-1/4″ to 3″ drain lines up to 50 ft. long.

No need to wear your arms out holding a heavy machine over the drain or under the sink. The compact design let’s you operate the machine horizontally on the kitchen counter or vertically on the floor next to the tub. Use the pneumatic pedal to keep your hands free to control the feed and guide hose. And the silent motor won’t disturb your customers while on the job.

The variable speed power cable feed gives you complete control as it feeds and retrieves the cable at up to 16 ft per minute. The four foot guide tube means you never have to touch the cable – so your hands, and the jobsite, stay clean.

The rust resistant aluminum drum carries up to 50′ of 1/4″ or 5/16″, or 35′ of 3/8″ Flexicore® wire rope center cable.

Model DRZ-PH also comes with the new Band-It™ splashguard to minimize excess water spray from the spinning drum.

Looking for Product Resources?

Instructions Literature Parts & Diagrams Video

Features

Clears clogged sinks, tubs, and laundry drains in 1-1/4” to 3” lines.
Compact, lightweight small line drain cleaner with easy carrying handle on top.
Variable speed power cable feed drives and retrieves cable at up to 16 ft. per minute.
Four foot guide tube keeps hands, and jobsite, clean.
Powerful yet silent motor spins cables up to 50 ft. down the line.
Band-It™ splashguard minimizes excess water spray from the spinning drum.

Quick-change cable cartridge system allows clean and easy cable changes.
Rugged rust resistant aluminum drum can carry 50 ft. of 1/4″ or 5/16”, or 35 ft. of 3/8” Flexicore cable.
Flexicore wire rope center cables have unequalled strength yet the right amount of flexibility.
Built Here. Backed Here.

Variable Speed Power Cable Feed

Gives you complete control as it feeds and retrieves the cable at up to 16 ft. per minute. The four foot guide tube means you never have to touch the cable so your hands, and the jobsite, stay clean.

Versatile Operation

Weighing as little as 30 lbs. the compact design lets you operate the machine horizontally on the kitchen counter or vertically on the floor next to the tub.

Powerful Motor

The silent motor is powerful enough to clear the line quickly yet won’t disturb your customers while on the job.

Cartridge Refill System

To switch to a different diameter cable, you just loosen three screws, pull the front of the drum off the cable, and load another cartridge. Changing takes less than a minute and turns what could be a messy job into a clean one. The tough plastic cartridges are so inexpensive, you’ll probably want to store all of your cables in them.

Flexicore^® Cable

Heavy gauge wire is coiled around 49 strand wire rope and then heat treated. This cable has unequalled strength and the right amount of flexibility. It’s so tough, it has a one year warranty against defect or breakage.

Learn More

Options

Snake-Oil Classic^™

A great way to extend the life of drain cleaning tools & equipment

Snake-Oil Classic^™ preserves and protects sewer cables against rust and corrosion. It’s better than common lubricants because its special rust inhibitor cuts through moisture and replaces it with a rust-resistant coating. You’ll significantly extend the life of your cables and sewer machine, including the drum, bearings and power cable feed rollers. Snake Oil Classic also includes a deodorizer to give equipment a fresh, clean smell. Available in quarts or gallons.

Snake-Oil Classic^™ SDS – Material Safety Data Sheet

ClogChopper^®

Rip through tough stoppages with the unique ClogChopper^® multi-function cutting tools. Six self-sharpening blades dig into encrusted debris and root masses, easily grinding up stoppages, scale, and crystallized urine, without risking pipe damage.

The spherical design maneuvers around tight bends and traps, thoroughly and safely cleaning metal, plastic, and clay pipes. As it spins it also self-sharpens as it scrapes along the pipe walls. It’s excellent for clearing stacks, downspouts, mains, as well as for drain lining jobs.

Power-Vee®

JM-1450

Cutter Sets

Arrow Head Starting Drill

Catalog #AH

Starting Drill (Gets water flowing)

Boring Gimlet

Catalog #BG

For removing loose objects

Down Head Boring Drill

Catalog #DHBG

For removing loose objects
(Goes down waste, not up stack)

Flexible Spring Arrow Head Cutter Starting Drill

Catalog #FAH

(For sharp turns and small lines)

1-1/4″ Side Cutter Blade (2-piece set)

Catalog #1-1/4 SCB

For cutting and scraping

Models

BOLD indicates best-selling units.

Model DRZ-PH with Power Cable Feed – Complete and Ready to Operate

Basic Unit Includes: Aluminum Drum, Variable Speed Power Cable Feed, Four Foot Guide Hose, 1/5 hp Motor w/Reverse Switch, Water-Proof Air Foot Switch, Quick Change Plastic Cartridge.

Catalog #	Item #	Description	Weight
DRZ-PH-A	105710	DRZ-PH-A with 50 ft. x 5/16″ (50HE1-A-DH) cable.	40 lbs
DRZ-PH-B	105720	DRZ-PH-B with 50 ft. x 5/16″ (50HE1-AC) cable, and HECS cutter set.	40 lbs
DRZ-PH-C	105730	DRZ-PH-C with 35 ft. x 3/8″ (35HE2) cable, and HECS cutter set.	38 lbs
DRZ-PH-D	105740	DRZ-PH-D with 50 ft. x 1/4″ (50HE1-DH) cable.	37 lbs

Cutter Set

Catalog #	Catalog #	Description	Weight
HECS	130010	Handylectric Cutter Set (Includes Arrow head, Flexible Arrow Head, 1-1/4″ Side Cutter Blade, Boring Gimlet, & Down Head Boring Gimlet)	0.5 lbs

Replacement Cables

Catalog #	Item #	Description	Weight
25HE1	120010	Flexicore Cable, 1/4″ x 25 ft. with EL Basin Head	4 lbs
35HE1	119990	Flexicore Cable, 1/4″ x 35 ft. with EL Basin Head	6 lbs
50HE1	120020	Flexicore Cable, 1/4″ x 50 ft. with EL Basin Head	8 lbs
25HE1-DH	120030	Flexicore Cable, 1/4″ x 25 ft. with Down Head	5 lbs
35HE1-DH	119980	Flexicore Cable, 1/4” x 35’ with Down Head	–
50HE1-DH	120040	Flexicore Cable, 1/4″ x 50 ft. with Down Head	9 lbs
25HE1A	120070	Flexicore Cable, 5/16″ x 25 ft. with EL Basin Head	6 lbs
50HE1A	120080	Flexicore Cable, 5/16″ x 50 ft. with EL Basin Head	12 lbs
25HE1-A-DH	120090	Flexicore Cable, 5/16″ x 25 ft. with Down Head	6 lbs
50HE1-A-DH	120100	Flexicore Cable, 5/16″ x 50 ft. with Down Head	12 lbs
25HE1-AC	120110	Flexicore Cable, 5/16″ x 25 ft. with Female Connector	6 lbs
50HE1-AC	120130	Flexicore Cable, 5/16″ x 50 ft. with Female Connector	12 lbs
25HE2	120160	Flexicore Cable, 3/8″ x 25 ft. with Female Connector	7 lbs
35HE2	120170	Flexicore Cable, 3/8″ x 35 ft. with Female Connector	10 lbs

Parts & Accessories

Catalog #	Item #	Description	Weight
BNDT	140840	Band-It™ Splashguard	–
DRZ-502-H	158120	Power-Switch	1 lb
PH-7200	157425	Set of Feed Roller Assemblies for Power Cable Feed	0.5 lbs
1CG	128800	1” ClogChopper	1 lb
1-1/2CG	128810	1-1/2” ClogChopper	1 lb
2CG	128820	2” ClogChopper	1 lb
SOQ	440120	1 Quart Snake-Oil Classic	2 lbs
SOG	440150	1 Gallon Snake-Oil Classic	7.5 lbs

Specifications

Weight:
Weight: 30 lbs. (13.6 kg) (without cable)

Dimensions:
20” deep (w/o Guide Hose) x 11” wide x 15” high (51 cm x 28 cm x 38 cm)

Drum:
Heavy gauge stamped aluminum with inner drum to prevent cable tangling.

Capacity:
50 ft. of 1/4″ or 5/16″ cable; 35 ft. of 3/8″ cable.
All cables are left hand wound and reinforced with a wire rope center.

Power Cable Feed:
Variable Speed; Drives 1/4″, 5/16″ and 3/8″ cables.

Cutter Set:
Arrow Head, Boring Gimlet, Down Head Boring Gimlet, 1-1/4″ Side Cutter Blade,
Flexible Arrow Head Cutter

Motor:
1/5 hp, with forward-off-reverse switch, fuse protected

Foot Pedal:
Pneumatic foot pedal leaves operator’s hands free to control cable
