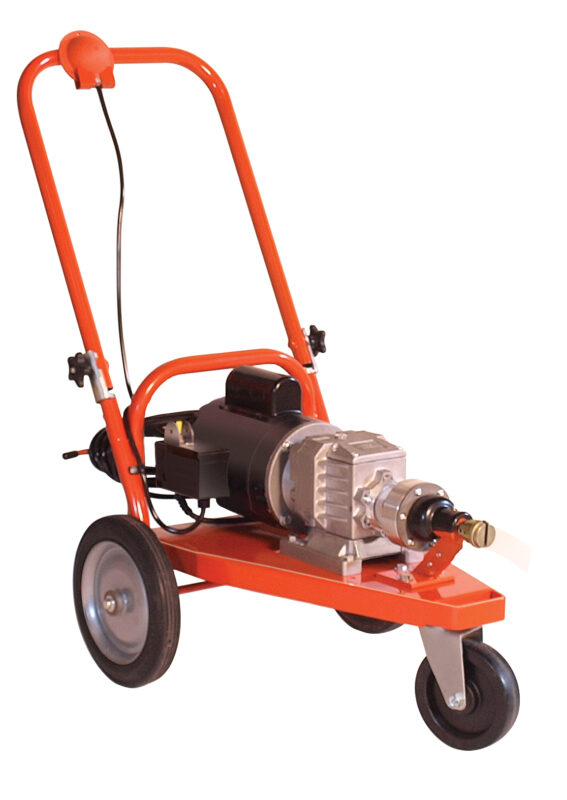

Model 88^™

You Walk While It Works

The Model 88 is almost as easy to run as a lawnmower. You push eight- or ten-foot cable sections into the line until you reach some resistance. Then attach the rear cable coupling to the machine, stand behind it, and turn it on. Watch the cable feed itself into the line. When a section has run into the drain, attach another one and keep going. This self-feeding feature also works to pull sections out of the line.

The Model 88 handles jobs up to 200 ft. long in lines from 3″ to 10″ diameter. A standard 3/4 hp capacitor motor supplies plenty of power, and an adjustable safety clutch protects cables and operator.

Sections come in two styles: all-purpose Flexichain, which has a chain center, and the stiffer Proflex, which has a spring center. A chain assures easier cable retrieving if the Flexichain spring should break. The inner spring in the Proflex gives it greater stiffness, which is desirable for long or tough jobs. The outer spring is right-hand wound for faster self-feeding.

Couplings are shown below. Both types snap together in a second and are taken apart quickly with a spanner wrench or screwdriver. With the newer “G” connector, no tension is on the locking pin when running in reverse, making it a more durable coupling.

Snap on the optional 78L-CDC adapter and you can use 6 ft. x 7/8″ cables (6L78) to clear smaller lines.

Looking for Product Resources?

Instructions Literature Parts & Diagrams Video

Features

As easy to use as a lawn mower.
Self-feeds 8 and 10 ft. cable sections as far as 200 ft. into the line.
Cables snap together in seconds.
Adjustable safety clutch protects cables and operator.

3/4 hp motor drives 3.5 to 1 gear reducer.
Pneumatic foot switch and ground fault interrupter.
Folding handle and 10″ tires for easier handling.
Built Here. Backed Here.

Automatic Safety Clutch

Protects cable and operator in case the cable should get caught in the line. Factory set at 100 inch pounds but can be adjusted easily for very heavy jobs or longer runs.

Folding Handle

Gives Model 88 a low profile for more convenient storage and transport. Lift handle and locking collars slide into place for secure operation. Handle on front frame and rear cross bar make lifting and loading into car trunk easier.

Pneumatic Power Switch

Air-actuated for safety. There is not electrical connection between switch and motor. Switch can be removed from handle and used as a foot pedal when working with the cable feeding tube.

Cable Feeding Tool

It enables cable to get around tight bends and traps by taking advantage of open-wound design of cables. Note that operator controls machine by using power switch in foot pedal mode.

Options

Cables

Sectional cables for the Model 88 snap together in a second and are taken apart quickly with a coupling wrench. The open coils screw into the line making it easier to clear long lines with less effort. They are available in a variety of lengths and connectors for General and competitive brands. With the more recently developed “G” connector, no torque is put on the locking pin when running the machine in reverse, making it a more durable coupling.

Flexichain^™ Sections

Quick-coupling 1-1/4” Flexichain sectional cables work with General’s Model 88^™ or Rodrunner^®. The heavy-gauge, right-hand wound coil enables fast self-feeding, while the chain center ensures flexibility and prevents cable loss. Available in 10 ft. lengths with “G” Connector.

Proflex^™ Sections

Proflex cables feature the same 1-1/4” outer cable as Flexichain, with an inner spring for improved torque handling and push through tough stoppages. Available in 8 or 10 ft. lengths with “L” Connector.

For smaller lines, a 6 ft. by 7/8” Proflex cable is available, requiring the 7/8” L-Cable Drive Couple.

Catalog #: 6L78 ( 7/8” Proflex cable)
Catalog #: 78L-CDC (7/8” L-Cable Drive Couple)

Snake-Oil Classic^™

A great way to extend the life of drain cleaning tools & equipment

Snake-Oil Classic^™ preserves and protects sewer cables against rust and corrosion. It’s better than common lubricants because its special rust inhibitor cuts through moisture and replaces it with a rust-resistant coating. You’ll significantly extend the life of your cables and sewer machine, including the drum, bearings and power cable feed rollers. Snake Oil Classic also includes a deodorizer to give equipment a fresh, clean smell. Available in quarts or gallons.

Snake-Oil Classic^™ SDS – Material Safety Data Sheet

ClogChopper^®

Rip through tough stoppages with the unique ClogChopper^® multi-function cutting tools. Six self-sharpening blades dig into encrusted debris and root masses, easily grinding up stoppages, scale, and crystallized urine, without risking pipe damage.

The spherical design maneuvers around tight bends and traps, thoroughly and safely cleaning metal, plastic, and clay pipes. As it spins it also self-sharpens as it scrapes along the pipe walls. It’s excellent for clearing stacks, downspouts, mains, as well as for drain lining jobs.

General offers a variety of sizes, and connector options, including sectional G connectors, as well as other brands of machines, cables, and attachments.

Rodrunner®

Flexi-Rooter®

Cutter Sets

Spear Head

Catalog #G-SHD

Starting Drill (Gets water flowing)

Hook Auger

Catalog #G-HA

For removing loose objects and broken cables

2″ U-Cutter

Catalog #G-2UC

For cutting and scraping

3″ Heavy Duty Saw Blade

Catalog #G-3HDB

For roots and other stoppages

4″ Rotary Saw Blades

Catalog #G-4RSB

For roots and other stoppages

Retrieving Tool

Catalog #G-RTR-2

For removing loose objects and broken cables

Coupling Wrench

Catalog #G-CW

To disconnect cables and cutters

Models

BOLD indicates best-selling units.

Model 88 Units – Complete and ready to Operate

Catalog #	Item #	Description	Weight
88-GP	112405	Model 88, plus ten 10GP Proflex sections with “G” connectors, and RDCS-G cutter set.	268 lbs
88-GF	112415	Model 88, plus ten 10GF Flexichain sections with “G” connectors, and RDCS-G cutter set.	248 lbs
88-8LP	112515	Model 88, plus thirteen 8LP Proflex sections (104 ft.) with “L” connectors, and RDCS-L cutter set.	277 lbs
88-LP	112505	Model 88, plus ten 10LP Proflex sections with “L” connectors, and RDCS-L cutter set.	268 lbs
88-LF	112510	Model 88, plus ten 10LF Flexichain sections with “L” connectors, and RDCS-L cutter set.	248 lbs

Cutter Set

Catalog #	Item #	Description	Weight
RDCS-G	160040	Rodrunner Cutter Set with “G” Connectors (Includes G-SHD, G-HA, G-2UC, G-3HDSC, G-3HDB, G-4RSB, G-RTR-2, G-CW)	8 lbs
RDCS-L	161040	Rodrunner Cutter Set with “L” Connectors (Includes L-SHD, L-HA, L-2UC, L-3HDSC, L-3HDB, L-4RSB, L-RTR-2, L-CW)	8 lbs

Replacement Cables

Catalog #	Item #	Description	Weight
10GF	160010	1-1/4″ x 10′ Flexichain with “G” Connectors	14 lbs
10GP	160030	1-1/4″ x 10′ Proflex with “G” Connectors	16 lbs
10LF	161010	1-1/4″ x 10′ Flexichain with “L” Connectors	14 lbs
10LP	161030	1-1/4″ x 10′ Proflex with “L” Connectors	16 lbs
8LF	161000	1-1/4″ x 8′ Flexichain with “L” Connectors	10.5 lbs
8LP	161020	1-1/4″ x 8′ Proflex with “L” Connectors	13 lbs
8LPS	159960	1-1/4″ x 8′ Proflex with extra space with “L” Connectors	9 lbs
6L78	160980	7/8″ x 6′ Proflex with “L” Connectors	4 lbs

Parts & Accessories

Catalog #	Item #	Description	Weight
CF	160340	Cable Feeding Tool	4 lbs
CC	160370	Cable Carrier	6 lbs
WCC	160380	Wheeled Cable Carrier	8 lbs
88-311-B	170583	Foot Pedal with Hose
88-311-E	136080	Power Switch Diaphragm
88-311-G	136130	Reverse Switch
GFI-20	136000	Ground Fault Circuit Interrupter with 20 ft. cord	2 lbs
LG	130410	Leather Gloves	1 lbs
G-2CG	127900	ClogChopper 1-1/4″ Sections with G-Connector	1 lbs
G-2-1/2CG	127910	ClogChopper 1-1/4″ Sections with G-Connector	1 lbs
G-3CG	127920	ClogChopper 1-1/4″ Sections with G-Connector	2 lbs
G-4CG	127930	ClogChopper 1-1/4″ Sections with G-Connector	2.5 lbs
L-2CG	127940	ClogChopper 1-1/4″ Sections with L-Connector	1 lbs
L-2-1/2CG	127950	ClogChopper 1-1/4″ Sections with L-Connector	1 lbs
L-3CG	127960	ClogChopper 1-1/4″ Sections with L-Connector	2 lbs
L-4CG	127970	ClogChopper 1-1/4″ Sections with L-Connector	2.5 lbs
SOQ	440120	1 Quart Snake-Oil Classic	2 lbs
SOG	440150	1 Gallon Snake-Oil Classic	7.5 lbs

Specifications

Weight:
80 lbs. (36 kg) without cables.

Dimensions:
21″ wide x 16″ high with handle folded down. (53 cm x 41 cm)

Motor:
3/4 hp with capacitor and 20 ft. power cord with Ground Fault Circuit Interrupter; rotates 1-1/4″
diameter cables at 500 rpm.

Gear Head:
Rugged cast iron body, ball bearings, cut gears.

Wheels:
10″ rubber rear wheels, 6″ solid rubber caster wheel.

Combination Hand or Foot Operated Power Switch:
Air activated for safety; no electrical connection between motor and switch;
can be used as hand or foot switch. Eleven foot air hose.

Power Switch:
Has an “off” position to de-activate the control switch.

Adjustable Safety Clutch:
Factory set at 18-20 ft. lbs. Protected by a tamper- resistant snap-on cover.

Folding Handle:
Reduces truck storage space. Flips down in a second but is completely secure in operating position.

Cutter Set with “G” Connectors:
Spear Head, Hook Auger, 2″ U-Cutter, 3″ Heavy Duty Side Cutter, 3″ Heavy Duty Saw Blade,
4″ Rotary Saw Blade, Large Retrieving Tool, Coupling Wrench.

Cutter Set with “L” Connectors:
Spear Head, Hook Auger, 2″ U-Cutter, 3″ Heavy Duty Side Cutter, 3″ Heavy Duty Saw Blade,
4″ Rotary Saw Blade, Large Retrieving Tool, Coupling Wrench.

Sectional Cables:
Four, Eight and ten foot “Cable Saver” sections come in all purpose Flexichain® which has a chain center, and a stiffer Proflex® which has a spring center. Proflex is also available in a heavier duty 5/8” spring center. Available with ‘G’ or ‘L’ connectors
