The toughest tools down the line.™

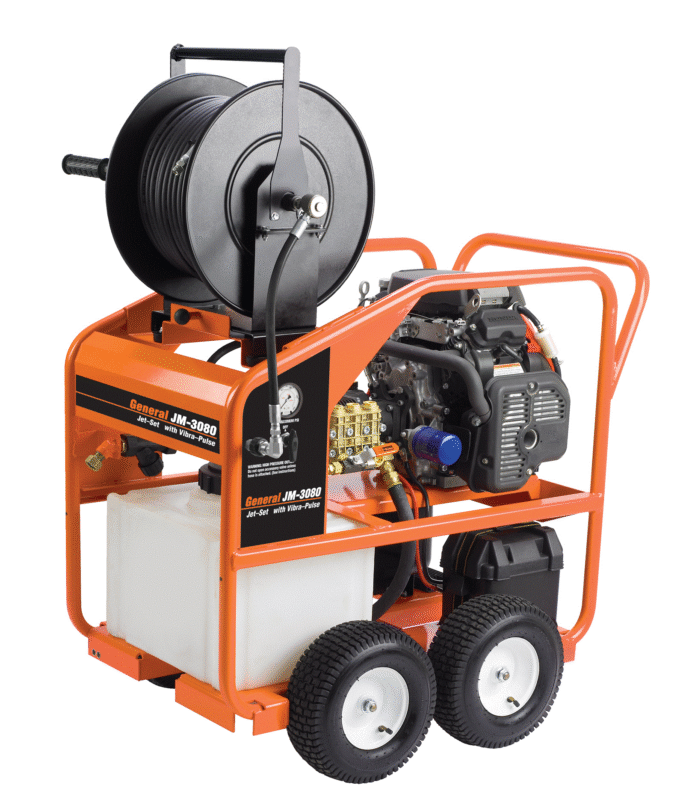

JM-3080

Get high water flow without a trailer

The JM-3080 gives you an increased cleaning power of 8 gpm without risking pump damage if your water supply can’t match the pump demand. A 12-gallon buffer tank gives you the safety margin you need when using a high-flow water jet to clear larger and more difficult lines. A 614 cc engine with electric start drives a 3000 psi pump through a 2 to 1 gear reducer. The pump features Vibra-Pulse® on-demand, to help propel the hose on long runs and around tight bends.

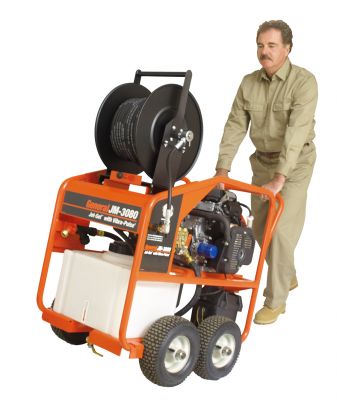

Surprisingly agile for a machine of its size, the JM-3080 sewer jetter is precisely balanced so that with little effort, the machine can be tipped back on its rear wheels to more easily maneuver it into position. A removable 300 ft. capacity hose reel with drag brake, reel lock, and swivel is mounted on a heavy-duty frame with four 13” “Flat-Free” foam core tires. A wheel brake keeps the machine solidly positioned on the job.

Standard safety features include a thermal relief valve to protect the pump from heat damage, along with a backflow check valve and inlet filter. Complete with toolbox and spray wand with trigger.

Looking for Product Resources?

Features

  • Powerful jet clears stubborn grease stoppages and ice.
  • If you want more water, you’d have to buy a trailer.
  • For large lines and long runs, 8″ dia. lines up to 600 ft. long.
  • 614 cc (20 hp) engine with low oil shut off.
  • 2 to 1 Gear reducer extends pump life.
  • Heavy-duty 3000 psi, 8 gpm pump with Vibra-Pulse®.
  • Rides on four flat-free foam core tires and heavy-duty, easily maneuverable frame.
  • 300 ft. capacity removable hose reel with reel brake.
  • Optional Cart-Reel for clearing indoor drains.
  • Built Here. Backed Here

Vibra-pulse®

This is what separates General’s Jet-Set® from ordinary pressure washers. Vibra-pulse breaks the initial tension between the surface of the hose and the walls of the pipe, thus helping the hose slide around tight bends and propels itself farther down the line.

Easy Handling

Surprisingly agile for a machine of its size, the JM-3080 is precisely balanced so that with little effort, the machine can be tipped back on its rear wheels to more easily maneuver it into position.

Accessories

Jet Nozzles

Whether you’re up against grease, sand, or ice, there’s a General nozzle that will cut through it. Some are designed for maximum penetrating power, some are designed to pressure wash the pipe walls, and some are designed to go around sharp bends. All of General’s nozzles are made of hardened stainless steel to last longer.

Jet Hose

Tough high pressure jetting hose comes in a variety of lengths and diameters. Use the 3/8″ ID hose for clean outs, 4″ through 8″ floor drains, and septic lines at distances up to 300 ft. With the 1/4″ ID hose, you can clear 2″ through 4″ lines up to 200 ft. away. And the Super-Flex 1/8″ hose has the flexibility to get through 1-1/2″ and 2″ lines and bends up to 75 ft. down the line.

Spray Wand

Get a spray wand and use your jet for high pressure washing and cleaning applications. Spray wands are made from durable components. The triggers have a light touch, yet can withstand rough usage. The wands are insulated and designed for use with a downstream soap injector. A variety of stainless steel nozzles are available. (Catalog # SWA-3080)

Options

Rotary Nozzles

Make sure you leave the lines crystal clear with General’s rotary nozzles. The JN-RB heavy duty hardened stainless steel rotary nozzles have two 90 degree jets to scour the walls of the pipe, and two 35 degree jets to drive the hose down the line.

Catalog #: JN-RB-11

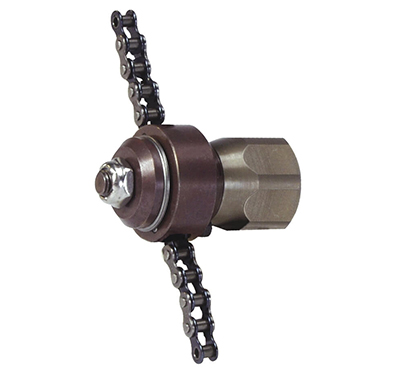

Chain Saw Nozzles

Rip through roots with the Chain Saw Nozzle. Lengths of chain can quickly and easily be switched for different diameter pipes. Spins at up to 10,000 RPM. The 3/8″ nozzle is available in 8 gpm models to clear 4″, 6″, and 8″ lines.

Catalog #: J-CSN-11

Cart-Reel

The Cart-Reel lets you use the power of gas jets in buildings and confined spaces where exhaust fumes can be dangerous. Hose sold separately.

Catalog #: CM-300

Handy-Reel with Foot Pedal

For use with any jet, the compact 200 ft. capacity Handy- Reel can be attached to a gas jet so you can use the power of the gas jet inside a building. The more compact Handy-Reel can be easily carried up to the roof to clear vents and stacks. Hose sold separately.

Catalog #: HM-200-W

Foot Pedal

The optional Foot Pedal gives you added safety. Water flows when you step on the pedal and stops when you lift your foot. Made of rugged steel components, the Foot Pedal attaches between the outlet of the pump and the inlet of the hose reel.

Catalog #: FM-1

Related Products

JM-2512 Typhoon™

JM-3055

BOLD indicates best-selling units.

JM-3080 Jet-Set® Units – Complete and Ready to Operate

Catalog  # Item # Description Weight
JM-3080-A 113360 JM-3080, plus 250JH2 (250′ x 3/8″) Hose, JN-110 Nozzle Set, and NCT Nozzle Cleaning Tool. 501 lbs
JM-3080-C 113370 JM-3080, plus 250JH2 (250′ x 3/8″) Hose, CM-300 Cart Reel with 150JH1 (150′ x 1/4″) Hose, JN-110-1 & JN-100-1 Nozzle Sets, and NCT Nozzle Cleaning Tool. 598 lbs

Nozzle Sets

Catalog # Item # Description Weight
JN-100-1 176740 1/4″ Nozzle Set for JM-3080 (Includes JN-101-1, 102-1, 104-1 JN-SL-11) 2 lbs
JN-110-1 176750 3/8″ Nozzle Set for JM-3080 (Includes JN-111-1, 112-1, 114-1, JN-SL-12) 2 lbs
JN-RB-11 176205 Deluxe 3/8″ Rotary Nozzle for JM-3080 1 lb
J-CSN-11 180490 Chain Saw Nozzle for JM-3055 1 lb

Replacement Hoses

Catalog # Item # Description Weight
150JH1 176053 150′ x 1/4″ ID w/NPT Male Fittings 10 lbs
200JH2 176020 200′ x 3/8″ ID w/NPT Male Fittings 19 lbs
250JH2 176018 250′ x 3/8″ ID w/NPT Male Fittings 24 lbs
 300JH2 176015 300′ x 3/8″ ID w/NPT Male Fittings 30 lbs

Jet Accessories

Catalog # Item # Description Weight
NCT 176340 Nozzle Cleaning Tool 1 lb
SWA-3080 176285 Spray Wand Assembly for JM-3080 20 lbs
FM-1 113190 Foot Pedal Safety Shut-Off Valve 6 lbs
HM-200-W 113160 HandyReel with Foot Pedal (Hose not included) 55 lbs
CM-300 113170 Cart Reel 2 Wheel Cart (Hose not included) 80 lbs

Pump:
Triplex w/Vibra-pulse®

Pressure:
3000 psi

Flow:
8 gpm

Engine:
614 cc w/Low oil shut off, electric start, and gear reducer

Hose Reel:
Removable, swivel, drag brake, and reel lock, 300 ft. x 3/8” hose capacity

Weight:
375 lbs. (170 kg)

Dimensions:
43” L x 29” W x 56” H (109 cm x 74 cm x 142 cm)
