Hot Spot® Transmitter

Where to Buy

5 Watts - 4 Frequencies

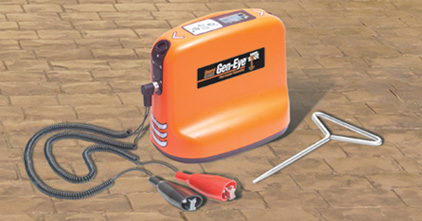

Locating buried utilities used to be tough. Not anymore! With the powerful 5 watt Hot Spot Transmitter, location is easier than ever. More power means more signal to locate. Choose one of 4 frequencies – 1KHz, 8KHz, 33KHz or 65KHz. You can select the frequency and power that best suits your application.

Locate via direct connection using the cords and ground stake. Simply attach the transmitter leads to both ends of the pipe, or if the other end of the pipe is not accessible, use the ground stake to complete the circuit. Or place the transmitter over the pipe and use induction mode, or place the optional clamp around the pipe to energize the line.

Looking for Product Resources?

Instructions Literature Video

Features

The Hot-Spot transmitter’s LCD display shows connectivity, line resistance, power output, frequency, and battery level for efficient transmission and stronger signals. Paired with the Hot-Spot pipe locator, it quickly locates buried utilities with ease. This simple, effective system makes pipe and utility locating faster and more productive, boosting profitability.

Hot Spot pipe locator makes locating easier than ever. It’s on-screen icons lead you right to your target, without the long learning curve.

Utility Icon indicates buried utilities or active lower lines. Circle the energized pipe or active power line until the diamond appears on the screen.

Hot Spot LCD graphic display with auto backlight lets you keep track of everything from battery level to connectivity and line resistance to make your locating job easier.



  • More Power
    Powerful 5-Watt output with 5 output levels makes locating utilities easier.
  • Expanded Frequencies
    Locates four line frequencies – 1KHz, 8KHz, 33KHz and 65KHz (65KHz at 1 watt max).
  • Simple, Menu-based User Interface
    No need for multiple screens. Easy-to-access menus make it easier to use than other models.



  • Easy-to-read Display
    Icons indicate a quality connection and power settings. Auto backlight lets you locate in dimly lit areas.
  • Superior Battery Life
    Lasts approximately 100+ hours – more than twice as long as other brands. Automatic shutdown feature saves power.
  • Built Here. Backed Here

Related Products

Gen-Eye® Hot-Spot Pipe Locator

Gen-Eye X-POD Plus®
BOLD indicates best-selling units.

Hot Spot – 5 Watt Transmitter

Catalog # Item # Description Weight
GL-100 185680 Gen-Eye Hot Spot Locator w/Padded Bag 5 lbs
GL-175 185670 Five-Watt Gen-Eye Hot Spot Transmitter 8 lbs
GL-185 185740 Gen-Eye Hot Spot Locator/Five-Watt Hot Spot Transmitter Combination 14 lbs

Line/Utility Frequencies:
1KHz, 8KHz, 33KHz, 65KHz

Output:
5 Watts with 5 output settings

Weight:
8 lbs./3.5 Kg

Batteries:
10 D-cell alkaline (Approximately 100+ hours of life)

External Ports:
Mini USB

Dimensions:
10” H x 12” L x 8” W (25.4 cm x 30.5 cm x 19 cm)

Operating Temperature Range:
-4° F to 122° F (-20° C to 50° C)

BOLD indicates best-selling units.

Hot Spot – 5 Watt Transmitter

Catalog # Item # Description Weight
GL-100 185680 Gen-Eye Hot Spot Locator w/Padded Bag 5 lbs
GL-175 185670 Five-Watt Gen-Eye Hot Spot Transmitter 8 lbs
GL-185 185740 Gen-Eye Hot Spot Locator/Five-Watt Hot Spot Transmitter Combination 14 lbs

Line/Utility Frequencies:
1KHz, 8KHz, 33KHz, 65KHz

Output:
5 Watts with 5 output settings

Weight:
8 lbs./3.5 Kg

Batteries:
10 D-cell alkaline (Approximately 100+ hours of life)

External Ports:
Mini USB

Dimensions:
10” H x 12” L x 8” W (25.4 cm x 30.5 cm x 19 cm)

Operating Temperature Range:
-4° F to 122° F (-20° C to 50° C)
