Gen-Eye POD®, Pipe Inspection Camera - General Pipe Cleaners

A demonstration of the Wi-Fi functionality on the Gen-Eye POD

Always easy on your back and your budget, General’s versatile Gen-Eye POD® and Mini-POD® pipe inspection cameras now feature Wi-Fi inside. Wi-Fi lets you use your own tablet or smartphone to record the inspection and send it to your customers on the spot or back at the shop.

The lightweight, compact Gen-Eye POD combines camera, reel and monitor in an all-in-one package. You get a large 7” LCD color monitor in a padded case mounted on a flexible gooseneck that swivels to give you the best viewing angle, wherever you’re working.

The Reel Cover protects work sites from dripping push-rods. The heavy-duty, 600 denier poly canvas cover fits snugly around the full size reel. Securely affixed with Velcro tabs – and easily removed to hose off push-rod between jobs.

There’s lots more, like an LED Dimmer Control, both AC and DC power cords, 2″ and 3” Trap Skids, and a 512 Hz transmitter. A video out connection lets you record on an external device.

Just grab it and go!

Features

GEN-EYE MINI POD®

  • Integral camera system – camera, reel, monitor in an all-in-one package.
  • 7” LCD color monitor mounted on a gooseneck for easier viewing.
  • Self-leveling color mini-camera offers crisp, clear picture in small drain lines.
  • Mini-reel carries 125 ft. or 175 ft. push-rod to inspect 2” to 3” lines.
  • Rugged frame can be operated vertically or horizontally.
  • Includes LED dimmer control, and AC/DC power cords.

GEN-EYE POD®

  • Integral camera system – camera, reel, monitor in an all-in-one package.
  • 7” LCD color monitor mounted on a gooseneck for easier viewing.
  • Self-leveling color camera automatically keeps the picture right side up.
  • Full size reel carries 200 ft. Gel-Rod® to inspect 3” to 10” lines.
  • Rugged frame can be operated vertically or horizontally.
  • Includes LED dimmer control, and AC/DC power cords.
  • Video connection to record on external device.
  • Wi-Fi sends video to smartphone or tablet to record and send to customers.
  • 512 Hz Transmitter for easy camera location.

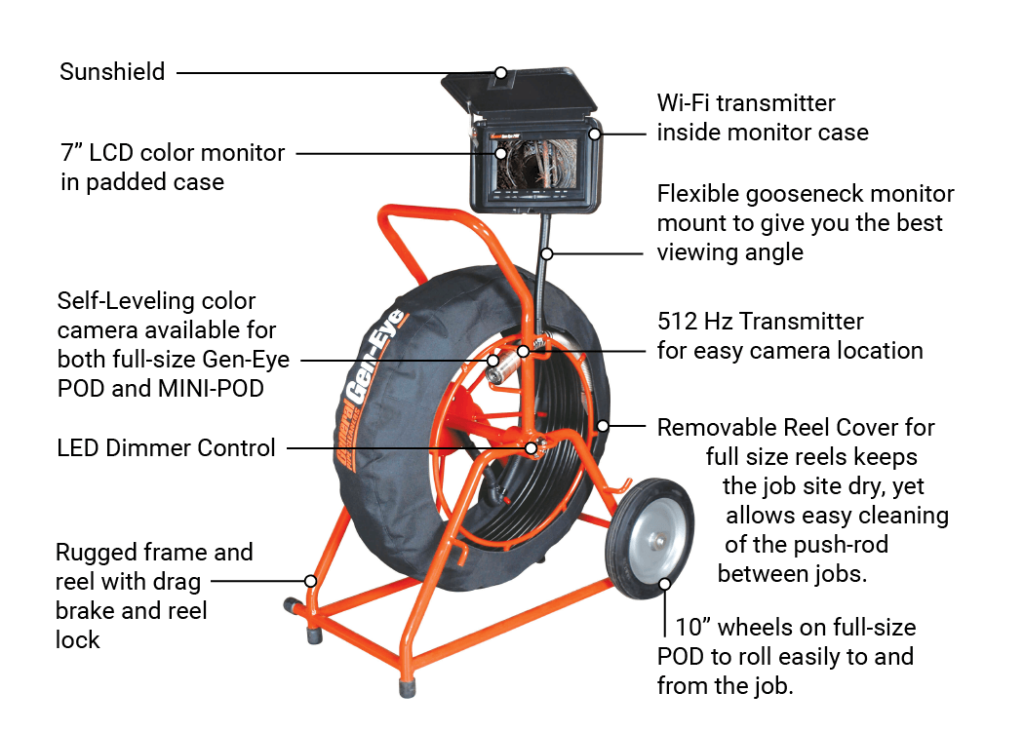

Diagram showing features of Gen-Eye POD: Sunshield, 7-inch LCD color monitor in padded case, Self-leveling color camera available for bot full-size Gen-Eye POD and MINI-POD, LED Dimmer Control, Rugged frame and reel with drag brake and reel lock, Wi-Fi transmitter inside monitor case, Flexible, gooseneck monitor mount to give you the best viewing angle, 512 Hz Transmitter for easy camera location, Removable reel cover for full-size reels keeps the job site dry, yet allows easy cleaning of the push-rod between jobs, 10" wheels on full-size POD to roll easily to and from the job

Advanced Skid Designs

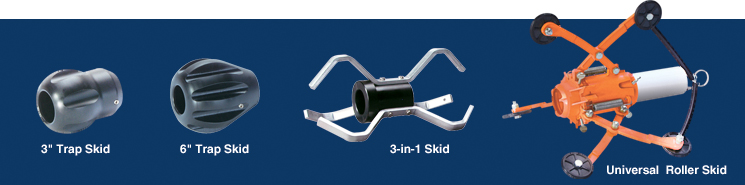

Skids keep the camera centered in the pipe for a better view, while reducing drag on longer runs. Standard systems include both 2″, 3″ and 6″ trap skids that protect the camera from abrasion as it slides through cast iron traps. Optional 3-in-1 skid set for 4″, 6″ and 8″ lines, and Universal Roller Skid for 6″ to 12″ lines are also available.

Gen-Eye POD

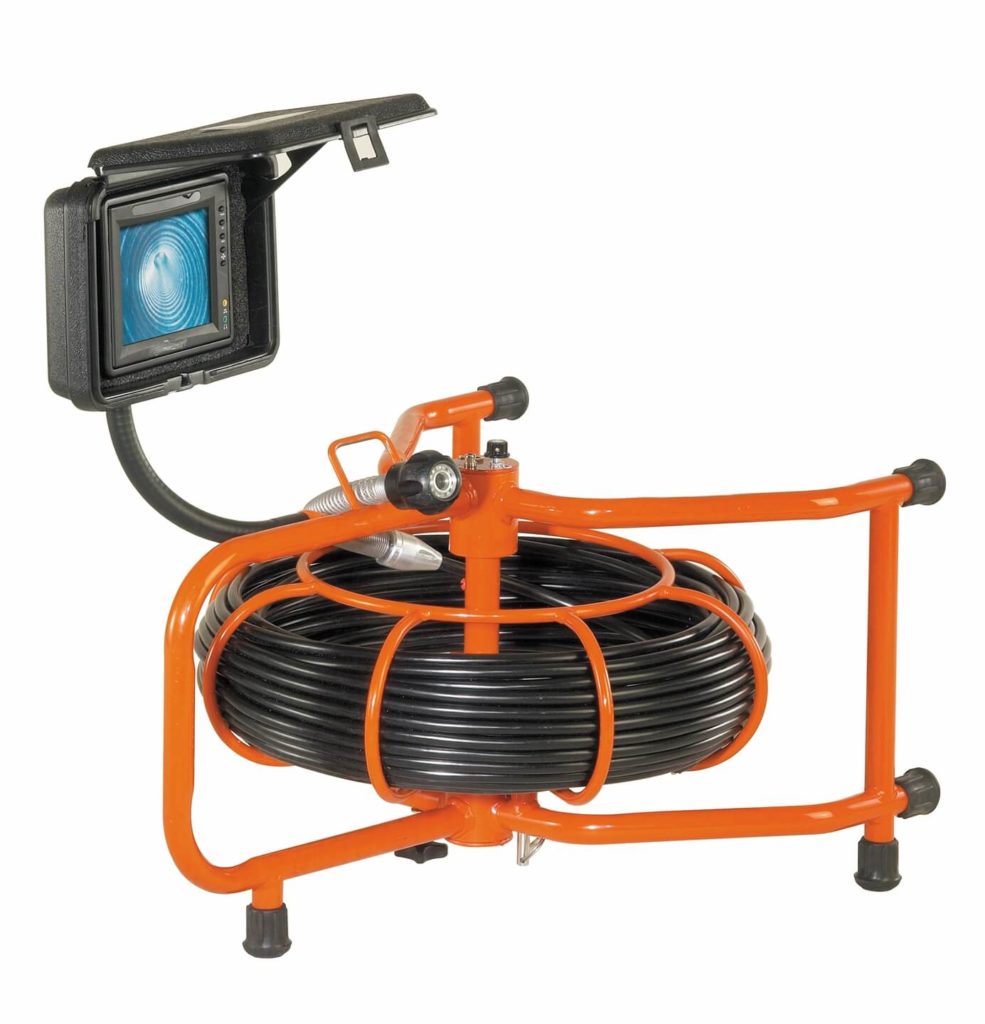

The Gen-Eye POD’s tough steel frame can be operated vertically or horizontally, so you can handle nearly any application.

Gen-Eye POD

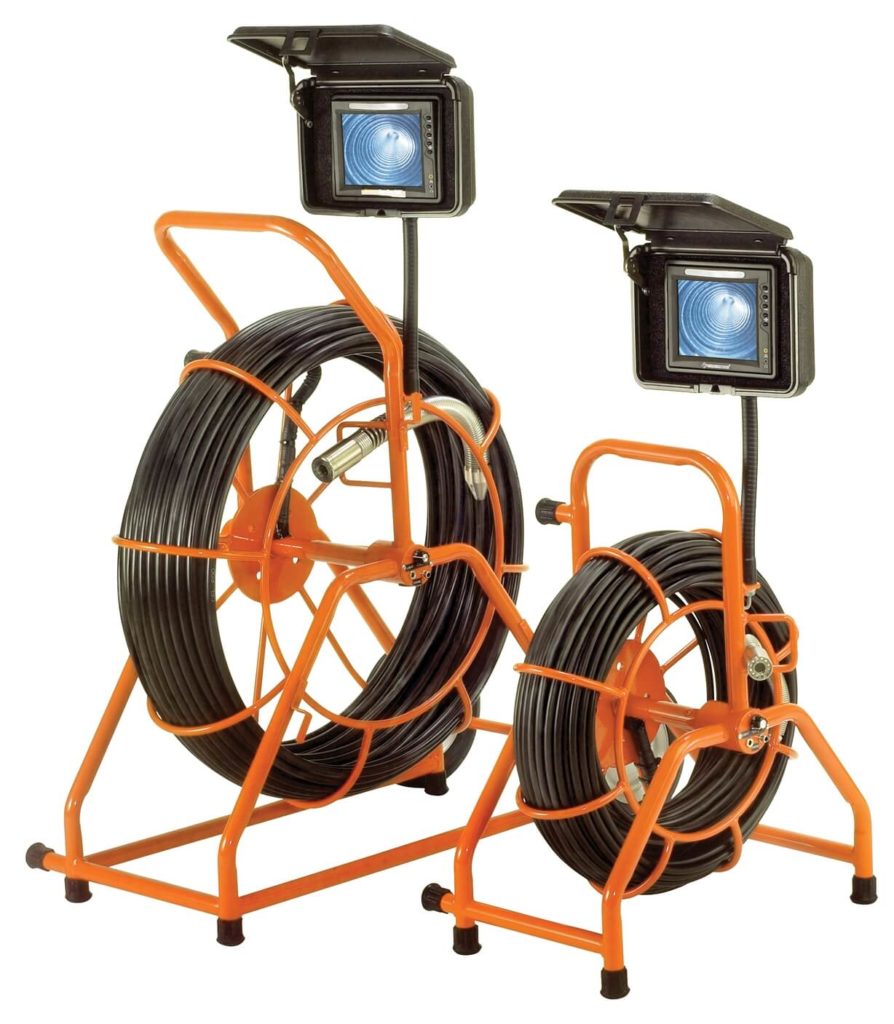

The full size Gen-Eye POD features a color self-leveling camera and 200 ft. of Gel-Rod® for trouble-shooting 3” to 10” drain lines. The compact MINI-POD carries 125 ft. or 175 ft. of push-rod and color self-leveling mini-camera for inspecting 2” to 3” drain lines.

  • Wi-Fi Transmitter
    Wi-Fi lets you use your own tablet or smartphone to record the inspection and send it to your customers on the spot or back at the shop.

  • Self-Leveling Color Camera
    Automatically keeps the picture right side up as the camera glides through the line. Just 1.625” in diameter with 16 Bright-White LED’s to illuminate up to 10” lines.
  • Mini Self-Leveling Color Camera
    Mini Self-Leveling camera is just 1.125” in diameter with 4 Super Bright LEDs to light up 2” to 3” lines with 15% more candle power than other models.

  • AC/DC Power Cords
    Allows you to operate in the field with truck power alone.
  • Flexibility, Strength, Durability
    A tough, Gel-Rod push rod protects against moisture damage if the rod is cut or abraded. Its Kevlar® braid, fiberglass core, and durable sheath provide for maximum pushing and pulling power.
  • Big Capacity Reels
    The standard reel holds 200 ft. of push rod on a sturdy frame and takes up little space in your truck. Eight-inch wheels ensure easy transport to and from the job. The mini reel carries 125 ft. or 175 ft. of push rod in a compact frame for easy handling without taking up too much room in your truck.
  • Removable Reel Cover
    Protects job sites from dripping push-rods. Heavy-duty, 600 denier poly canvas cover fits snugly around the full size reel. Securely affixed with Velcro tabs – and easily removed to hose off push-rod between jobs
  • Other features include
    Integral 512 Hz transmitter, dimmer control, 2, 3, & 6″ trap skids, and AC and DC power cords in accessory pouch.

Buy Now

Gen-Eye POD with Wi-Fi - For 3" to 10" Lines

Item # Catalog # Description Weight
117830 SL-GPW-E

Gen-Eye POD with Wi-Fi, 200 ft. Gel-Rod, Self-Leveling Color Camera, Open Reel, and 2″, 3″ & 6″ Trap Skids.

67 lbs
WHERE TO BUY
117840 SL-GPW-F-2

Gen-Eye POD with Wi-Fi, 200 ft. Gel-Rod, Self-Leveling Color Camera, Open Reel, and 2″, 3″ & 6″ Trap Skids, plus Hot Spot Locator with Padded Bag.

84 lbs
WHERE TO BUY

Gen-Eye MINI-POD with Wi-Fi - For 2" to 3" Lines

Item # Catalog # Description Weight
117880 SL-GPW-A

Gen-Eye MINI-POD with Wi-Fi, 125 ft. Mini Gel-Rod, Mini Self-Leveling Color Camera, Open Mini-Reel, and 3″ Trap Skid.

35 lbs
WHERE TO BUY
117885 SL-GPW-B-2

Gen-Eye MINI-POD with Wi-Fi, 125 ft. Mini Gel-Rod, Mini Self-Leveling Color Camera, Open Mini-Reel, and 3″ Trap Skid plus Hot Spot Locator with Padded.

94 lbs
WHERE TO BUY
117890 SL-GPW-C

Gen-Eye MINI-POD with Wi-Fi, 175 ft. Mini Gel-Rod, Mini Self-Leveling Color Camera, Open Mini-Reel, and 3″ Trap Skid.

38 lbs
WHERE TO BUY
117895 SL-GPW-D-2

Gen-Eye MINI-POD with Wi-Fi, 175 ft. Mini Gel-Rod, Mini Self-Leveling Color Camera, Open Mini-Reel, and 3″ Trap Skid plus Hot Spot Locator with Padded.

98 lbs
WHERE TO BUY

Specifications

Gen-Eye POD with Wi-Fi Specifications

Line Capacity:
Large Reel – 3” to 10”
Small Reel – 2” to 3”

Reel Capacity:
Large Reel – 200 ft.
Small Reel – 125 ft. or 175 ft.

Sensitivity:
Color Self-Leveling – 0.5 Lux
Standard Color – 0.5 Lux
Mini Self-Leveling – 0.008 Lux
Mini Color – 0.5 Lux

Lighting:
Color Self-Leveling – 16 White LED’s (88K MCD)
Standard Color – 16 White LED’s (88K MCD)
Mini Self-Leveling – 4 Super Bright White LED’s (78K MCD)
Mini Color – 12 White LED’s (68K MCD)

White Balance:
Auto High Speed

Camera Dimensions:
Color Self-Leveling – 1.625” Dia. X 2.7” Long
Standard Color – 1.625” Dia x 2.2” Long
Mini Self-Leveling – 1.125” Dia. X 1.74” Long
Mini Color – 1.125” Dia. X 1.625” Long

LCD Monitor Size:
7”

Push-Rod Diameter:
Large Reel – .475” Gel-Rod®
Small Reel – .400” Gel-Rod®

Reel Dimensions:
Large Reel – 29” L x 16” W x 33-1/2” H
Small Reel – 18” L x 16” W x 19” H

Video Format:
NTSC or PAL

Recording Device:
Wi-Fi to Tablet or Smartphone

Power:
110v/60 Hz AC, 12 VDC

Operating Temperature:
14° F to 122° F (-10° C to 50° C)
