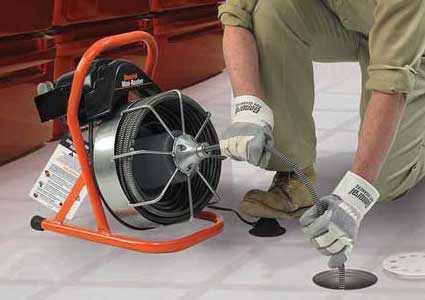

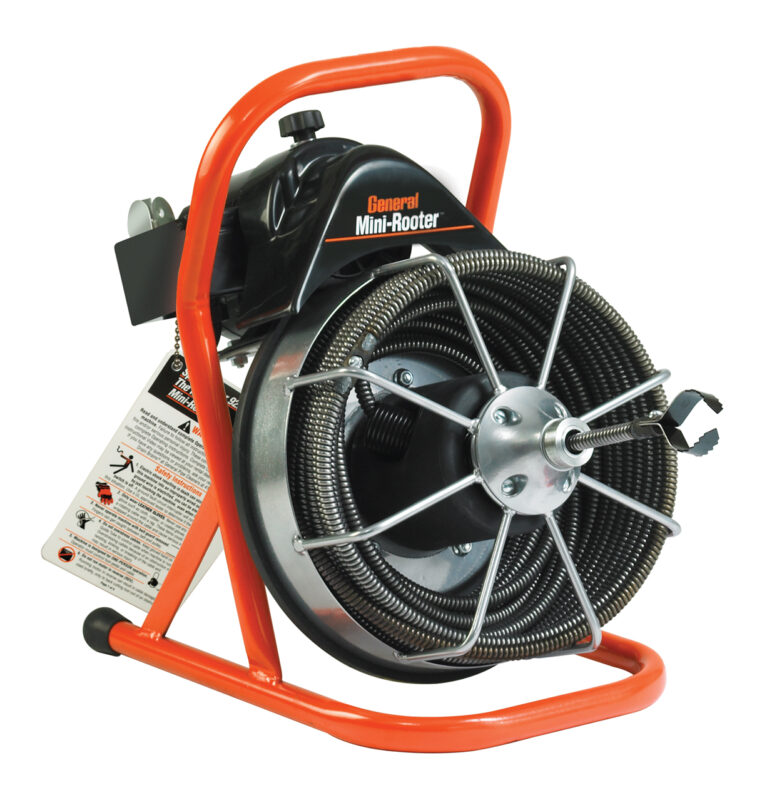

Mini-Rooter® - General Pipe Cleaners

The Mini-Rooter clears lines from rooftop to basement, including kitchen, bath and laundry. With 50 ft. of 1/2″ cable, it weighs just 60 lbs.

This inexpensive, easy-to-use machine has lots of time saving features. For instance, you can remove the cage in seconds for more portability or to switch to a different cable diameter – with no mess or lost time. Safety features include an air foot switch, ground fault circuit interrupter, and a safety slip clutch. An integral inner drum and distributor tube spring help prevent cable tangling under load.

Features

  • Clears 1-1/4″ to 3″ lines and most 4″ lines.
  • Holds 75 ft. of 3/8″ or 50 ft. of 1/2″ Flexicore®
  • Open cage removes in seconds for more portability.
  • Safety slip clutch protects cable and operator.
  • Optional Power Cable Feed drives and retrieves cable.
  • Optional J-Drum holds 50 ft. of 1/4″ or 5/16″ cables.
  • 1/3 hp motor with momentary contact reverse switch and pneumatic foot pedal.
  • Optional dolly snaps on frame.
  • Made in U.S.A.

Removable Drum

You can take the drum off the Mini-Rooter in seconds.

Reverse Switch

A momentary contact reverse switch protects the cable by preventing the operator from running the machine in reverse for more than a few seconds at a time.

Safety Slip Clutch

Reduces chance of cable tangling or injury to the operator. Allows V-belt to slip through pulley until torque is reduced.

Flexicore® Patent Nos.
2,244,735 and 2,849,870



Flexicore® Cable

Heavy gauge wire is coiled around 49 strand wire rope and then heat treated. This cable has unequalled strength and the right amount of flexibility. It’s so tough, it has a one year warranty against defect or breakage.

Les options

Mini-Rooter Dolly

This light weight but sturdy dolly is designed especially for the Mini-Rooter. It slips on or off in less than minute and holds the machine securely.
(Catalog Number MR-W)

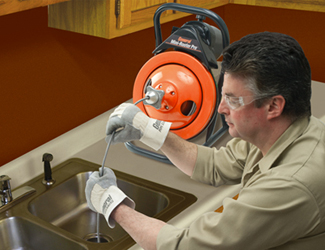

J-Drum

With a J-Drum (optional), you’re ready for small drain work in seconds. Equipped with a collect chuck with tightening handle. Will hold any Super-Vee cable. (Catalog Number MR-250)

Cutter Set

AH

Arrow Head
Starting Drill
(Gets water flowing)

1-1/2UC

1-1/2” U-Cutter
For cutting and scraping

2SCB

2” Side Cutter Blades
For cutting and scraping

BG

Boring Gimlet
For removing loose objects

Acheter maintenant

Les caractères GRAS indiquent les appareils qui se vendent plus.
Mini-Rooter Units for the Rental Indusry - Complete and ready to Operate

N° d’article N° de référence Description Poids
111380 MR-C-O

Mini-Rooter with 50EM3 (50 ft. x 1/2”) Cable, and MRCS Cutter Set

75 lbs
WHERE TO BUY

Cutter Set

N° d’article N° de référence Description Poids
130050 MRCS

Mini-Rooter Cutter Set (Includes Arrow Head, 1-1/2″ U-Cutter, 2″ Side Cutter Blade, Boring Gimlet)

0.5 lbs
WHERE TO BUY

Replacement Cables

N° d’article N° de référence Description Poids
121030 50EM2

Flexicore Cable, 3/8″ x 50 ft. with Male & Female Connectors

18 lbs
WHERE TO BUY
121040 75EM2

Flexicore Cable, 3/8″ x 75 ft. with Male & Female Connectors

25 lbs
WHERE TO BUY
121070 50EM3

Flexicore Cable, 1/2″ x 50 ft. with Male & Female Connectors

26 lbs
WHERE TO BUY
121080 75EM3

Flexicore Cable, 1/2″ x 75 ft. with Male & Female Connectors

43 lbs
WHERE TO BUY

Parts & Accessoires

N° d’article N° de référence Description Poids
167330 MR-200-O

Mini-Rooter Drum

8 lbs
WHERE TO BUY
136070 MR-308-B

Foot Pedal with Hose

WHERE TO BUY
136080 MR-308-E

Power Switch Diaphragm

WHERE TO BUY
136210 MR-308-G-R

Reverse Switch

WHERE TO BUY
136010 GFI-10

Ground Fault Circuit Interrupter with 10 ft. cord

2 lbs
WHERE TO BUY
136180 MR-303-1

Safety Clutch

1 lb
WHERE TO BUY
130410 LG

Leather Gloves

1 lb
WHERE TO BUY

Specifications

Weight:
67 lbs. without cable.

Capacity:
75 ft. of 3/8″ or 1/2″ Flexicore Cable.

Motor:
1/3 hp heavy duty, thermal overload protection, Forward/Off/Momentary Contact Reverse Switch.

Safety Slip Clutch:
Instructional Video included.

Flexicore Cable:
Heavy gauge wire coiled tightly around 49 strand aircraft-type wire rope and heat treated.

Foot Pedal:
Uses air pressure, so there’s no electrical contact between pedal and motor.

Power Cord:
10 ft., 3 wire; equipped with ground fault circuit interrupter

Cutter Set:
Arrow head, 1 1/2″ U-Cutter, 2″ Side Cutters and Boring Gimlet. Others available.

Leather Gloves:
With reinforced palm for hand protection.

Instructional Video included.
